Product Details:
|
| Name: | 2 Row 32 Way Distribution Box | Material: | Metal +plastic |
|---|---|---|---|
| Door: | HIPS/fireproof PC | Mounting Type: | Conceal Mounted |
| Feature: | Stable And Durable | Protection Level: | IP40 |
| Current: | 55A | Parts: | Din Rail And Brass Terminal |
| Certification: | CE | Application: | Indoor Light Distribution |
| High Light: | 32 Way Electrical MCB Distribution Box,Wall Mount Enclosure MCB Distribution Box,Din Rail Electrical MCB Box |
||

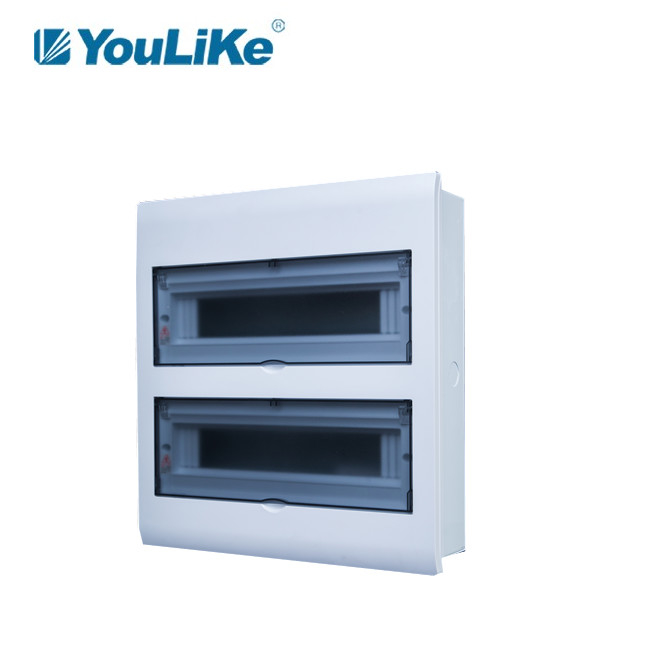

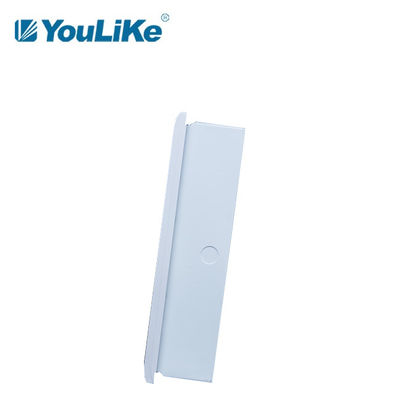

Wall Mount Enclosure 32 Way Electrical Distribution Box With Din Rail For MCB
Product Feature
1. Box to be available for powder coated steel, with 1.0mm thickness.
2. Cover frame to be available for HIPS material.
3. Door to be available for HIPS material( color white).
4. All plastic parts are without specific flame retardant and qualified to pass incandescent wire test at 650℃.
5. Pastic can be customized to flame retardant (grade V1~V0 depends on material choosed).
6. Protection level reaches IP40.
7. It is used for indoor power distribution mainly for lighting control for residential and commercial buildings.
8. Din rail to be galvanized steel, with horizontal & vertical adjustment funtion.
9. Brass terminals (1pcs earthing & 1pcs neutral) is with 57.5% composition.
10. Stainless earthing bolts with warning label.
11.Reinforced structure design to allow higher tensile strength of plastic cover.
Product Parameters
| Model | RBP-A-232 |
| Ways | 32 way |
| Base Box Size | 354*380*90*1.0mm |
| Cover Size | 378*405*18.5(27) |
| Carton Size | 460*135*420mm |
| Qty | 1 pc |
| Approval | CE CCC |
| Installation Type | flush type |
| Warranty | 2 years |
| Package | in color box or neutral carton |
| OEM | accept |
Quality Assurance
1. Official quality assurance,two-year warranty.
2. The plate thickness meets the national standard without error.
3. The materials used in the product are all new and high-quality materials,and there are no waste recycled materials.
4. The product has China Compulsory Product Certification number and meets the national CCC certification standard.
