Product Details:
|
| Product Name: | Surface Mounted Electrical Distribution Board | Color: | White |
|---|---|---|---|
| Box Material: | 1.0mm Powder Coated Steel | Terminal Dimension: | 6x10mm/6.4x12mm |
| Way Dimension: | 18mm | Mounting Type: | Surface Mounted |
| Cover Frame Material: | ABS | Door Material: | ABS/PC |
| High Light: | industrial mini circuit breaker box,40 way mini circuit breaker box,Mini 40 way distribution board |
||

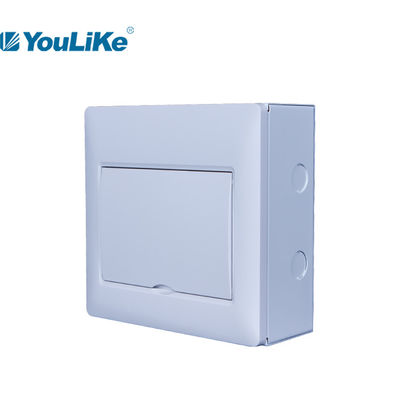

Plastic Mini Circuit Breaker Protection Level 40 Distribution Box Industrial Distribution Board
Product Feature
1. Box material: powder coated steel
2. Cover frame material: ABS
3. Door material: ABS+PC (transparent door and white door )
4. All plastic parts : without specific flame retardant
5. Pastic can be customized to flame retardant (grade V1~V0 depends on material choosed).
Application
BE series is used for indoor power distribution mainly for lighting control for residential and commercial buildings.
1. Din rail to be galvanized steel, with horizontal & vertical adjustment funtion.
2. Brass terminals (1pcs earthing & 1pcs neutral) is with 57.5% composition.
3. Stainless earthing bolts with warning label.
4. Reinforced structure design to allow higher tensile strength of plastic cover.
5. Metal metal spring plate to provide extra service life of plastic hinges.
Safety Qualification Elements
1. Copper bar:smooth conduction, safe and reliable.
2. Wiring :wiring specification, standard safety.
3. Grounding:stainless steel, safe and reliable.
4. Raw materials:brand new plastic, durable and beautiful.
5. Movable door :not falling off, safe and beautiful
.
Specifications of BE series, Surface
| Model | Way | Cover size | Box size |
Terminals |
Knockouts | ||
| L*H*T (mm) | L*W*D*T(mm) | size(mm) | PE | N | one side qty | ||
| BEP-M 104 | 4way | 168×164×16.5(22.0) | 168×164×80×1.0 | 6*10 | 4 | 5 | 2 |
| BEP-M 107 | 7way | 222×214×18.5(24.0) | 221×213×80×1.0 | 6*10 | 7 | 6 | |
| BEP-M 110 | 10way | 276×214×18.5(24.0) | 275×213×80×1.0 | 6*10 | 8 | 7 | 7 |
| BEP-M 112 | 12way | 312×214×18.5(24.0) | 311×213×80×1.0 | 6*10 | 8 | 9 | 8 |
| BEP-M 114 | 14way | 348×214×18.5(24.0) | 347×213×80×1.0 | 6*10 | 11 | 10 | 9 |
| BEP-M 116 | 16way | 384×214×18.5(24.0) | 383×213×80×1.0 | 6*10 | 11 | 10 | 9 |
| BEP-M 118 | 18way | 420×214×18.5(24.0) | 419×213×80×1.0 | 6*10 | 13 | 12 | 10 |
| BEP-M 120 | 20way | 456×214×18.5(24.0) | 455×213×80×1.0 | 6*10 | 13 | 12 | 12 |
| BEP-M 228 | 28way | 351×381×19(26.5) | 350×380×95×1.2 | 6.4*12 | 16 | 15 | 9 |
| BEP-M 240 | 40way | 459×381×19(26.5) | 458×380×95×1.2 | 6.4*12 | 18 | 17 | 12 |

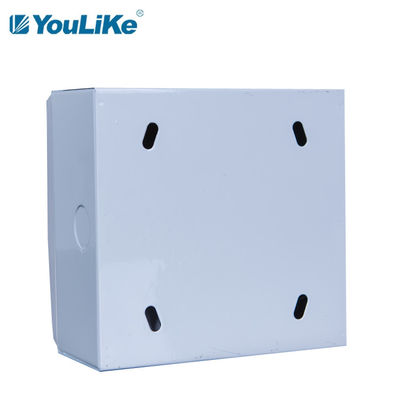

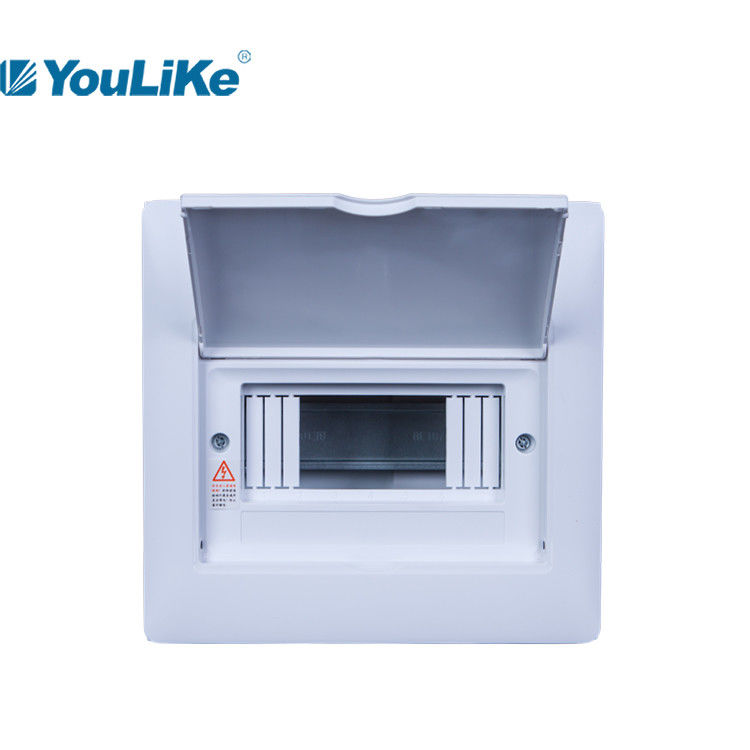

Product Details Demonstration
Packing
| Model | Carton size | Volume/ctn | Pcs/ctn | Calculated weight(kgs/ctn) | |
| mm | m³ | net weight | gross weight | ||
| BEP-M 104 | 525*215*355 | 0.0401 | 10 | 9.58 | |
| BEP-M 107 | 525*290*455 | 0.0693 | 10 | 14.66 | |
| BEP-M 110 | 525*345*455 | 0.0825 | 10 | 17.10 | |
| BEP-M 112 | 525*235*405 | 0.0450 | 5 | 9.25 | |
| BEP-M 114 | 525*235*440 | 0.0543 | 5 | 10.20 | |
| BEP-M 116 | 525*235*495 | 0.0611 | 5 | 11.65 | |
| BEP-M 118 | 545*240*280 | 0.0367 | 2 | 6.70 | |
| BEP-M 120 | 460*135*385 | 0.0239 | 1 | 3.60 | |
| BEP-M 228 | 455*160*425 | 0.0310 | 1 | 4.05 | |
| BEP-M 240 | 510*160*460 | 0.0376 | 1 | 4.75 | |
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no additional charge.
Attention Points
1. When the bottom box is embedded with concrete and poured on site, the bottom box needs to be supported up and down, left and right to prevent the bottom box from deformation.
2. During the installation of the upper wall of the bottom box, it is forbidden to block the threaded hole on the right plate with cement mortar.
3. The maximum bearing torque of the grounding screw on the bottom box is 20n. m.
4. It is recommended to install the support panel after the wall is puttying.
