Product Details:
|
| Product Name: | Surface Mounted Electrical Distribution Board | Ingress Protection: | IP40 |
|---|---|---|---|
| Box Material: | 1.0mm Powder Coated Steel | Terminal Dimension: | 6x10mm/6.4x12mm |
| Cover Frame Material: | ABS | Door Material: | ABS/PC |
| Rated Frequency: | 50-60HZ | ||
| High Light: | 14 way MCB Distribution Box,Open Installation MCB Distribution Box,surface mounted mcb box 14 way |
||

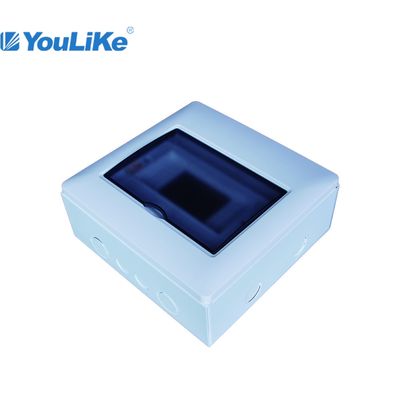

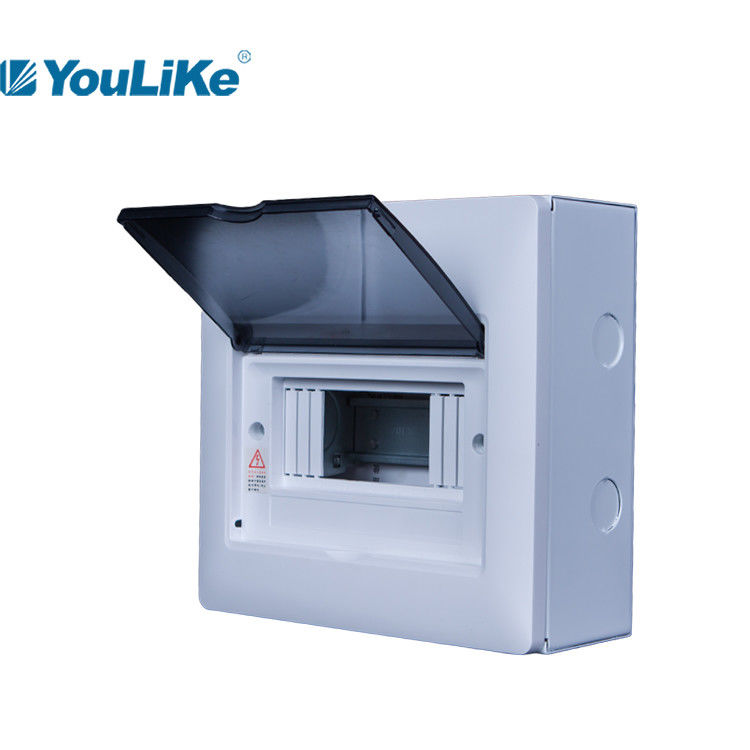

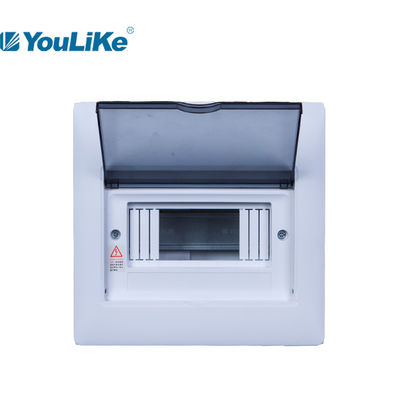

Protection Level 40 Open Installation White Powder Coating Power Distribution Board
Application
BE series is used for indoor power distribution mainly for lighting control for residential and commercial buildings.
1. Din rail to be galvanized steel, with horizontal & vertical adjustment funtion.
2. Brass terminals (1pcs earthing & 1pcs neutral) is with 57.5% composition.
3. Stainless earthing bolts with warning label.
4. Reinforced structure design to allow higher tensile strength of plastic cover.
5. Metal metal spring plate to provide extra service life of plastic hinges.
Attention Points
1. When the bottom box is embedded with concrete and poured on site, the bottom box needs to be supported up and down, left and right to prevent the bottom box from deformation.
2. During the installation of the upper wall of the bottom box, it is forbidden to block the threaded hole on the right plate with cement mortar.
3. The maximum bearing torque of the grounding screw on the bottom box is 20n. m.
4. It is recommended to install the support panel after the wall is puttying.
Quality Assurance
1. Official quality assurance,two-year warranty.
2. The plate thickness meets the national standard without error.
3. The materials used in the product are all new and high-quality materials,and there are no waste recycled materials.
4. The product has China Compulsory Product Certification number and meets the national CCC certification standard.
Specifications of BE series, Surface
| Model | Way | Cover size | Box size |
Terminals |
Knockouts | ||
| L*H*T (mm) | L*W*D*T(mm) | size(mm) | PE | N | one side qty | ||
| BEP-M 104 | 4way | 168×164×16.5(22.0) | 168×164×80×1.0 | 6*10 | 4 | 5 | 2 |
| BEP-M 107 | 7way | 222×214×18.5(24.0) | 221×213×80×1.0 | 6*10 | 7 | 6 | |
| BEP-M 110 | 10way | 276×214×18.5(24.0) | 275×213×80×1.0 | 6*10 | 8 | 7 | 7 |
| BEP-M 112 | 12way | 312×214×18.5(24.0) | 311×213×80×1.0 | 6*10 | 8 | 9 | 8 |
| BEP-M 114 | 14way | 348×214×18.5(24.0) | 347×213×80×1.0 | 6*10 | 11 | 10 | 9 |
| BEP-M 116 | 16way | 384×214×18.5(24.0) | 383×213×80×1.0 | 6*10 | 11 | 10 | 9 |
| BEP-M 118 | 18way | 420×214×18.5(24.0) | 419×213×80×1.0 | 6*10 | 13 | 12 | 10 |
| BEP-M 120 | 20way | 456×214×18.5(24.0) | 455×213×80×1.0 | 6*10 | 13 | 12 | 12 |
| BEP-M 228 | 28way | 351×381×19(26.5) | 350×380×95×1.2 | 6.4*12 | 16 | 15 | 9 |
| BEP-M 240 | 40way | 459×381×19(26.5) | 458×380×95×1.2 | 6.4*12 | 18 | 17 | 12 |
Company Overview Demonstration
Packing
| Model | Carton size | Volume/ctn | Pcs/ctn | Calculated weight(kgs/ctn) | |
| mm | m³ | net weight | gross weight | ||
| BEP-M 104 | 525*215*355 | 0.0401 | 10 | 9.58 | |
| BEP-M 107 | 525*290*455 | 0.0693 | 10 | 14.66 | |
| BEP-M 110 | 525*345*455 | 0.0825 | 10 | 17.10 | |
| BEP-M 112 | 525*235*405 | 0.0450 | 5 | 9.25 | |
| BEP-M 114 | 525*235*440 | 0.0543 | 5 | 10.20 | |
| BEP-M 116 | 525*235*495 | 0.0611 | 5 | 11.65 | |
| BEP-M 118 | 545*240*280 | 0.0367 | 2 | 6.70 | |
| BEP-M 120 | 460*135*385 | 0.0239 | 1 | 3.60 | |
| BEP-M 228 | 455*160*425 | 0.0310 | 1 | 4.05 | |
| BEP-M 240 | 510*160*460 | 0.0376 | 1 | 4.75 | |
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no additional charge.
