Product Details:
|
| Product Name: | 7 Way MCB Distribution Box | Material: | HIPS /AS For Boday, PC For Cover |
|---|---|---|---|
| Application: | Residential/commerical | Rated Voltage: | 400V+/-20% |
| Rated Current: | 55A/ 63A | Function: | Install Circuit Board |
| Installation Type: | Surface | Terminal Size: | 6.0x10mm |
| High Light: | Indoor MCB Distribution Box,10 Way MCB Distribution Box,10 Way circuit breaker boxes |
||

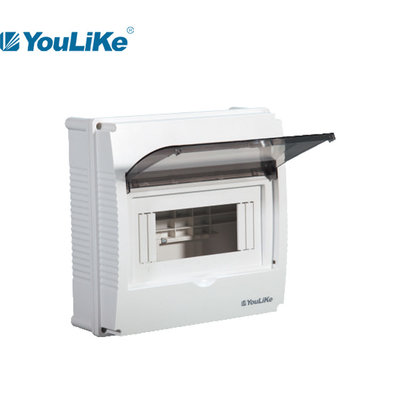

7 Way Mcb Distribution Box Circuit Breaker Distribution Box Consumer Units
Product Advantage
1. Base box and cover to be plastic ,strong box for durability.
2. Curved panel, matte process.
3. Rail btacket to prevent deformation.
4. High-quality copper bar, sturdy and durable.
5. Optimize the details to meet your needs.
DS series is used for indoor power distribution mainly for lighting control residential and commercial buildings.
Plastic parts test result
1. Incandescent wire test at 650℃.
2. Anti-UV test (to reveal plastic anti-ageing performance) ≥250hrs.
3. Xenon arc lamp test ≥250hrs.
4. Hinge operation test ≥10,000 times no break.
| Series | DS-M-107 |
| Color | white |
| Base Box Size | 194*200*45mm |
| Cover Size | 194*200*42.5mm |
| Accessories | bolt, din rail, terminal |
| Surface Treatment | coated |
| Protection Level | IP40 |
| Package | in color box or neutral carton |
| Certificate | CCC.CE |
Product Details Demonstration
Plastic din rail Brass terminals Cover assemble

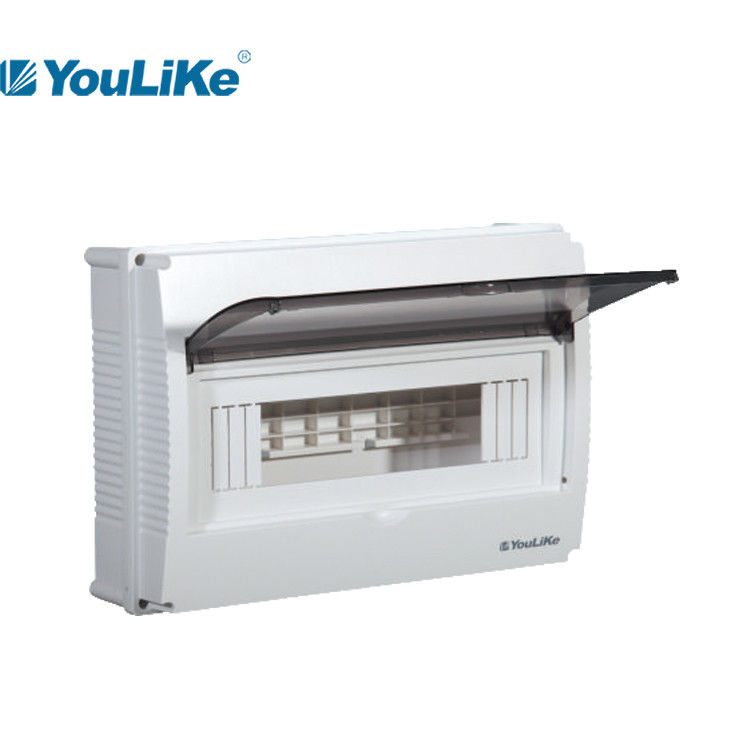

All Specification of DS Series
| Models | Cover size | Box size | Terminal |
Knock-outs (one side) |
||
| L*W*T(mm) | L*W*D(mm) | size(mm) | PE qty | N qty | ||
| DS-M 102 |
80*160*42.5 |
80*160*45 |
N/A | N/A | N/A |
1-Ø21 |
| DS-M 104 | 136*200*42.5 | 136*200*45 | 6*9 | 3 | 3 |
1-24*21 |
| DS-M 107 | 194*200*42.5 | 194*200*45 | 6*9 | 3 | 3 |
1-64*21 |
| DS-M 110 | 248*200*42.5 | 248*200*45 | 6*9 | 6 | 6 |
2-Ø26, 1-56*21 |
| DS-M 113 | 302*200*42.5 | 302*200*45 | 6*9 | 6 | 6 |
2-Ø26, 2-Ø21,1-64*21 |
| DS-M 116 | 356*200*42.5 | 356*200*45 | 6*9 | 8 | 8 | 2-Ø26, 2-Ø21,1-100*21 |
