Product Details:
|
| Product Name: | 24way Distribution Box | Material: | Metal |
|---|---|---|---|

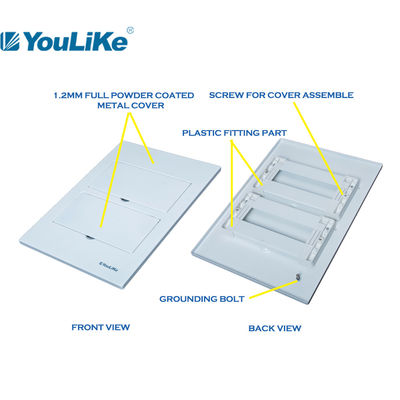

| Box Material: | 1.0mm Powder Coated Steel | Cover Frame Material: | 1.2mm Powder Coated Steel |
| Way Dimension: | 18mm | Rated Voltage: | 400V+/-20% |
| Rated Currency: | 63A / 80A | Application: | To Protect Circuit Breakers Installed In The Panel Box |
| Mounting: | Flush | ||
| High Light: | metal MCB Distribution Box,CCC MCB Distribution Box,CCC Electrical Power Distribution Equipment |
||

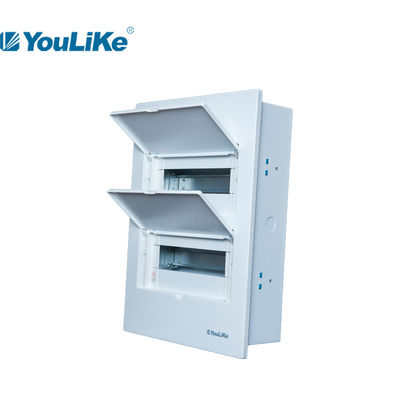

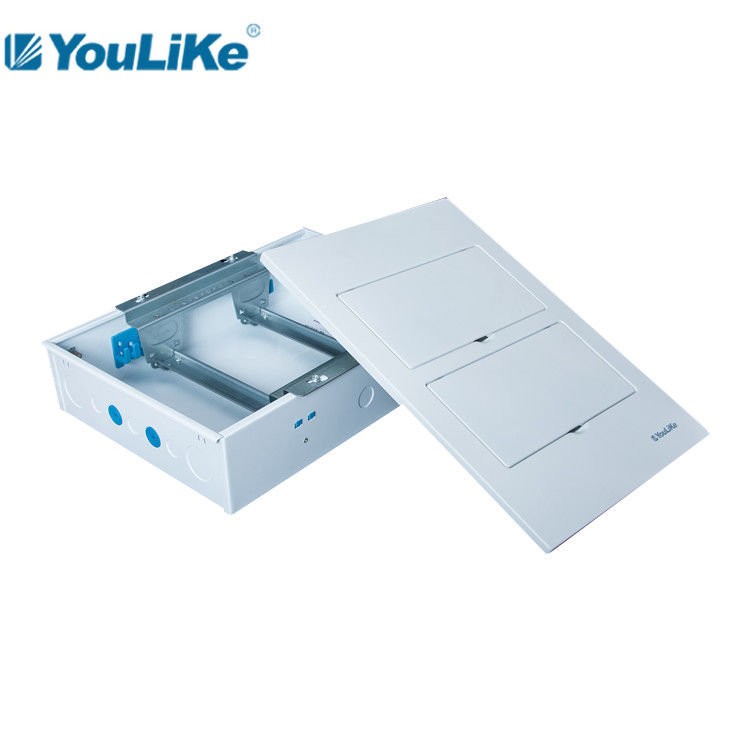

Recessed Mounted MCB Distribution Box Electrical Power Distribution Equipment With Metal Enclosure
Product Feature

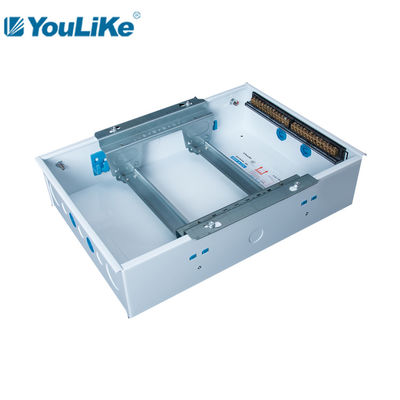

1. Good quality bottom box, safe and reliable.
2. High quality copper bar, durable.
3. Straighten din rail and stabilize the support.
4. Stainless steel screws have high hardness and good mechanical properties.
5. The separate hinge is stable enough.
Quality Assurance
1. national CCC certification standard.
2. The plate thickness meets the national standard without error.
3. All brand-new high-quality materials.
4. The protection level reaches IP40.
Customer Service
1. OEM/ODM (customized logo/ carton packing/ box depth/ plate thickness)
2. Order arrangement
* ≤15 days stable delivery
* specific MOQ
* multiple payment terms
* order status update
3. Additional service
* 7X24 respondence service
* on site service
* quality discrepancy handle
* accessories coordination
Specifications of MX series, Flush
| Model | Way | Cover size | Box size |
Terminals |
Knockouts | ||
| L*H*T (mm) | L*W*D*T(mm) | size(mm) | PE | N | one side qty | ||
| MXP-A 110 | 10way | 272*240*10(24.7) | 256*210*90*1.0 | 6.4*12 | 6 | 7 | 6 |
| MXP-A 112 | 12way | 308*240*10(24.7) | 292*210*90*1.0 | 6.4*12 | 8 | 9 | 7 |
| MXP-A 114 | 14way | 344*260*10(24.7) | 328*230*90*1.0 | 6.4*12 | 8 | 9 | 8 |
| MXP-A 116 | 16way | 380*260*10(24.7) | 364*230*90*1.0 | 6.4*12 | 10 | 11 | 9 |
| MXP-A 118 | 18way | 416*260*10(24.7) | 400*230*90*1.0 | 6.4*12 | 10 | 11 | 10 |
| MXP-A 120 | 20way | 452*260*10(24.7) | 436*230*90*1.0 | 6.4*12 | 12 | 13 | 11 |
| MXP-A 224 | 24way | 325*460*12(24.7) | 305*420*100*1.2 | 8*12 | 12 | 13 | 7 |
| MXP-A 232 | 32way | 397*460*12(24.7) | 377*420*100*1.2 | 8*12 | 15 | 15 | 9 |
| MXP-A 240 | 40way | 469*460*12(24.7) | 449*420*100*1.2 | 8*12 | 17 | 17 | 11 |
Factory Overview Demonstration
Quality Assurance
1. national CCC certification standard
2. The plate thickness meets the national standard without error
3. All brand-new high-quality materials
4. The protection level reaches IP40
Packing
| Model | Carton size | Volume/ctn | Pcs/ctn | Calculated weight(kgs/ctn) | |
| mm | m³ | net weight | gross weight | ||
| MXP-A 110 | 550*260*300 | 0.0429 | 5 | 13.7 | 14.8 |
| MXP-A 112 | 550*260*340 | 0.0487 | 5 | 15.1 | 16.4 |
| MXP-A 114 | 550*280*375 | 0.0578 | 5 | 17 | 18.5 |
| MXP-A 116 | 550*280*410 | 0.0632 | 5 | 18.5 | 20 |
| MXP-A 118 | 440*280*235 | 0.0290 | 2 | 8 | 8.8 |
| MXP-A 120 | 475*280*235 | 0.0313 | 2 | 8.6 | 9.5 |
| MXP-A 224 | 520*170*390 | 0.0345 | 1 | 6 | 6.7 |
| MXP-A 232 | 520*170*460 | 0.0407 | 1 | 7.2 | 7.8 |
| MXP-A 240 | 520*170*530 | 0.0469 | 1 | 8.2 | 9 |
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no additional charge.
