Product Details:
|
| Product Name: | Surface Mounted Electrical Distribution Board | Color: | White |
|---|---|---|---|
| Cover Frame Material: | ABS | Door Material: | ABS/PC |
| Box Material: | 1.0mm Powder Coated Steel | Rated Voltage: | 400V+/-20% |
| Rated Current: | 55A/ 63A | Window: | Transparent |
| High Light: | high safety MCB Distribution Box,CE MCB Distribution Box,CE power db box |
||

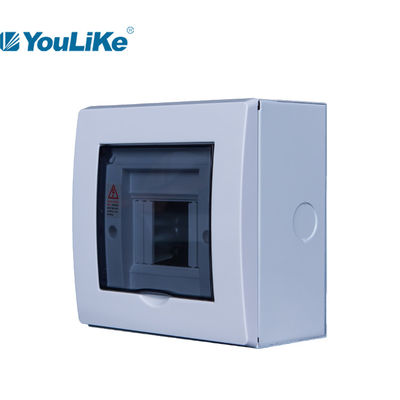

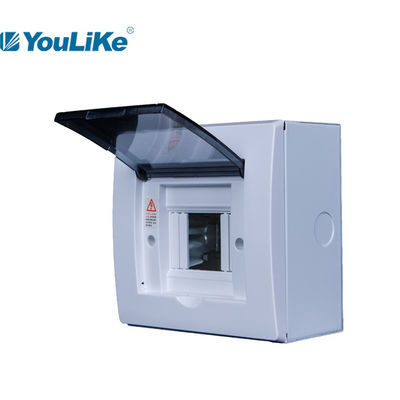

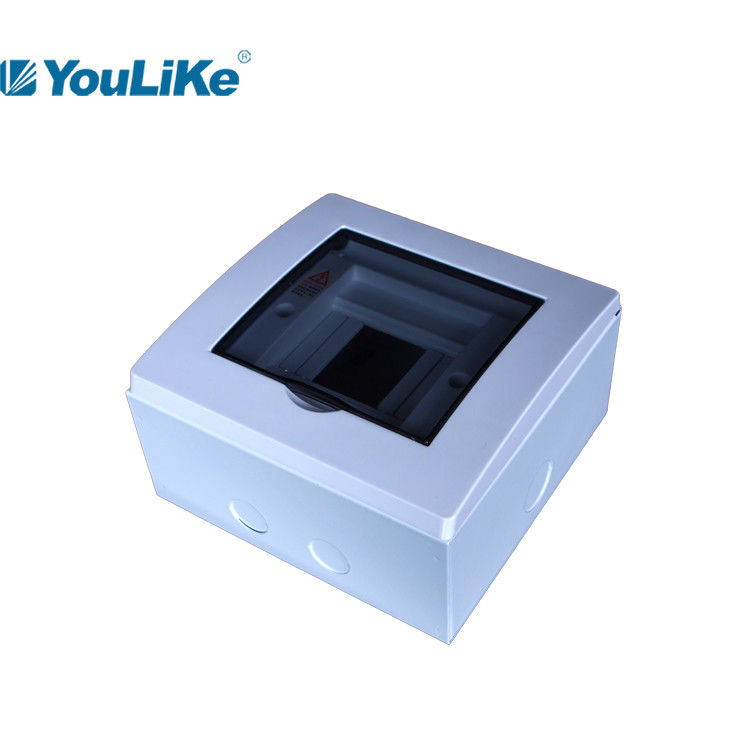

Switch Board Surface Mount 4 Ways To 40 Ways Electrical Power Distribution Box DB Box
Quality Control
1. Raw matreial
* steel plate from leading steel companies
* brand new plastic
* stable supply chain
2. Components
* safe and secure earth system
* 57.5% brass composition terminal
* multi-folded boarder
* 1,200+ times patent hinge
* wire clamp
3. Inspection
* material analysis
* inspection for individual process
* semi-final product inspection
* final product inspection
Plastic Parts Test Result
1. Incandescent wire test at 650℃.
2. Anti-UV test (to reveal plastic anti-ageing performance) ≥250hrs.
3. Xenon arc lamp test ≥250hrs.
4. Hinge operation test ≥10,000 times no break.
Attention Points
1. When the bottom box is embedded with concrete and poured on site, the bottom box needs to be supported up and down, left and right to prevent the bottom box from deformation.
2. During the installation of the upper wall of the bottom box, it is forbidden to block the threaded hole on the right plate with cement mortar.
3. The maximum bearing torque of the grounding screw on the bottom box is 20n. m.
4. It is recommended to install the support panel after the wall is puttying.
Specifications of BE series, Surface
| Model | Way | Cover size | Box size |
Terminals |
Knockouts | ||
| L*H*T (mm) | L*W*D*T(mm) | size(mm) | PE | N | one side qty | ||
| BEP-M 104 | 4way | 168×164×16.5(22.0) | 168×164×80×1.0 | 6*10 | 4 | 5 | 2 |
| BEP-M 107 | 7way | 222×214×18.5(24.0) | 221×213×80×1.0 | 6*10 | 7 | 6 | |
| BEP-M 110 | 10way | 276×214×18.5(24.0) | 275×213×80×1.0 | 6*10 | 8 | 7 | 7 |
| BEP-M 112 | 12way | 312×214×18.5(24.0) | 311×213×80×1.0 | 6*10 | 8 | 9 | 8 |
| BEP-M 114 | 14way | 348×214×18.5(24.0) | 347×213×80×1.0 | 6*10 | 11 | 10 | 9 |
| BEP-M 116 | 16way | 384×214×18.5(24.0) | 383×213×80×1.0 | 6*10 | 11 | 10 | 9 |
| BEP-M 118 | 18way | 420×214×18.5(24.0) | 419×213×80×1.0 | 6*10 | 13 | 12 | 10 |
| BEP-M 120 | 20way | 456×214×18.5(24.0) | 455×213×80×1.0 | 6*10 | 13 | 12 | 12 |
| BEP-M 228 | 28way | 351×381×19(26.5) | 350×380×95×1.2 | 6.4*12 | 16 | 15 | 9 |
| BEP-M 240 | 40way | 459×381×19(26.5) | 458×380×95×1.2 | 6.4*12 | 18 | 17 | 12 |
Product Details Demonstration
Packing
| Model | Carton size | Volume/ctn | Pcs/ctn | Calculated weight(kgs/ctn) | |
| mm | m³ | net weight | gross weight | ||
| BEP-M 104 | 525*215*355 | 0.0401 | 10 | 9.58 | |
| BEP-M 107 | 525*290*455 | 0.0693 | 10 | 14.66 | |
| BEP-M 110 | 525*345*455 | 0.0825 | 10 | 17.10 | |
| BEP-M 112 | 525*235*405 | 0.0450 | 5 | 9.25 | |
| BEP-M 114 | 525*235*440 | 0.0543 | 5 | 10.20 | |
| BEP-M 116 | 525*235*495 | 0.0611 | 5 | 11.65 | |
| BEP-M 118 | 545*240*280 | 0.0367 | 2 | 6.70 | |
| BEP-M 120 | 460*135*385 | 0.0239 | 1 | 3.60 | |
| BEP-M 228 | 455*160*425 | 0.0310 | 1 | 4.05 | |
| BEP-M 240 | 510*160*460 | 0.0376 | 1 | 4.75 | |
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no additional charge.
