Product Details:
|
| Product Name: | 4 Way Electrical Mcb Distribution Box | Material: | Powder Coated Steel +ABS |
|---|---|---|---|
| Door Material: | ABS/PC | Rated Voltage: | 400V+/-20% |
| Rated Current: | 55A/ 63A | Window: | Opaque |
| Approvel: | CCC,CE | Thickness: | 1.0mm |
| Type: | Switch Box | ||
| High Light: | Steel 4 way tpn mcb box,ABS Cover 4 way mcb box,Steel mcb distribution board 4 way |
||

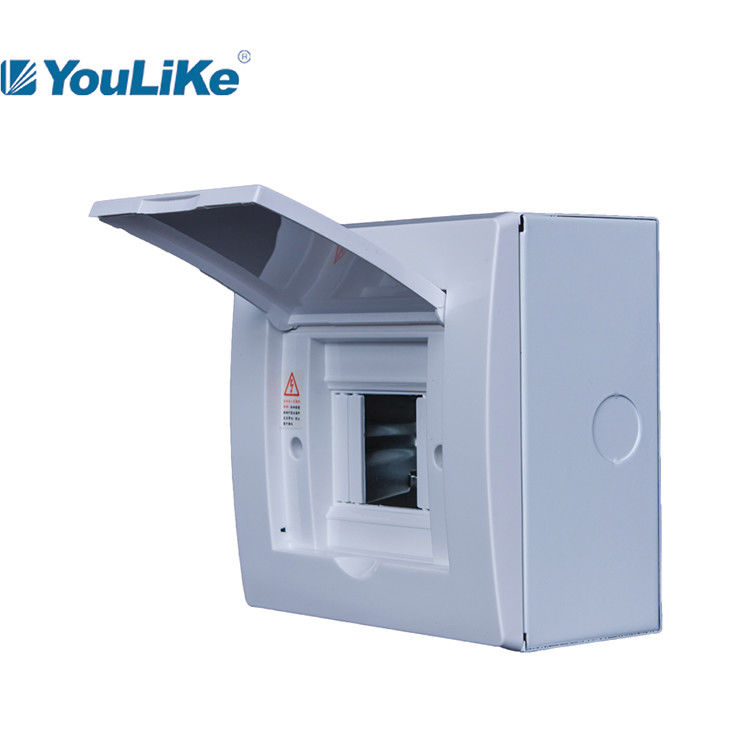

ABS Cover MCB Distribution Box 4 Way Electrical MCB Box With Transparent Window
Product Feature
Flush type and surface distribution boxes/distribution boards are mainly used in the circuit Of AC 50Hz, rated voltage 220V/380V, and acted to install the modular combination equipment. It is widely used in the family, high building, house, station, port, airport, commercial house, hospital,cinema, enterprises and so on occasion.
1. Material: PC cover and powder coated steel enclosure.
Plastic Parts Test Result
1. Incandescent wire test at 650℃.
2. Anti-UV test (to reveal plastic anti-ageing performance) ≥250hrs.
3. Xenon arc lamp test ≥250hrs.
4. Hinge operation test ≥10,000 times no break.
Product Parameters
| Series | BE-M 104 |
| Ways | 4way |
| Color | white |
| Material | powder coated steel + ABS |
| Base Box Size | 168×164×80×1.0mm |
| Cover Size | 168×164×16.5(22.0)mm |
| Approval | CE,CCC |
| Accessories | din rail + bolt+terminal |
| Installation Type | surface |
| Warranty | 2 years |
| Package | in color box or neutral carton |
| OEM | accept |
Specifications of BE series, Surface
| Model | Way | Cover size | Box size |
Terminals |
Knockouts | ||
| L*H*T (mm) | L*W*D*T(mm) | size(mm) | PE | N | one side qty | ||
| BEP-M 104 | 4way | 168×164×16.5(22.0) | 168×164×80×1.0 | 6*10 | 4 | 5 | 2 |
| BEP-M 107 | 7way | 222×214×18.5(24.0) | 221×213×80×1.0 | 6*10 | 7 | 6 | |
| BEP-M 110 | 10way | 276×214×18.5(24.0) | 275×213×80×1.0 | 6*10 | 8 | 7 | 7 |
| BEP-M 112 | 12way | 312×214×18.5(24.0) | 311×213×80×1.0 | 6*10 | 8 | 9 | 8 |
| BEP-M 114 | 14way | 348×214×18.5(24.0) | 347×213×80×1.0 | 6*10 | 11 | 10 | 9 |
| BEP-M 116 | 16way | 384×214×18.5(24.0) | 383×213×80×1.0 | 6*10 | 11 | 10 | 9 |
| BEP-M 118 | 18way | 420×214×18.5(24.0) | 419×213×80×1.0 | 6*10 | 13 | 12 | 10 |
| BEP-M 120 | 20way | 456×214×18.5(24.0) | 455×213×80×1.0 | 6*10 | 13 | 12 | 12 |
| BEP-M 228 | 28way | 351×381×19(26.5) | 350×380×95×1.2 | 6.4*12 | 16 | 15 | 9 |
| BEP-M 240 | 40way | 459×381×19(26.5) | 458×380×95×1.2 | 6.4*12 | 18 | 17 | 12 |

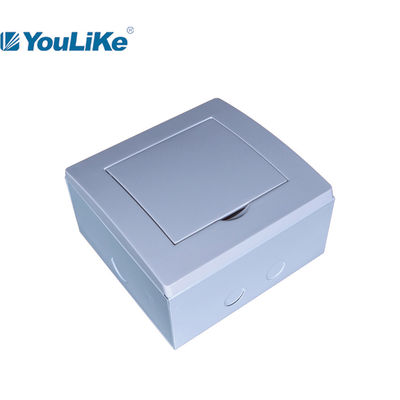

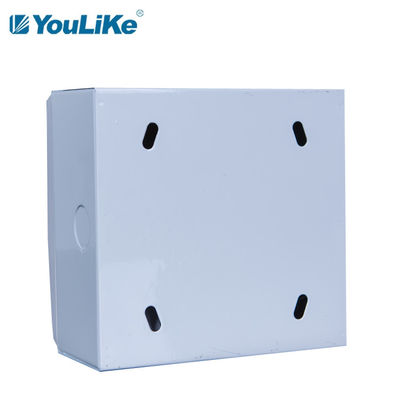

Product Details Demonstration
About Us
1. Founded in 2005, it specializes in the production, R & D and sales of indoor distribution box, multi-media box and power cabinet.
2. The product design takes safety as the core concept, and has obtained 33 design patents, 20 utility model patents and 2 invention patents.
3. It has served 1350 leading real estate companies and 1600 panel builder.
4. In 2015, the sales revenue will exceed 100 million, and the annual box sales volume will reach 3 million pieces.
5. After 16 years of development and customer support, it has also gained a certain reputation.
Warehouse Demonstration
Certifications
Packaging&Shipping
Inner Box Outer Box
