Product Details:
|
| Product Name: | 18way MCB Distribution Box | Approval: | CCC,CE |
|---|---|---|---|
| Copper Terminals: | Safe And Full Material | Mounting Type: | Flush Mounted |
| Cover Material: | PC | Box Body Material: | ABS |
| Protection Level: | IP40 | Feature: | Adjustable DIN Rail For Flush Mount Products |
| High Light: | IP40 Plastic Distribution Box,18 way Plastic Distribution Box,IP40 18 way db box |
||

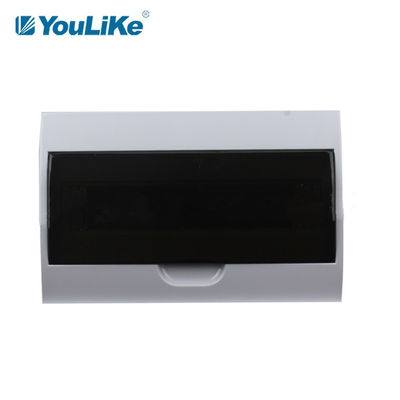

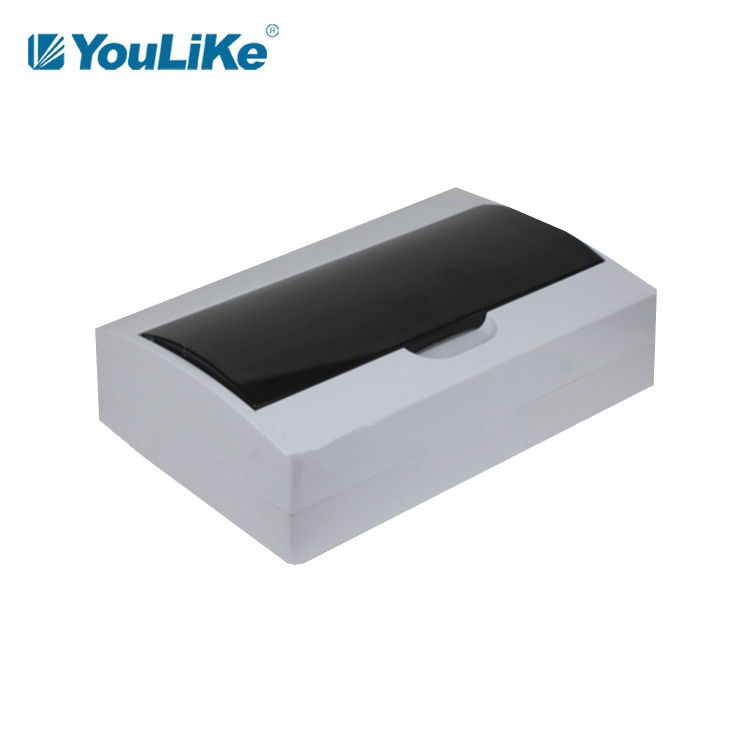

IP40 Plastic Distribution Box 18 Way Surface Mounting Consumer Unit MCB Box
Product Characteristics
1. Box body to be available for ABS material.
2. Transparent cover to be available for PC material.
3. Tested and approved to EN60947-1.
4. All plastic parts are without specific flame retardant and qualified to pass incandescent wire test at 650℃.
5. Pastic can be customized to flame retardant (grade V1~V0 depends on material choosed).
Instruction
1. Internal installation: there is a boss inside the box for the installation of circuit board or track components.
2. External installation: it can be directly fixed on the wall through the installation hole at the bottom of the box.
3. Inlet and outlet holes: the waterproof box is additionally perforated according to its own needs, and can be equipped with supporting waterproof cable joints to achieve waterproof effect.
Application
TSM series is used for indoor power distribution mainly for lighting control for residential and commercial buildings.
Specifications of TSM series, Surface/Flush
| Number | Model | Way | Box size(surface) | Box size(flush) | Cartons |
| L*H*T (mm) | L*H*T (mm) | pcs | |||
|
#1 |
TSM2-3 | 2-3way | 95*150*60 | 95*150*60 | 50 |
|
#2 |
TSM4 | 4way | 112*200*95 | 136*221*90 | 30 |
|
#3 |
TSM6 | 6way | 148*200*95 | 172*221*90 | 30 |
|
#4 |
TSM8 | 8way | 184*200*95 | 208*221*90 | 30/20 |
| #5 | TSM10 | 10way | 222*200*95 | 246*221*90 | 20 |
| #6 | TSM12 | 12way | 256*200*95 | 278*221*90 | 20 |
| #7 | TSM15 | 15way | 310*200*95 | 334*221*90 | 15 |
| #8 | TSM18 | 18way | 360*200*100 | 398*251*100 | 15/10 |
| #9 | TSM24 | 24way | 270*328*100 | 300*350*100 | 10 |
| #10 | TSM36 | 36way | 270*460*100 | 300*482*100 | 5 |
| #11 | TSM45 | 45way | 325*470*100 | 365*505*110 | 5 |
Office Area Demonstration
Packing
| Model | Carton size | Volume/ctn | Pcs/ctn | Calculated weight(kgs/ctn) | |
| mm | m³ | net weight | gross weight | ||
| TSM2-3way | 100*155*65 | 0.0100 | 50 | ||
| TSM4way | 115*205*100 | 0.0023 | 30 | ||
| TSM6way | 150*205*100 | 0.0030 | 30 | ||
| TSM8way | 190*205*100 | 0.0038 | 30/20 | ||
| TSM10way | 227*205*100 | 0.0046 | 20 | ||
| TSM12way | 260*205*100 | 0.0053 | 20 | ||
| TSM15way | 315*205*100 | 0.0065 | 15 | ||
| TSM18way | 365*205*105 | 0.0078 | 15/10 | ||
| TSM24way | 275*333*105 | 0.0096 | 10 | ||
| TSM36way | 275*465*105 | 0.0134 | 5 | ||
| TSM45way | 330*475*105 | 0.0164 | 5 | ||
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no additional charge.
Company Profile
Production Capacity:
1. 30,000 square meters production center, including metallic process line, powder coating line, plastic injection, assemble line, customization center and etc.
2. 4,000,000 pieces annual output.
3. Automatic box process line, to ensure quality stablility and production efficience.
Market service:
1. yesr service for over 1,800 panel builders and 2,000 real estate companies.
2. Over 500 fully skilled support team, 22 national branches.
3. Stable delivery time all year long as 15days.
R&D ability:
1. Over 65 national patents, to ensure every single product is 100% original.
2. Product update and new product issue in each 1-2 years.
