Product Details:
|
| Product Name: | Indoor Flush Mounted Distribution Box | Mounting Type: | Flush Mounted |
|---|---|---|---|
| Cover Frame Material: | ABS | Box Material: | 1.0&1.2mm Powder Coated Steel |
| Door Material: | ABS | Rated Voltage: | 400V+/-20% |
| Rated Current: | 63A/80A | Feature: | Adjustable DIN Rail For Flush Mount Products |
| High Light: | ABS 15 way fuse board,15 way fuse board,15 Way mcb panel board box |
||

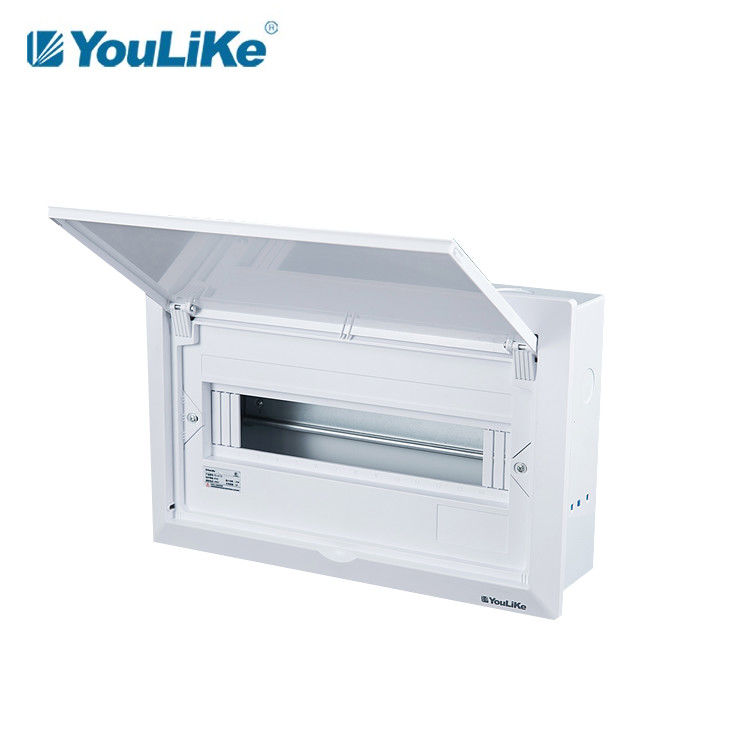

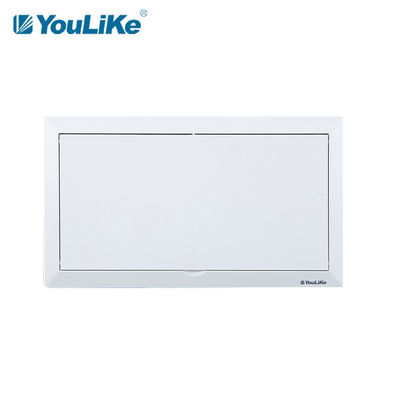

15way Electric Panel Metal Enclosure Consumer Unit Integrity Surface Distribution Box
Product Advantage
1. Select the copper bar with 60% content, which can not crack and slide the wire continuously, and the conductivity is smooth Add line cards to better standardize wiring.
2. The grounding screw is made of stainless steel, which is safe and reliable.
3. All panels are made of brand-new materials, durable and beautiful.
4. The new hinge structure makes users safer.
5. The box mouth adopts double bending design to facilitate cleaning and protect the safety of devices.
Product Characteristics
1. Box to be available for powder coated steel, 1.0mm for 1&2row, 1.2mm for3rows.
2. Cover frame to be available for ABS material.
3. Door to be available for ABS, color white.
4. All plastic parts are without specific flame retardant and qualified to pass incandescent wire test at 650℃.
5. Pastic can be customized to flame retardant (grade V1~V0 depends on material choosed).
Company Profile
1. Founded in 2005, it specializes in the production, R & D and sales of indoor distribution box, multi-media box and power cabinet.
2. The product design takes safety as the core concept, and has obtained 33 design patents, 20 utility model patents and 2 invention patents.
3. It has served 1350 leading real estate companies and 1600 panel builder.
4. In 2015, the sales revenue will exceed 100 million, and the annual box sales volume will reach 3 million pieces.
5. After 16 years of development and customer support, it has also gained a certain reputation.
Specifications of P5 series, Flush
| Model | Way | Cover size | Box size |
Terminals |
Knockouts | ||
| L*H*T (mm) | L*W*D*T(mm) | size(mm) | PE | N | one side qty | ||
|
P5-A 112 |
12way | 312*230*15.5(31.3) | 292×210×90×1.0 | 6×10.4 | 8 | 7 | 6 |
|
P5-A 115 |
15way | 366×240×15.5(31.3) | 346×220×90×1.0 | 6×10.4 | 8 | 7 | 7 |
|
P5-A 118 |
18way | 420×240×15.5(31.3) | 00×220×90×1.0 | 6×10.4 | 11 | 10 | 9 |
|
P5-A 121 |
21way | 474×240×15.5(31.3) | 454×220×90×1.0 | 6×10.4 | 11 | 10 | 10 |
|
P5-A 124 |
24way | 528×250×15.5(31.3) | 508×230×90×1.0 | 6×10.4 | 13 | 12 | 10 |
|
P5-A 226 |
26way | 348×400×16.5(32.8) | 328×380×90×1.0 | 6×10.4 | 13 | 12 | 6 |
|
P5-A 232 |
32way | 402×400×16.5(32.8) | 382×380×90×1.0 | 6.4×12 | 16 | 15 | 7 |
|
P5-A 242 |
42way | 492×400×16.5(32.8) | 472×380×90×1.0 | 6.4×12 | 18 | 17 | 10 |
|
P5-A 354 |
54way | 448×604×17(33.5) | 424×580×100×1.2 | 6.4×12 | 2*13 | 2*12 | 9 |
Company Overview Demonstration
Application
P5 series mainly used for indoor lighting control for residential and commercial buildings.

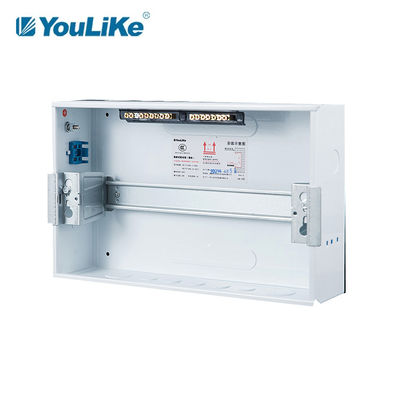

1. Din rail to be galvanized steel, with horizontal & vertical adjustment funtion.
2. Copper terminals (1pcs earthing & 1pcs neutral) is with 6% composition.
3. Stainless earthing bolts with warning label.
4. Reinforced structure design to allow higher tensile strength of plastic cover.
5. Plastic wire clamps is equiped below the din rail.
Packing
| Model | Carton size | Volume/ctn | Pcs/ctn | Calculated weight(kgs/ctn) | |
| mm | m³ | net weight | gross weight | ||
| P5-A 112 | 655×300×385 | 0.0756 | 5 | 17.10 | |
| P5-A 115 | 655×310×440 | 0.0893 | 5 | 9.25 | |
| P5-A 118 | 655×310×495 | 0.1005 | 5 | 10.20 | |
| P5-A 121 | 655×310×545 | 0.1106 | 5 | 11.65 | |
| P5-A 124 | 655×320×600 | 0.1257 | 5 | 12.40 | |
| P5-A 226 | 460×135×415 | 0.0257 | 1 | 5.40 | |
| P5-A 232 | 460×135×470 | 0.0291 | 1 | 6.70 | |
| P5-A 242 | 550×135×465 | 0.0345 | 1 | 3.60 | |
| P5-A 354 | 665×155×515 | 0.0530 | 1 | 4.05 | |
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no additional charge.
