Product Details:
|
| Product Name: | Indoor Flush Mounted Distribution Box | Box Material: | 1.0&1.2mm Powder Coated Steel |
|---|---|---|---|
| Cover Frame Material: | ABS | Door Material: | ABS |
| Rated Voltage: | 400V+/-20% | Rated Current: | 63A/80A |
| Protection Level: | IP40 | Environmental Temperature: | -25℃～50℃ |
| High Light: | 400V Plastic MCB Box,12 Way Plastic MCB Box,Flush Mounted mcb box 12 way |
||

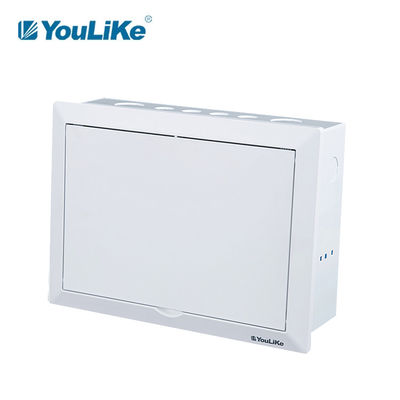

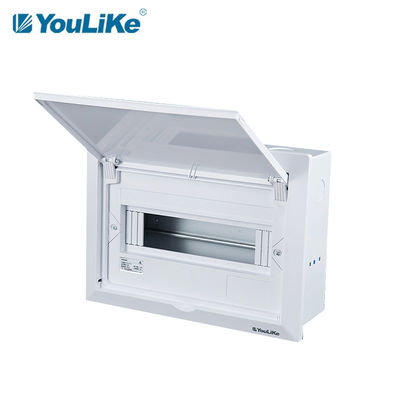

Low Voltage 12 Way Flush Mounted Protection Level 40 Electrical Power Metal Distribution Box
Product Characteristics
1. Box to be available for powder coated steel, 1.0mm for 1&2row, 1.2mm for3rows.
2. Cover frame to be available for ABS material.
3. Door to be available for ABS, color white.
4. All plastic parts are without specific flame retardant and qualified to pass incandescent wire test at 650℃.
5. Pastic can be customized to flame retardant (grade V1~V0 depends on material choosed).
Plastic Parts Test Result
1. Incandescent wire test at 650℃.
2. Anti-UV test (to reveal plastic anti-ageing performance) ≥250hrs.
3. Xenon arc lamp test ≥250hrs.
4. Hinge operation test ≥10,000 times no break.
Installation Precautions
1. When the bottom box is embedded with concrete for on-site pouring, the surrounding support shall be made inside the bottom box to prevent the bottom box from deformation.
2. The maximum bearing torque of the earthing bolt on the bottom box is 18N. M.
3. It is recommended to install the support surface after the wall is puttying.
4. The bracket is attached to the wall for installation.
5. The installation of the box must be grounded, and the box is not equipped with earthing.
Specifications of P5 series, Flush
| Model | Way | Cover size | Box size |
Terminals |
Knockouts | ||
| L*H*T (mm) | L*W*D*T(mm) | size(mm) | PE | N | one side qty | ||
|
P5-A 112 |
12way | 312*230*15.5(31.3) | 292×210×90×1.0 | 6×10.4 | 8 | 7 | 6 |
|
P5-A 115 |
15way | 366×240×15.5(31.3) | 346×220×90×1.0 | 6×10.4 | 8 | 7 | 7 |
|
P5-A 118 |
18way | 420×240×15.5(31.3) | 00×220×90×1.0 | 6×10.4 | 11 | 10 | 9 |
|
P5-A 121 |
21way | 474×240×15.5(31.3) | 454×220×90×1.0 | 6×10.4 | 11 | 10 | 10 |
|
P5-A 124 |
24way | 528×250×15.5(31.3) | 508×230×90×1.0 | 6×10.4 | 13 | 12 | 10 |
|
P5-A 226 |
26way | 348×400×16.5(32.8) | 328×380×90×1.0 | 6×10.4 | 13 | 12 | 6 |
|
P5-A 232 |
32way | 402×400×16.5(32.8) | 382×380×90×1.0 | 6.4×12 | 16 | 15 | 7 |
|
P5-A 242 |
42way | 492×400×16.5(32.8) | 472×380×90×1.0 | 6.4×12 | 18 | 17 | 10 |
|
P5-A 354 |
54way | 448×604×17(33.5) | 424×580×100×1.2 | 6.4×12 | 2*13 | 2*12 | 9 |
Company Overview Demonstration
Application
P5 series mainly used for indoor lighting control for residential and commercial buildings.

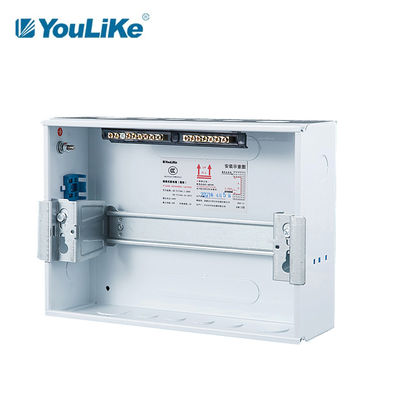

1. Din rail to be galvanized steel, with horizontal & vertical adjustment funtion.
2. Copper terminals (1pcs earthing & 1pcs neutral) is with 6% composition.
3. Stainless earthing bolts with warning label.
4. Reinforced structure design to allow higher tensile strength of plastic cover.
5. Plastic wire clamps is equiped below the din rail.
Packing
| Model | Carton size | Volume/ctn | Pcs/ctn | Calculated weight(kgs/ctn) | |
| mm | m³ | net weight | gross weight | ||
| P5-A 112 | 655×300×385 | 0.0756 | 10 | 17.10 | |
| P5-A 115 | 655×310×440 | 0.0893 | 5 | 9.25 | |
| P5-A 118 | 655×310×495 | 0.1005 | 5 | 10.20 | |
| P5-A 121 | 655×310×545 | 0.1106 | 5 | 11.65 | |
| P5-A 124 | 655×320×600 | 0.1257 | 12.40 | ||
| P5-A 226 | 460×135×415 | 0.0257 | 5.40 | ||
| P5-A 232 | 460×135×470 | 0.0291 | 1 | 6.70 | |
| P5-A 242 | 550×135×465 | 0.0345 | 1 | 3.60 | |
| P5-A 354 | 665×155×515 | 0.0530 | 1 | 4.05 | |
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no additional charge.
