Product Details:
|
| Product Name: | Indoor Flush Mounted Distribution Box | Environment Temperature: | -25℃～50℃ |
|---|---|---|---|
| Window Type: | Opaque | Cover Frame Material: | ABS |
| Ingress Protection: | IP40 | Box Material: | 1.0&1.2mm Powder Coated Steel |
| Door Material: | ABS | Application: | Indoor |
| High Light: | opaque window Plastic MCB Box,42 way Plastic MCB Box,42 way surface mounted switchboard |
||

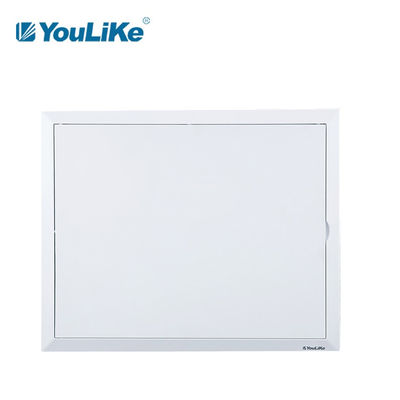

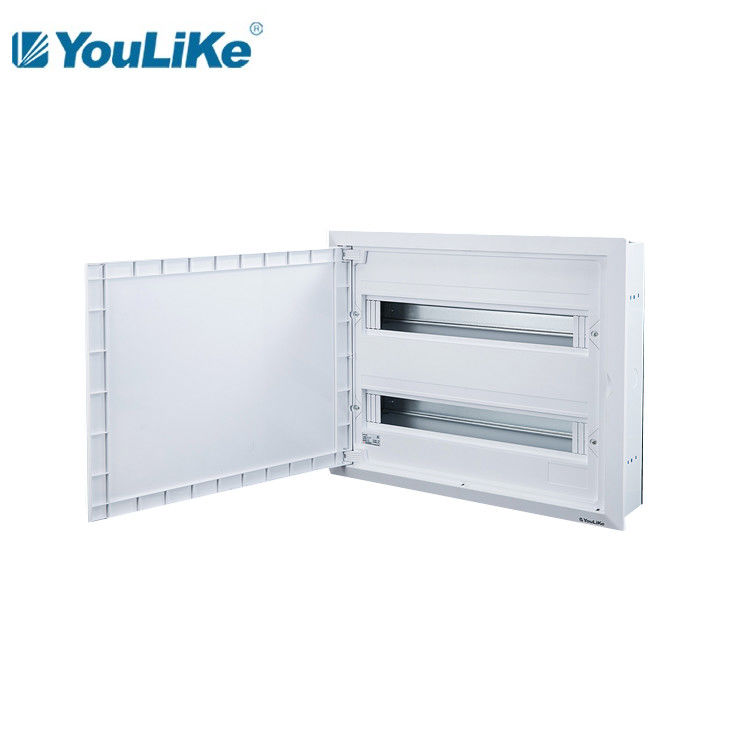

Two Phase 42way Electrical Power Distribution Equipment Indoor MCB Enclosure Distribution Box
Product Development Orientation
1. Standardized bottom bow installation.
2. Standardized equipment factory connection.
3. Standardized construction connection.
4. Standardized telecom installation.
Installation Precautions
1. When the bottom box is embedded with concrete for on-site pouring, the surrounding support shall be made inside the bottom box to prevent the bottom box from deformation.
2. The maximum bearing torque of the earthing bolt on the bottom box is 18N. M.
3. It is recommended to install the support surface after the wall is puttying.
4. The bracket is attached to the wall for installation.
5. The installation of the box must be grounded, and the box is not equipped with earthing.
Installation Precautions
1. When the bottom box is embedded with concrete for on-site pouring, the surrounding support shall be made inside the bottom box to prevent the bottom box from deformation.
2. The maximum bearing torque of the earthing bolt on the bottom box is 18N. M.
3. It is recommended to install the support surface after the wall is puttying.
4. The bracket is attached to the wall for installation.
5. The installation of the box must be grounded, and the box is not equipped with earthing.
Specifications of P5 series, Flush
| Model | Way | Cover size | Box size |
Terminals |
Knockouts | ||
| L*H*T (mm) | L*W*D*T(mm) | size(mm) | PE | N | one side qty | ||
|
P5-A 112 |
12way | 312*230*15.5(31.3) | 292×210×90×1.0 | 6×10.4 | 8 | 7 | 6 |
|
P5-A 115 |
15way | 366×240×15.5(31.3) | 346×220×90×1.0 | 6×10.4 | 8 | 7 | 7 |
|
P5-A 118 |
18way | 420×240×15.5(31.3) | 00×220×90×1.0 | 6×10.4 | 11 | 10 | 9 |
|
P5-A 121 |
21way | 474×240×15.5(31.3) | 454×220×90×1.0 | 6×10.4 | 11 | 10 | 10 |
|
P5-A 124 |
24way | 528×250×15.5(31.3) | 508×230×90×1.0 | 6×10.4 | 13 | 12 | 10 |
|
P5-A 226 |
26way | 348×400×16.5(32.8) | 328×380×90×1.0 | 6×10.4 | 13 | 12 | 6 |
|
P5-A 232 |
32way | 402×400×16.5(32.8) | 382×380×90×1.0 | 6.4×12 | 16 | 15 | 7 |
|
P5-A 242 |
42way | 492×400×16.5(32.8) | 472×380×90×1.0 | 6.4×12 | 18 | 17 | 10 |
|
P5-A 354 |
54way | 448×604×17(33.5) | 424×580×100×1.2 | 6.4×12 | 2*13 | 2*12 | 9 |
Workshop Demonstration
Application
P5 series mainly used for indoor lighting control for residential and commercial buildings.

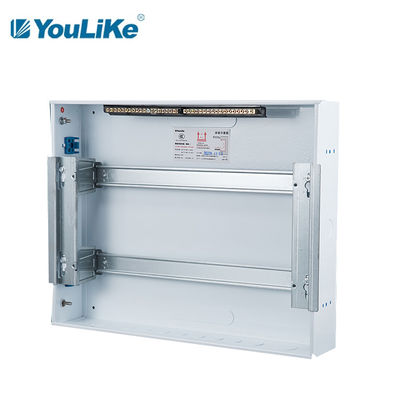

1. Din rail to be galvanized steel, with horizontal & vertical adjustment funtion.
2. Copper terminals (1pcs earthing & 1pcs neutral) is with 6% composition.
3. Stainless earthing bolts with warning label.
4. Reinforced structure design to allow higher tensile strength of plastic cover.
5. Plastic wire clamps is equiped below the din rail.
Packing
| Model | Carton size | Volume/ctn | Pcs/ctn | Calculated weight(kgs/ctn) | |
| mm | m³ | net weight | gross weight | ||
| P5-A 112 | 655×300×385 | 0.0756 | 5 | 17.10 | |
| P5-A 115 | 655×310×440 | 0.0893 | 5 | 9.25 | |
| P5-A 118 | 655×310×495 | 0.1005 | 5 | 10.20 | |
| P5-A 121 | 655×310×545 | 0.1106 | 5 | 11.65 | |
| P5-A 124 | 655×320×600 | 0.1257 | 5 | 12.40 | |
| P5-A 226 | 460×135×415 | 0.0257 | 1 | 5.40 | |
| P5-A 232 | 460×135×470 | 0.0291 | 1 | 6.70 | |
| P5-A 242 | 550×135×465 | 0.0345 | 1 | 3.60 | |
| P5-A 354 | 665×155×515 | 0.0530 | 1 | 4.05 | |
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no additional charge.
Customer Service
1. OEM/ODM (customized logo/ carton packing/ box depth/ plate thickness)
2. Order arrangement
* ≤15 days stable delivery
* specific MOQ
* multiple payment terms
* order status update
3. Additional service
* 7X24 respondence service
* on site service
* quality discrepancy handle
* accessories coordination
