Product Details:
|
| Product Name: | 7way Mcb Distribution Box | Material: | Metal+plastic |
|---|---|---|---|
| Window Type: | Transparent | Terminal Dimension: | 6x10mm/6.4x12mm |
| Cover Frame Material: | ABS | Door Material: | ABS/PC |
| Accessories: | Din Rail +teriminal | Warranty: | 2 Year |
| High Light: | ABS mcb distribution board 8 way,IP40 mcb distribution board 8 way,IP40 8 way tpn mcb box |
||

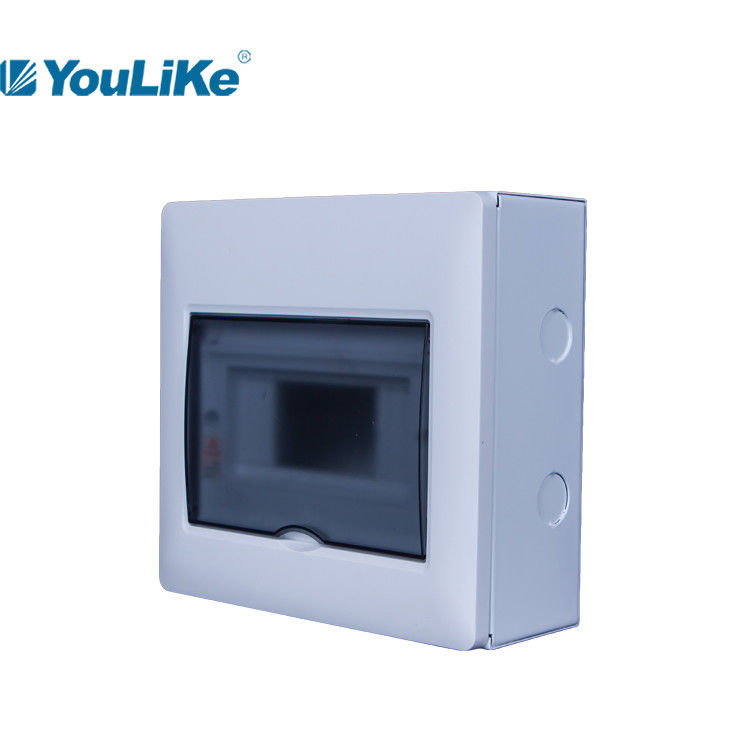

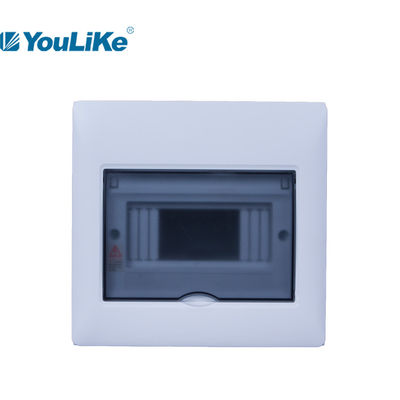

IP40 ABS Material MCB Distribution Board 7 Way TPN MCB Box Surface Mounted
Product Characteristics
1. Box to be available for powder coated steel, with 1.0mm thickness.
2. Cover frame to be available for ABS material.
3. Door to be available for ABS material( color white).
4. All plastic parts are without specific flame retardant and qualified to pass incandescent wire test at 650℃.
5. Pastic can be customized to flame retardant (grade V1~V0 depends on material choosed).
6. Protection level reaches IP40.
7. Application: widely used in low voltage distribution networks for power supplying of consumers and commercial buildings.
Plastic Parts Test Result
1. Incandescent wire test at 650℃.
2. Anti-UV test (to reveal plastic anti-ageing performance) ≥250hrs.
3. Xenon arc lamp test ≥250hrs.
4. Hinge operation test ≥10,000 times no break.
Product Details Demonstration
Product Parameters
| Series | BE-M 107 |
| Ways | 7way |
| Color | transparent |
| Material | powder coated steel + ABS |
| Base Box Size | 221×213×80×1.0mm |
| Cover Size | 222×214×18.5(24.0)mm |
| Approval | CE,CCC |
| Accessories | din rail + terminals |
| Installation Type | concealed |
| Warranty | 2 years |
| Package | in color box or neutral carton |
| OEM | accept |
Specifications of BE series, Surface
| Model | Way | Cover size | Box size |
Terminals |
Knockouts | ||
| L*H*T (mm) | L*W*D*T(mm) | size(mm) | PE | N | one side qty | ||
| BEP-M 104 | 4way | 168×164×16.5(22.0) | 168×164×80×1.0 | 6*10 | 4 | 5 | 2 |
| BEP-M 107 | 7way | 222×214×18.5(24.0) | 221×213×80×1.0 | 6*10 | 7 | 6 | |
| BEP-M 110 | 10way | 276×214×18.5(24.0) | 275×213×80×1.0 | 6*10 | 8 | 7 | 7 |
| BEP-M 112 | 12way | 312×214×18.5(24.0) | 311×213×80×1.0 | 6*10 | 8 | 9 | 8 |
| BEP-M 114 | 14way | 348×214×18.5(24.0) | 347×213×80×1.0 | 6*10 | 11 | 10 | 9 |
| BEP-M 116 | 16way | 384×214×18.5(24.0) | 383×213×80×1.0 | 6*10 | 11 | 10 | 9 |
| BEP-M 118 | 18way | 420×214×18.5(24.0) | 419×213×80×1.0 | 6*10 | 13 | 12 | 10 |
| BEP-M 120 | 20way | 456×214×18.5(24.0) | 455×213×80×1.0 | 6*10 | 13 | 12 | 12 |
| BEP-M 228 | 28way | 351×381×19(26.5) | 350×380×95×1.2 | 6.4*12 | 16 | 15 | 9 |
| BEP-M 240 | 40way | 459×381×19(26.5) | 458×380×95×1.2 | 6.4*12 | 18 | 17 | 12 |
