Product Details:
|
| Item Name: | Dustproof Switch Box | Material: | Steel |
|---|---|---|---|
| Surface Treatment: | Powder Coating Spray | Door: | HIPS/fireproof PC |
| Mounting Type: | Flush Mounted | Thickness: | 0.039in |
| Function: | Rust Resisting | Gurantee Period: | Two Years |
| Protection Level: | IP40 | Current: | 55A |
| High Light: | Circuit Breaker Mini MCB Box,PC Plastic Enclosure Mini MCB Box,IP40 32 Ways MCB Box |
||

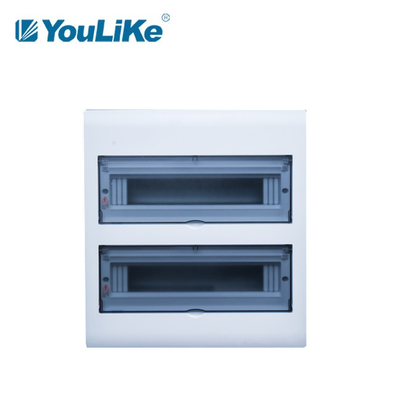

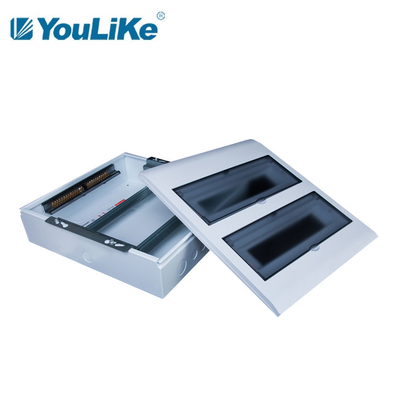

PC Plastic Enclosure Wall Mount IP40 32 Ways Mini Circuit Breaker MCB Box
Product Characteristics
1. Box to be available for powder coated steel, with 1.0mm thickness.
2. Cover frame to be available for HIPS material.
3. Door to be available for HIPS, both white door and transparent door.
4. All plastic parts are without specific flame retardant and qualified to pass incandescent wire test at 650℃.
5. Pastic can be customized to flame retardant (grade V1~V0 depends on material choosed).
6. High purity zero line flow discharge.
7.widely used in low voltage distribution networks for power supplying of consumers and commercial buildings.
Product Parameters
| Model | RBP-A-232 |
| Ways | 32 way |
| Base Box Size | 354*380*90*1.0mm |
| Cover Size | 378*405*18.5(27) |
| Carton Size | 460*135*420mm |
| Qty | 1 pc |
| Approval | CE |
| Installation Type | flush type |
| Warranty | 2 years |
| Package | in color box or neutral carton |
| OEM | accept |
Attention Points
1. When the bottom box is embedded with concrete and poured on site, the bottom box needs to be supported up and down, left and right to prevent the bottom box from deformation.
2. During the installation of the upper wall of the bottom box, it is forbidden to block the threaded hole on the right plate with cement mortar.
3. The maximum bearing torque of the grounding screw on the bottom box is 20n. m.
4. It is recommended to install the support panel after the wall is puttying.
Product Details
Company Profile
1. Founded in 2005, it specializes in the production, R & D and sales of indoor distribution box, multi-media box and power cabinet.
2. The product design takes safety as the core concept, and has obtained 33 design patents, 20 utility model patents and 2 invention patents.
3. It has served 1350 leading real estate companies and 1600 panel builder.
4. In 2015, the sales revenue will exceed 100 million, and the annual box sales volume will reach 3 million pieces.
5. After 16 years of development and customer support, it has also gained a certain reputation.
