Product Details:
|
| Name: | Electrical Distribution Box | Material: | Steel+PC |
|---|---|---|---|
| Surface Treatment: | Painted | Door: | Transparent /white |
| Mounting Type: | Recessed | Thickness: | 0.8/1.0/1.2mm |
| Function: | Rust Resisting | Gurantee Period: | Two Years |
| Protection Level: | IP40 | Feature: | Convenient |
| High Light: | Plastic Enclosure Db Box 32 Way,Recessed Mounted Db Box 32 Way,Switchboard Residence MCB Distribution Box |
||

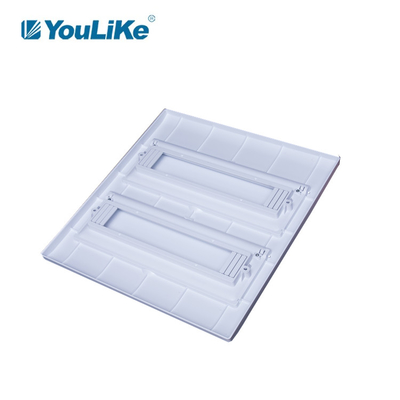

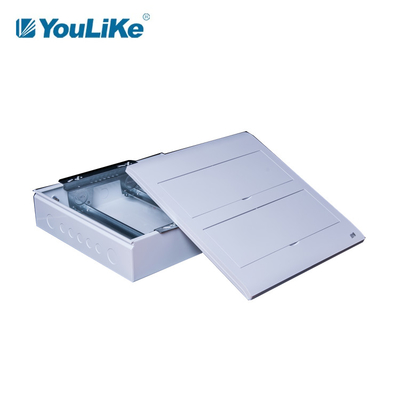

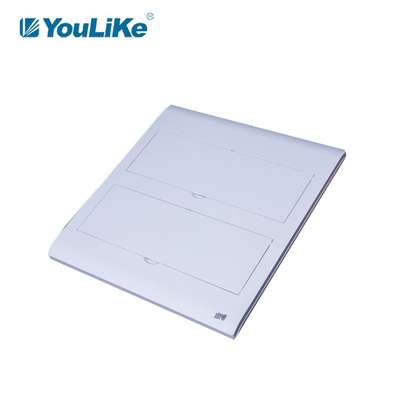

IP40 Waterproof 4 8 12 18 24 32 Way Mcb Distribution Box Price Switch Plastic Box
Product Specification
Application: widely used in low voltage distribution networks for power supplying of consumers and commercial buildings.
| Name | 32 way mcb distribution box |
| Ways | 32 way |
| Color | white |
| Material | powder coated steel + PC |
| Base Box Size | 354*380*90*1.0mm |
| Cover Size | 378*405*18.5(27) |
| Approval | CE |
| Row | 2 |
| Installation Type | flush type |
| Warranty | 2 years |
| Package | in color box or neutral carton |
| OEM | accept |
Main Features
1.High impact resistance material:PC,ABS
2. Safe and full material copper terminals
3.Adjustable din-rail:move ascend and descend
4. Ultra-large space box for moving and easy wiring
5. Flush mounting and surface mounting available
6.Function of Distribution box:protect MCB and other devices.
| 1. Raw matreial | 2.Components | 3. Inspection |
| steel plate from leading steel companies | safe and secure earth system | material analysis |
| brand new plastic | 57.5% brass composition terminal | inspection for individual process |
| stable supply chain | multi-folded boarder | semi-final product inspection |
| 1,200+ times patent hinge | final product inspection | |
| wire clamp |
Product Details
Attention Points
1. When the bottom box is embedded with concrete and poured on site, the bottom box needs to be supported up and down, left and right to prevent the bottom box from deformation.
2. During the installation of the upper wall of the bottom box, it is forbidden to block the threaded hole on the right plate with cement mortar.
3. The maximum bearing torque of the grounding screw on the bottom box is 20n. m.
4. It is recommended to install the support panel after the wall is puttying.
About Us
YouLike is an experienced and reliable manufacturer of low-voltage electrics,and produce distribution box, switch box, MCB consumer units with OEM and ODM services professionally.We have a professional technical team to provide customers with customized production and services.Our production comply with ISO9001 standard also approved by CE, CCC test.
Production Capacity:
1. 30,000 square meters production center, including metallic process line, powder coating line, plastic injection, assemble line, customization center and etc.
2. 4,000,000 pieces annual output.
3. Automatic box process line, to ensure quality stablility and production efficience.
Market service:
1. year service for over 1,800 panel builders and 2,000 real estate companies.
2. Over 500 fully skilled support team, 22 national branches.
3. Stable delivery time all year long as 15days.
R&D ability:
1. Over 65 national patents, to ensure every single product is 100% original.
2. Product update and new product issue in each 1-2 years.
