Product Details:
|
| Name: | 32way Miniature Circuit Breaker Distribution Box | Material: | Metal+plastic |
|---|---|---|---|
| Surface Treatment: | Powder Coating | Door: | Transparent /white |
| Mounting Type: | Recessed | Degree Of Protection: | IP40 |
| Way Dimension: | 18 MM | Function: | Rust Resisting |
| Gurantee Period: | 2 Years | Application: | Outdoor，indoor，Interior Decoration，residential |
| High Light: | Plastic Enclosure 32 Way MCB Box,Concealed Mounted 32 Way MCB Box,Residential MCB Distribution Box |
||

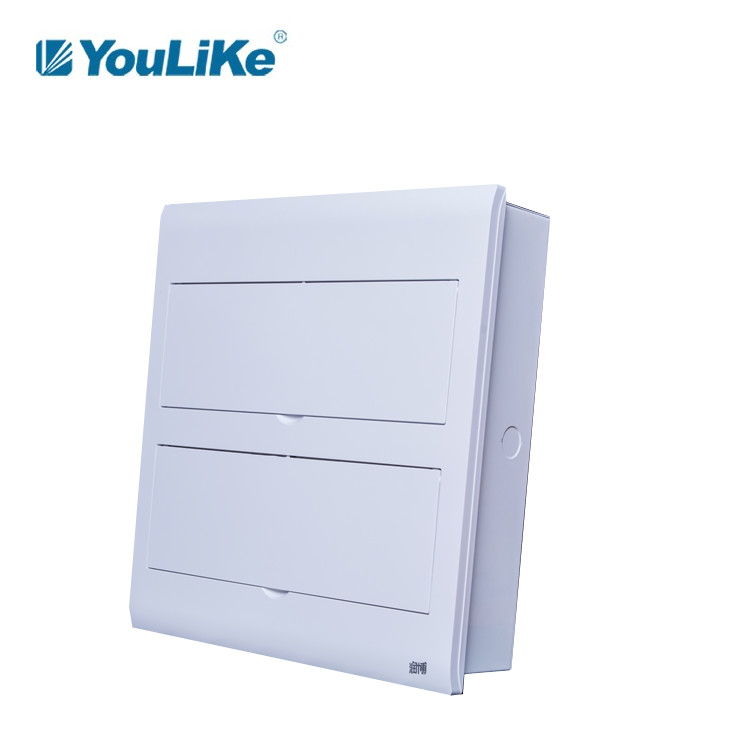

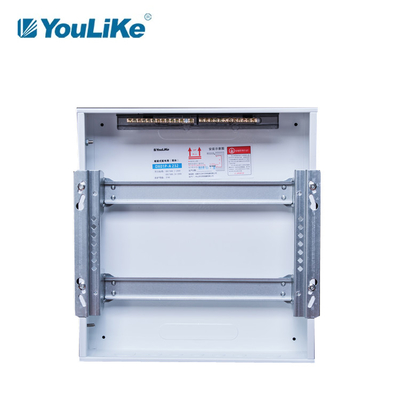

Residential Concealed Mounted MCB Plastic Enclosure 32 Way Distribution Box Indoor
Product Specification
| Model | 26 way mcb distribution box |
| Modules | 26 way |
| Color | white |
| Material | powder coated steel + PC |
| Base Box Size | 354*380*90*1.0mm |
| Cover Size | 378*405*18.5(27) |
| Approval | CE |
| Rated Frame Current | 55A |
| Mounting Type | flush type |
| Warranty | 2 years |
| Package | in color box or neutral carton |
| OEM | accept |
Quality Control
| 1. Raw matreial | 2.Components | 3. Inspection |
| steel plate from leading steel companies | safe and secure earth system | material analysis |
| brand new plastic | 57.5% brass composition terminal | inspection for individual process |
| stable supply chain | multi-folded boarder | semi-final product inspection |
| 1,200+ times patent hinge | final product inspection | |
| wire clamp |
Attention Points
1. When the bottom box is embedded with concrete and poured on site, the bottom box needs to be supported up and down, left and right to prevent the bottom box from deformation.
2. During the installation of the upper wall of the bottom box, it is forbidden to block the threaded hole on the right plate with cement mortar.
3. The maximum bearing torque of the grounding screw on the bottom box is 20n. m.
4. It is recommended to install the support panel after the wall is puttying.
Company Profile
1. Founded in 2005, it specializes in the production, R & D and sales of indoor distribution box, multi-media box and power cabinet.
2. The product design takes safety as the core concept, and has obtained 33 design patents, 20 utility model patents and 2 invention patents.
3. It has served 1350 leading real estate companies and 1600 panel builder.
4. In 2015, the sales revenue will exceed 100 million, and the annual box sales volume will reach 3 million pieces.
5. After 16 years of development and customer support, it has also gained a certain reputation.
