Product Details:
|
| Name: | 32way Distribution Box | Material: | Steel+plastic |
|---|---|---|---|
| Surface Treatment: | Painted | Door: | Transparent /white |
| Mounting Type: | Recessed | Degree Of Protection: | IP40 |
| Accessories: | Din Rail+ Brass Teriminal | Function: | Rust Resisting |
| Gurantee Period: | 2 Years | Application: | Indoor/outdoor |
| High Light: | 2 Row MCB Power Distribution Box,Powder Coated MCB Power Distribution Box,32 Way MCB Electric Distribution Panel |
||

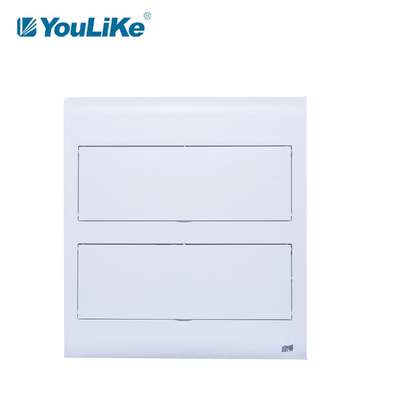

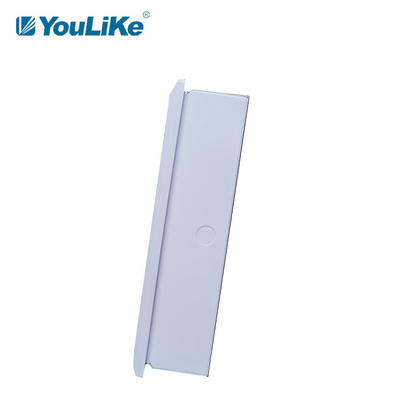

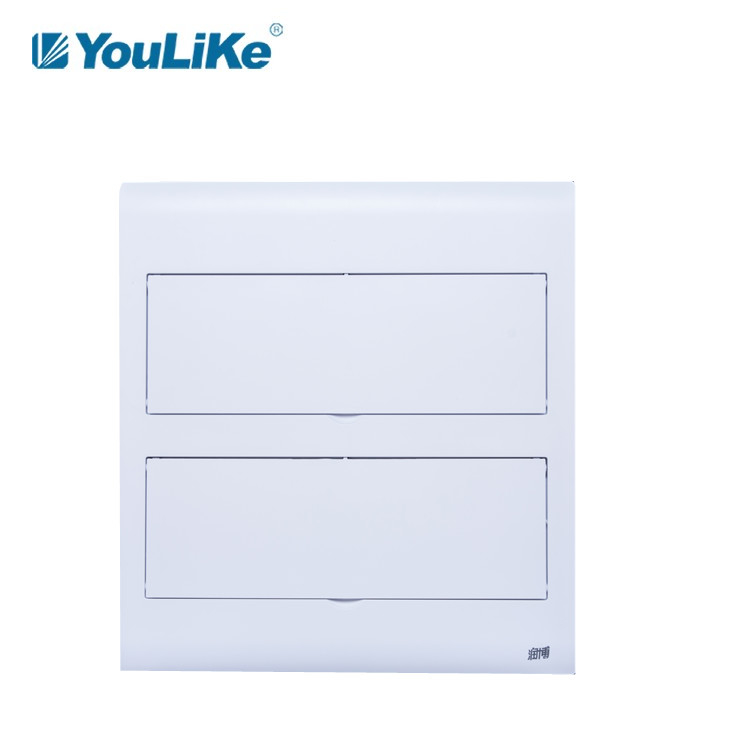

2 Row 32 Way Powder Coated Steel MCB Power Distribution Box Electric Distribution Panel
Product Specification
| Name | 32 way mcb distribution box |
| Ways | 32way |
| Color | white |
| Material | powder coated steel + PC |
| Base Box Size | 354*380*90*1.0mm |
| Cover Size | 378*405*18.5(27) |
| Approval | CE |
| Row | 2 |
| Installation Type | flush type |
| Warranty | 2 years |
| Package | in color box or neutral carton |
| OEM | accept |
Product Advantage
1. Select the copper bar with 57.5% content, which can not crack and slide the wire continuously, and the conductivity is smooth Add line cards to better standardize wiring.
2. The grounding screw is made of stainless steel, which is safe and reliable.
3. All panels are made of brand-new materials, durable and beautiful.
4. The new hinge structure makes users safer.
5. The box mouth adopts double bending design to facilitate cleaning and protect the safety of devices.
| 1. Raw matreial | 2.Components | 3. Inspection |
| steel plate from leading steel companies | safe and secure earth system | material analysis |
| brand new plastic | 57.5% brass composition terminal | inspection for individual process |
| stable supply chain | multi-folded boarder | semi-final product inspection |
| 1,200+ times patent hinge | final product inspection | |
| wire clamp |
Attention Points
1. When the bottom box is embedded with concrete and poured on site, the bottom box needs to be supported up and down, left and right to prevent the bottom box from deformation.
2. During the installation of the upper wall of the bottom box, it is forbidden to block the threaded hole on the right plate with cement mortar.
3. The maximum bearing torque of the grounding screw on the bottom box is 20n. m.
4. It is recommended to install the support panel after the wall is puttying.
Company Profile
1. Founded in 2005, it specializes in the production, R & D and sales of indoor distribution box, multi-media box and power cabinet.
2. The product design takes safety as the core concept, and has obtained 33 design patents, 20 utility model patents and 2 invention patents.
3. It has served 1350 leading real estate companies and 1600 panel builder.
4. In 2015, the sales revenue will exceed 100 million, and the annual box sales volume will reach 3 million pieces.
5. After 16 years of development and customer support, it has also gained a certain reputation.
