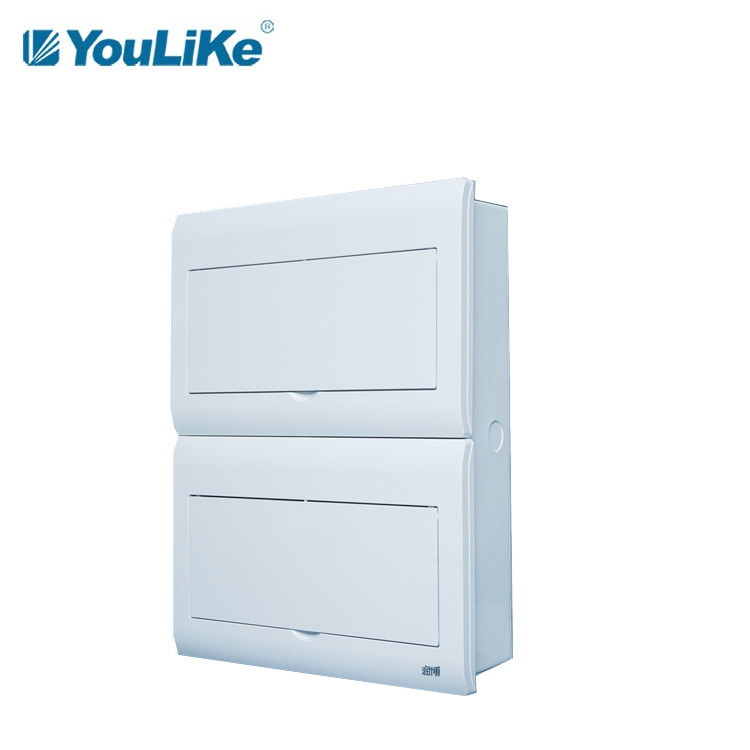

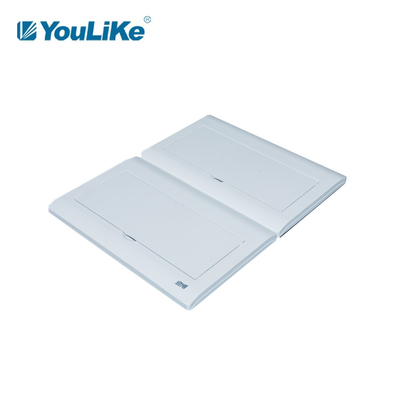

Single Phase Consumer Units Mcb Box Distribution 26 Way Mcb Distribution Board

Single Phase Consumer Units Mcb Box Distribution 26 Way Mcb Distribution Board

Product Specification

Product Features

1.High impact resistance material:PC,ABS.

2. Safe and full material copper terminals.

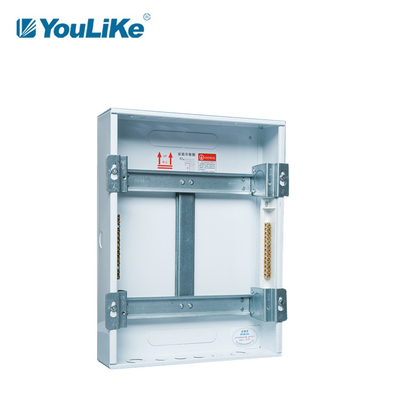

3.Adjustable din-rail:move ascend and descend.

4. Ultra-large space box for moving and easy wiring.

5. Flush mounting and surface mounting available.

6.Function of Distribution box:protect MCB and other devices.

7. Application: widely used in low voltage distribution networks for power supplying of consumers and commercial buildings.

Plastic Parts Test Result

1. Incandescent wire test at 650℃.

2. Anti-UV test (to reveal plastic anti-ageing performance) ≥250hrs.

3. Xenon arc lamp test ≥250hrs.

4. Hinge operation test ≥10,000 times no break.

Attention Points

1. When the bottom box is embedded with concrete and poured on site, the bottom box needs to be supported up and down, left and right to prevent the bottom box from deformation.

2. During the installation of the upper wall of the bottom box, it is forbidden to block the threaded hole on the right plate with cement mortar.

3. The maximum bearing torque of the grounding screw on the bottom box is 20n. m.

4. It is recommended to install the support panel after the wall is puttying.

Company Profile

1. Founded in 2005, it specializes in the production, R & D and sales of indoor distribution box, multi-media box and power cabinet.

2. The product design takes safety as the core concept, and has obtained 33 design patents, 20 utility model patents and 2 invention patents.

3. It has served 1350 leading real estate companies and 1600 panel builder.

4. In 2015, the sales revenue will exceed 100 million, and the annual box sales volume will reach 3 million pieces.

5. After 16 years of development and customer support, it has also gained a certain reputation.
