Product Details:
|
| Product Name: | 21way Distribution Board | Box Material: | 1.0&1.2mm Powder Coated Steel |
|---|---|---|---|
| Door Material: | HIPS/PC | Rated Voltage: | AC400v(+/-20%) |
| Way Type: | 10ways | Application: | Indoor Light Distribution |
| Door: | Transparent | Way Dimension: | 18mm |
| Mounting Type: | Flush Mounted | Ingress Protection: | IP40 |
| Warrantly: | 2 Years | Rated Currency: | 55A/63A |
| High Light: | Plastic Electrical Power MCB Distribution Box,21 Way MCB Distribution Box,Flush Mounted MCB Plastic Distribution Box |
||

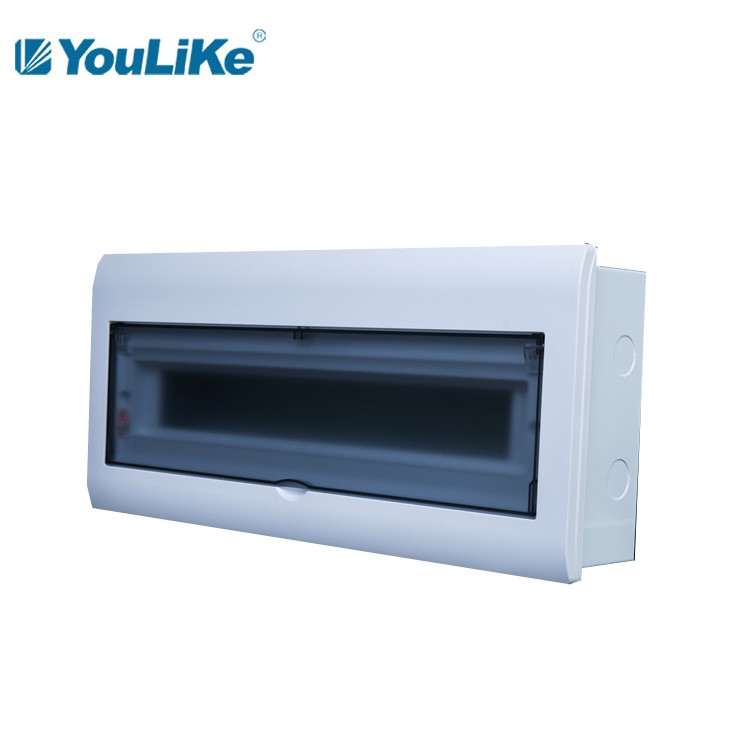

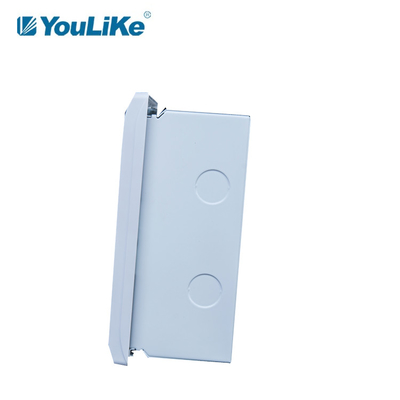

21 Way Flush Mounted Single Phase Plastic Electrical Power MCB Distribution Box With Din Rail
Product Feature
1. Good quality bottom box, safe and reliable.
2. High quality copper bar, durable.

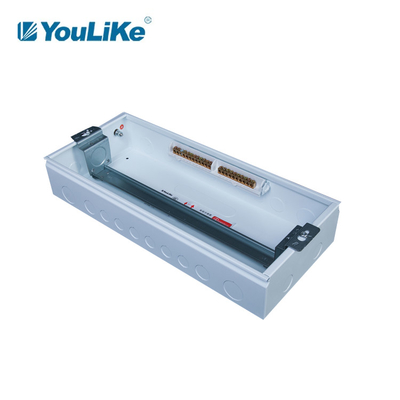

3. Straighten din rail and stabilize the support.
4. Stainless steel screws have high hardness and good mechanical properties.
5. The separate hinge is stable enough.
Plastic Parts Test Result
1. Incandescent wire test at 650℃.
2. Anti-UV test (to reveal plastic anti-ageing performance) ≥250hrs.
3. Xenon arc lamp test ≥250hrs.
4. Hinge operation test ≥10,000 times no break.
Company Information
Production Capacity:
1. 30,000 square meters production center, including metallic process line, powder coating line, plastic injection, assemble line, customization center and etc.
2. 4,000,000 pieces annual output.
3. Automatic box process line, to ensure quality stablility and production efficience.
Market service:
1. yesr service for over 1,800 panel builders and 2,000 real estate companies.
2. Over 500 fully skilled support team, 22 national branches.
3. Stable delivery time all year long as 15days.
R&D ability:
1. Over 65 national patents, to ensure every single product is 100% original.
2. Product update and new product issue in each 1-2 years.
Specifications of RB series, Flush
| Model | Way | Cover size | Box size |
Terminals |
Knockouts | ||
| L*H*T (mm) | L*W*D*T(mm) | size(mm) | PE | N | one side qty | ||
|
RBP-A 110 |
10way | 268×210×17.5(26) | 246×192×80×0.8 | 6×10 | 6 | 5 | 5 |
|
RBP-A 113 |
13way | 322×210×17.5(26) | 300×192×80×0.8 | 6×10 | 6 | 5 | 6 |
|
RBP-A 116 |
16way | 376×210×17.5(26) | 354×192×80×0.8 | 6×10 | 8 | 7 | 7 |
|
RBP-A 118 |
18way | 412×210×17.5(26) | 390×192×80×0.8 | 6×10 | 8 | 7 | 8 |
|
RBP-A 121 |
21way | 466×210×17.5(26) | 444×192×80×0.8 | 6×10 | 11 | 10 | 10 |
|
RBP-A 124 |
24way | 524×250×18.5(27) | 498×230×90×1.0 | 6×10 | 11 | 10 | 10 |
|
RBP-A 232 |
32way | 378×405×18.5(27) | 354×380×90×1.0 | 6×10 | 13 | 12 | 7 |
|
RBP-A 242 |
42way | 468×405×18.5(27) | 444×380×90×1.0 | 6×10 | 16 | 15 | 10 |
Certification
Packing
| Model | Carton size | Volume/ctn | Pcs/ctn | Calculated weight(kgs/ctn) | |
| mm | m³ | net weight | gross weight | ||
| RBP-A 110 | 655×300×385 | 0.0756 | 5 | 17.10 | |
| RBP-A 113 | 655×310×440 | 0.0893 | 5 | 9.25 | |
| RBP-A 116 | 655×310×495 | 0.1005 | 5 | 10.20 | |
| RBP-A 118 | 655×310×545 | 0.1107 | 5 | 11.65 | |
| RBP-A 121 | 655×320×600 | 0.1258 | 5 | 12.40 | |
| RBP-A 124 | 460×135×385 | 0.0240 | 1 | 5.40 | |
| RBP-A 232 | 460×135×440 | 0.0273 | 1 | 6.70 | |
| RBP-A 242 | 460×135×530 | 0.0329 | 1 | 3.60 | |
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no additional charge.
