Product Details:
|
| Product Name: | 16way Flush Mounted Electrical Distribution Board | Box Material: | 1.0&1.2mm Powder Coated Steel |
|---|---|---|---|
| Door Material: | HIPS/PC | Ingress Protection: | IP40 |
| Application: | Indoor Light Distribution | Door: | Transparent |
| Warrantly: | 2 Years | Way Dimension: | 18mm |
| Mounting Type: | Flush Mounted | ||
| High Light: | Flush Mount Electrical Distribution Panel Board,16 Way Electrical Distribution Panel Board,Lighting Control MCB Distribution Box |
||
16 Way Flush Mount Electrical Distribution Panel Board Circuit Breaker For Lighting Control
Main Features
1.High impact resistance material:PC,ABS.
2. Safe and full material copper terminals.
3.Adjustable din-rail:move ascend and descend.
4. Ultra-large space box for moving and easy wiring.
5. Flush mounting and surface mounting available.
6.Function of Distribution box:protect MCB and other devices.
7. Application: widely used in low voltage distribution networks for power supplying of consumers and commercial buildings.
Technology
1. The new hinge structure adopts metal shaft core, which is stable, reliable and durable.
2. The special stainless steel shrapnel fixes the movable door in the ideal position to ensure that the force of opening and closing the movable door is moderate, the rotation is smooth and there is no abnormal noise.
3. The internal guide rail bracket is composed of all metal parts, with lifting and rotation adjustment function and pre suspension function.
4. The grounding screw is made of stainless steel, the stud is uncoated and the grounding is more sufficient.
| Model Number | RB-A 116 |
| Color | white |
| Material | powder coated steel for body,HIPS for cover, PC for door |
| Base Box Size | 354×192×80×0.8mm |
| Cover Size | 376×210×17.5(26)mm |
| Rated Voltage | AC400v(+/-20%) |
| Accessories | bolt, din rail, terminal |
| Application | consumers and commercial buildings |
| Warranty | 2 years |
| Package | in color box or neutral carton |
| OEM | accept |

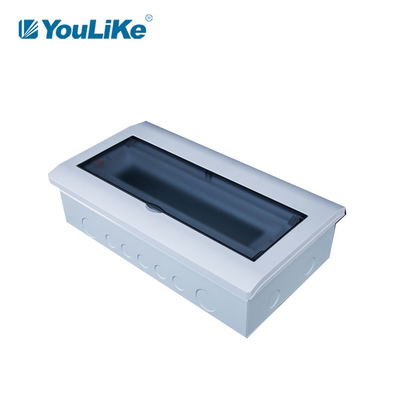

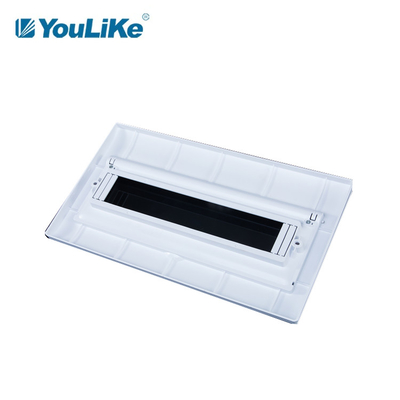

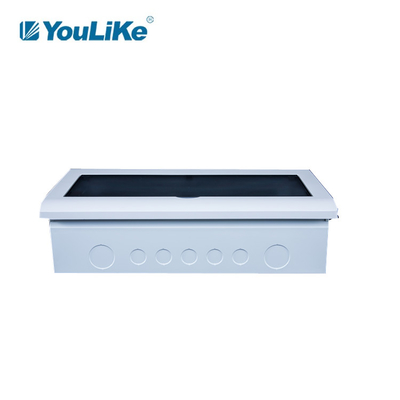

Details Image
Specifications of RB series, Flush
| Model | Way | Cover size | Box size |
Terminals |
Knockouts | ||
| L*H*T (mm) | L*W*D*T(mm) | size(mm) | PE | N | one side qty | ||
|
RBP-A 110 |
10way | 268×210×17.5(26) | 246×192×80×0.8 | 6×10 | 6 | 5 | 5 |
|
RBP-A 113 |
13way | 322×210×17.5(26) | 300×192×80×0.8 | 6×10 | 6 | 5 | 6 |
|
RBP-A 116 |
16way | 376×210×17.5(26) | 354×192×80×0.8 | 6×10 | 8 | 7 | 7 |
|
RBP-A 118 |
18way | 412×210×17.5(26) | 390×192×80×0.8 | 6×10 | 8 | 7 | 8 |
|
RBP-A 121 |
21way | 466×210×17.5(26) | 444×192×80×0.8 | 6×10 | 11 | 10 | 10 |
|
RBP-A 124 |
24way | 524×250×18.5(27) | 498×230×90×1.0 | 6×10 | 11 | 10 | 10 |
|
RBP-A 232 |
32way | 378×405×18.5(27) | 354×380×90×1.0 | 6×10 | 13 | 12 | 7 |
|
RBP-A 242 |
42way | 468×405×18.5(27) | 444×380×90×1.0 | 6×10 | 16 | 15 | 10 |
About Us
Production Capacity:
1. 30,000 square meters production center, including metallic process line, powder coating line, plastic injection, assemble line, customization center and etc.
2. 4,000,000 pieces annual output.
3. Automatic box process line, to ensure quality stablility and production efficience.
Market service:
1. year service for over 1,800 panel builders and 2,000 real estate companies.
2. Over 500 fully skilled support team, 22 national branches.
3. Stable delivery time all year long as 15days.
R&D ability:
1. Over 65 national patents, to ensure every single product is 100% original.
2. Product update and new product issue in each 1-2 years.
