Product Details:
|
| Product Name: | 16way Flush Mounted Electrical Distribution Board | Mounting Type: | Flush Mounted |
|---|---|---|---|
| Box Material: | 1.0&1.2mm Powder Coated Steel | Door Material: | HIPS/PC |
| Way Type: | 16ways | Ingress Protection: | IP40 |
| Way Dimension: | 18mm | Application: | Indoor Light Distribution |
| Door: | Transparent | Warrantly: | 2 Years |
| High Light: | IP40 Single Phase Power Distribution Box,16 Way Electrical Power Distribution Box,Powder Coated Steel MCB Distribution Box |
||
Electrical Equipment Single Phase Distribution Box 16 Way Electrical Circuit Breaker
Quality Assurance
1. Official quality assurance,two-year warranty.
2. The plate thickness meets the national standard without error.
3. The materials used in the product are all new and high-quality materials,and there are no waste recycled materials.
4. The product has China Compulsory Product Certification number and meets the national CCC certification standard.
Plastic Parts Test Result
1. Incandescent wire test at 650℃.
2. Anti-UV test (to reveal plastic anti-ageing performance) ≥250hrs.
3. Xenon arc lamp test ≥250hrs.
4. Hinge operation test ≥10,000 times no break.
Attention Points
1. When the bottom box is embedded with concrete and poured on site, the bottom box needs to be supported up and down, left and right to prevent the bottom box from deformation.
2. During the installation of the upper wall of the bottom box, it is forbidden to block the threaded hole on the right plate with cement mortar.
3. The maximum bearing torque of the grounding screw on the bottom box is 20n. m4. It is recommended to install the support panel after the wall is puttying.
Product Parameters
| Model | RB-A 116 |
| Mounting Type | flush mounting |
| Color | white |
| Material | metal+plastic |
| Base Box Size | 354*192*80*0.8mm |
| Cover Size | 376*210*17.5(26)mm |
| Accessories | bolt, din rail , terminal |
| Application | consumers and commercial buildings |
| Approval | CE,CCC |
| Circuit Breaker Rail | galvanised Steel |
| Warranty | 2 years |
| Package | in color box or neutral carton |
| OEM | offered |
Specifications of RB series, Flush
| Model | Way | Cover size | Box size |
Terminals |
Knockouts | ||
| L*H*T (mm) | L*W*D*T(mm) | size(mm) | PE | N | one side qty | ||
|
RBP-A 110 |
10way | 268×210×17.5(26) | 246×192×80×0.8 | 6×10 | 6 | 5 | 5 |
|
RBP-A 113 |
13way | 322×210×17.5(26) | 300×192×80×0.8 | 6×10 | 6 | 5 | 6 |
|
RBP-A 116 |
16way | 376×210×17.5(26) | 354×192×80×0.8 | 6×10 | 8 | 7 | 7 |
|
RBP-A 118 |
18way | 412×210×17.5(26) | 390×192×80×0.8 | 6×10 | 8 | 7 | 8 |
|
RBP-A 121 |
21way | 466×210×17.5(26) | 444×192×80×0.8 | 6×10 | 11 | 10 | 10 |
|
RBP-A 124 |
24way | 524×250×18.5(27) | 498×230×90×1.0 | 6×10 | 11 | 10 | 10 |
|
RBP-A 232 |
32way | 378×405×18.5(27) | 354×380×90×1.0 | 6×10 | 13 | 12 | 7 |
|
RBP-A 242 |
42way | 468×405×18.5(27) | 444×380×90×1.0 | 6×10 | 16 | 15 | 10 |

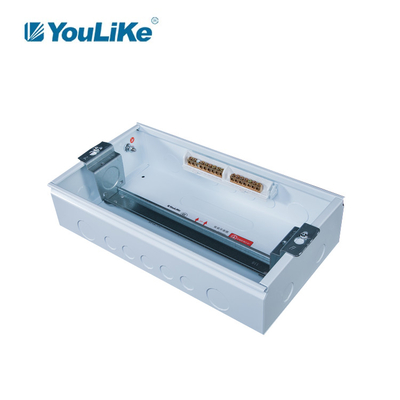

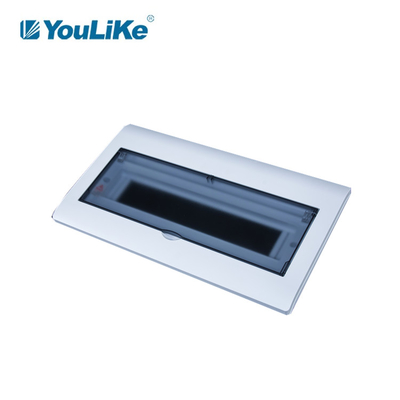

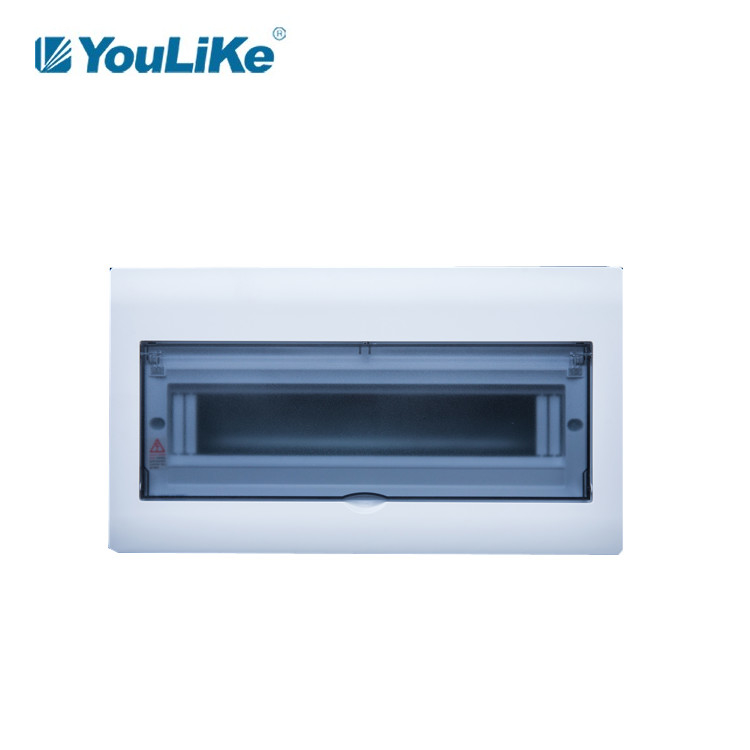

Product Details Demonstration
About Us
YouLike is an experienced and reliable manufacturer of low-voltage electrics,and produce distribution box, switch box, MCB consumer units with OEM and ODM services professionally.We have a professional technical team to provide customers with customized production and services.Our production comply with ISO9001 standard also approved by CE, CCC test.
Production Capacity:
1. 30,000 square meters production center, including metallic process line, powder coating line, plastic injection, assemble line, customization center and etc.
2. 4,000,000 pieces annual output.
3. Automatic box process line, to ensure quality stablility and production efficience.
Market service:
1. year service for over 1,800 panel builders and 2,000 real estate companies.
2. Over 500 fully skilled support team, 22 national branches.
3. Stable delivery time all year long as 15days.
R&D ability:
1. Over 65 national patents, to ensure every single product is 100% original.
2. Product update and new product issue in each 1-2 years.
