Product Details:
|
| Product Name: | 13 Way Flush Mounted Electrical Distribution Board | Mounting Type: | Flush Mounted |
|---|---|---|---|
| Box Material: | 1.0&1.2mm Powder Coated Steel | Door Material: | HIPS/PC |
| Way Type: | 10ways | Ingress Protection: | IP40 |
| Way Dimension: | 18mm | Application: | Indoor Light Distribution |
| Door: | Transparent | Warrantly: | 2 Years |
| High Light: | 13 Way Distribution Panel Box,1.2mm Steel Distribution Panel Box,Flush Mounted Electrical Mcb Board |
||

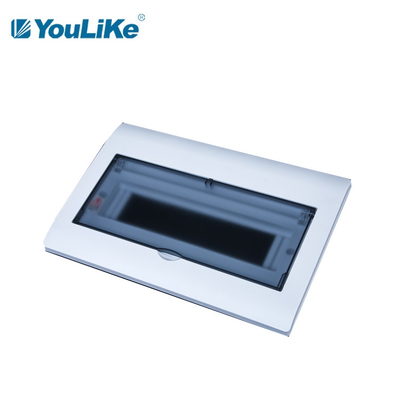

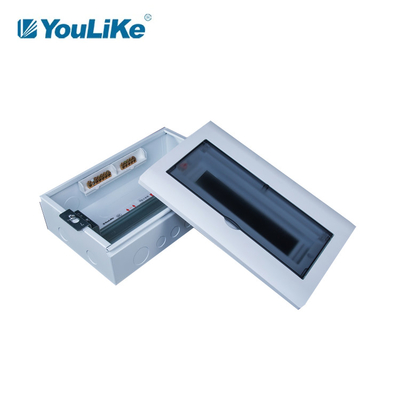

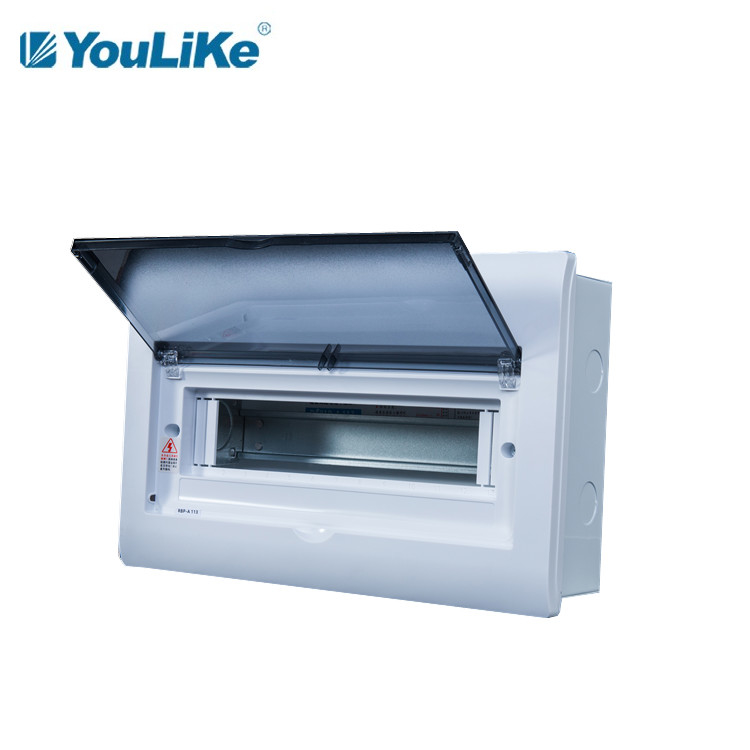

Plastic Consumer Unit 13 Way Distribution Panel Box Electrical Mcb Board
Product Feature
1. Box material: powder coated steel.
2. Cover frame material: PC.
3. Door material: PC (transparent door and white door ).
4. All plastic parts : without specific flame retardant.
5. Pastic can be customized to flame retardant (grade V1~V0 depends on material choosed).
Plastic Parts Test Result
1. Incandescent wire test at 650℃.
2. Anti-UV test (to reveal plastic anti-ageing performance) ≥250hrs.
3. Xenon arc lamp test ≥250hrs.
4. Hinge operation test ≥10,000 times no break.
Attention Points
1. When the bottom box is embedded with concrete and poured on site, the bottom box needs to be supported up and down, left and right to prevent the bottom box from deformation.
2. During the installation of the upper wall of the bottom box, it is forbidden to block the threaded hole on the right plate with cement mortar.
3. The maximum bearing torque of the grounding screw on the bottom box is 20n. m4. It is recommended to install the support panel after the wall is puttying.
Specifications of RB series, Flush
| Model | Way | Cover size | Box size |
Terminals |
Knockouts | ||
| L*H*T (mm) | L*W*D*T(mm) | size(mm) | PE | N | one side qty | ||
|
RBP-A 110 |
10way | 268×210×17.5(26) | 246×192×80×0.8 | 6×10 | 6 | 5 | 5 |
|
RBP-A 113 |
13way | 322×210×17.5(26) | 300×192×80×0.8 | 6×10 | 6 | 5 | 6 |
|
RBP-A 116 |
16way | 376×210×17.5(26) | 354×192×80×0.8 | 6×10 | 8 | 7 | 7 |
|
RBP-A 118 |
18way | 412×210×17.5(26) | 390×192×80×0.8 | 6×10 | 8 | 7 | 8 |
|
RBP-A 121 |
21way | 466×210×17.5(26) | 444×192×80×0.8 | 6×10 | 11 | 10 | 10 |
|
RBP-A 124 |
24way | 524×250×18.5(27) | 498×230×90×1.0 | 6×10 | 11 | 10 | 10 |
|
RBP-A 232 |
32way | 378×405×18.5(27) | 354×380×90×1.0 | 6×10 | 13 | 12 | 7 |
|
RBP-A 242 |
42way | 468×405×18.5(27) | 444×380×90×1.0 | 6×10 | 16 | 15 | 10 |
Exhibitions
Packing
| Model | Carton size | Volume/ctn | Pcs/ctn | Calculated weight(kgs/ctn) | |
| mm | m³ | net weight | gross weight | ||
| RBP-A 110 | 655×300×385 | 0.0756 | 5 | 17.10 | |
| RBP-A 113 | 655×310×440 | 0.0893 | 5 | 9.25 | |
| RBP-A 116 | 655×310×495 | 0.1005 | 5 | 10.20 | |
| RBP-A 118 | 655×310×545 | 0.1107 | 5 | 11.65 | |
| RBP-A 121 | 655×320×600 | 0.1258 | 5 | 12.40 | |
| RBP-A 124 | 460×135×385 | 0.0240 | 1 | 5.40 | |
| RBP-A 232 | 460×135×440 | 0.0273 | 1 | 6.70 | |
| RBP-A 242 | 460×135×530 | 0.0329 | 1 | 3.60 | |
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no additional charge.
Company Information
Production Capacity:
1. 30,000 square meters production center, including metallic process line, powder coating line, plastic injection, assemble line, customization center and etc.
2. 4,000,000 pieces annual output.
3. Automatic box process line, to ensure quality stablility and production efficience.
Market service:
1. yesr service for over 1,800 panel builders and 2,000 real estate companies.
2. Over 500 fully skilled support team, 22 national branches.
3. Stable delivery time all year long as 15days.
R&D ability:
1. Over 65 national patents, to ensure every single product is 100% original.
2. Product update and new product issue in each 1-2 years.
