Product Details:
|
| Product Name: | Surface Mounted 7 Way Electrical Distribution Board | Cover Frame Material: | ABS |
|---|---|---|---|
| Door Material: | ABS/PC | Box Material: | 1.0mm Powder Coated Steel |
| Rated Voltage: | 400V+/-20% | Rated Current: | 55A/ 63A |
| Window: | Transparent | Certificate: | CCC,CE |
| High Light: | Plastic Electrical Mcb Consumer Unit,7 Way Mcb Consumer Unit,Surface Mount ABS MCB Distribution Box |
||

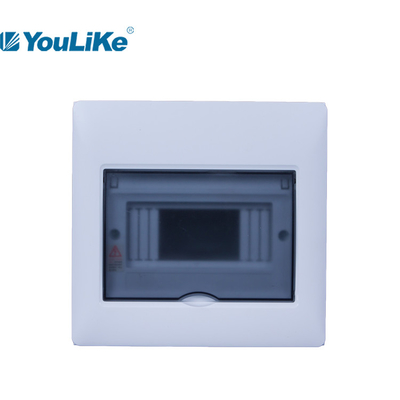

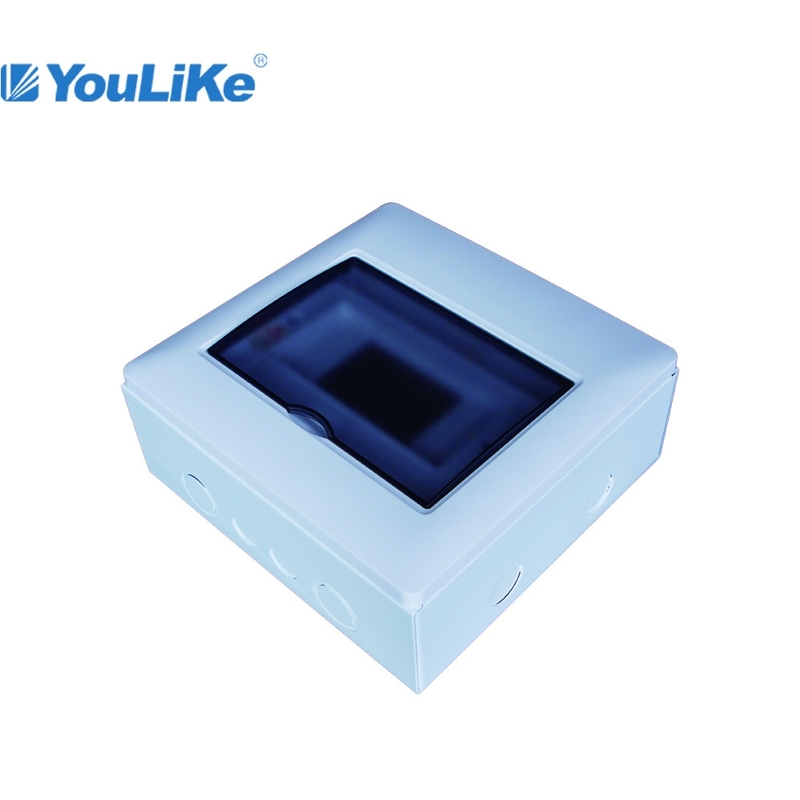

Low Voltage Surface Mount Plastic Electrical 7 Way Mcb Consumer Unit Distribution Box
Main Features

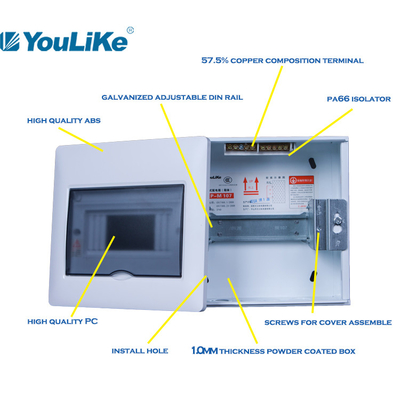

1. High impact resistance material:PC,ABS
2. Safe and full material copper terminals.
3. Adjustable din-rail:move ascend and descend.
4. Ultra-large space box for moving and easy wiring.
5. Flush mounting and surface mounting available.
6. Function of Distribution box:protect MCB and other devices.
7. Application: widely used in low voltage distribution networks for power supplying of consumers and commercial buildings.
Plastic Parts Test Result
1. Incandescent wire test at 650℃.
2. Anti-UV test (to reveal plastic anti-ageing performance) ≥250hrs.
3. Xenon arc lamp test ≥250hrs.
4. Hinge operation test ≥10,000 times no break.
Attention Points
1. When the bottom box is embedded with concrete and poured on site, the bottom box needs to be supported up and down, left and right to prevent the bottom box from deformation.
2. During the installation of the upper wall of the bottom box, it is forbidden to block the threaded hole on the right plate with cement mortar.
3. The maximum bearing torque of the grounding screw on the bottom box is 20n. m.
4. It is recommended to install the support panel after the wall is puttying.
Specifications of BE series, Surface
| Model | Way | Cover size | Box size |
Terminals |
Knockouts | ||
| L*H*T (mm) | L*W*D*T(mm) | size(mm) | PE | N | one side qty | ||
| BEP-M 104 | 4way | 168×164×16.5(22.0) | 168×164×80×1.0 | 6*10 | 4 | 5 | 2 |
| BEP-M 107 | 7way | 222×214×18.5(24.0) | 221×213×80×1.0 | 6*10 | 7 | 6 | |
| BEP-M 110 | 10way | 276×214×18.5(24.0) | 275×213×80×1.0 | 6*10 | 8 | 7 | 7 |
| BEP-M 112 | 12way | 312×214×18.5(24.0) | 311×213×80×1.0 | 6*10 | 8 | 9 | 8 |
| BEP-M 114 | 14way | 348×214×18.5(24.0) | 347×213×80×1.0 | 6*10 | 11 | 10 | 9 |
| BEP-M 116 | 16way | 384×214×18.5(24.0) | 383×213×80×1.0 | 6*10 | 11 | 10 | 9 |
| BEP-M 118 | 18way | 420×214×18.5(24.0) | 419×213×80×1.0 | 6*10 | 13 | 12 | 10 |
| BEP-M 120 | 20way | 456×214×18.5(24.0) | 455×213×80×1.0 | 6*10 | 13 | 12 | 12 |
| BEP-M 228 | 28way | 351×381×19(26.5) | 350×380×95×1.2 | 6.4*12 | 16 | 15 | 9 |
| BEP-M 240 | 40way | 459×381×19(26.5) | 458×380×95×1.2 | 6.4*12 | 18 | 17 | 12 |
Product Details Demonstration
Packing
| Model | Carton size | Volume/ctn | Pcs/ctn | Calculated weight(kgs/ctn) | |
| mm | m³ | net weight | gross weight | ||
| BEP-M 104 | 525*215*355 | 0.0401 | 10 | 9.58 | |
| BEP-M 107 | 525*290*455 | 0.0693 | 10 | 14.66 | |
| BEP-M 110 | 525*345*455 | 0.0825 | 10 | 17.10 | |
| BEP-M 112 | 525*235*405 | 0.0450 | 5 | 9.25 | |
| BEP-M 114 | 525*235*440 | 0.0543 | 5 | 10.20 | |
| BEP-M 116 | 525*235*495 | 0.0611 | 5 | 11.65 | |
| BEP-M 118 | 545*240*280 | 0.0367 | 2 | 6.70 | |
| BEP-M 120 | 460*135*385 | 0.0239 | 1 | 3.60 | |
| BEP-M 228 | 455*160*425 | 0.0310 | 1 | 4.05 | |
| BEP-M 240 | 510*160*460 | 0.0376 | 1 | 4.75 | |
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no additional charge.
