Product Details:
|
| Product Name: | Flush Mounted Power Distribution Box | Cover Frame Material: | HIPS |
|---|---|---|---|
| Window: | Opaque | Box Material: | Powder Coated Steel |
| Cover Size: | 316×240×22.5mm | Rated Currency: | 63A/80A |
| Phase Type: | Single | Mounting Type: | IP40 |
| High Light: | HIPS Cover Single Phase mcb box,32 Way Single Phase mcb box,Metal mcb box 32 way |
||

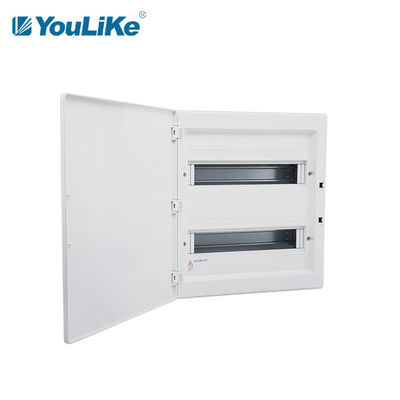

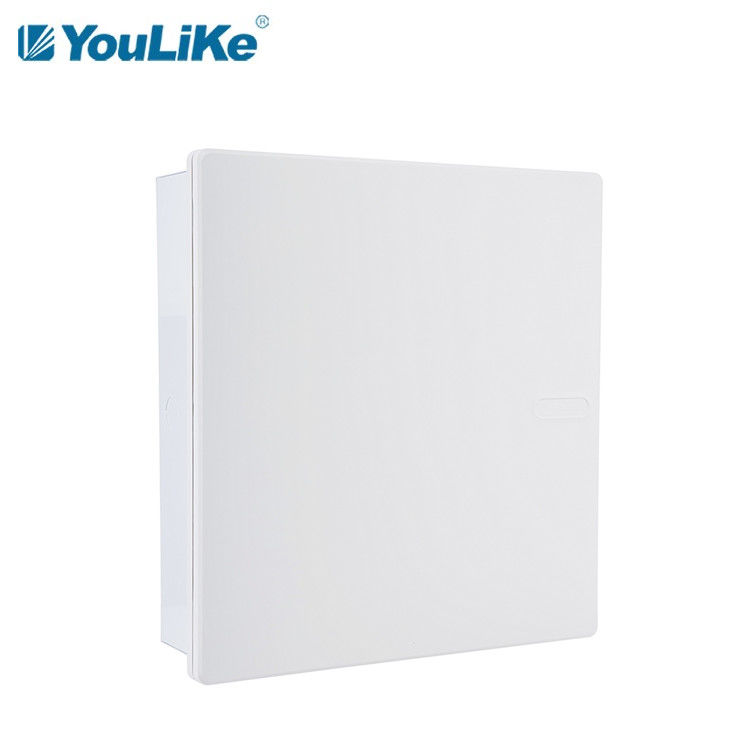

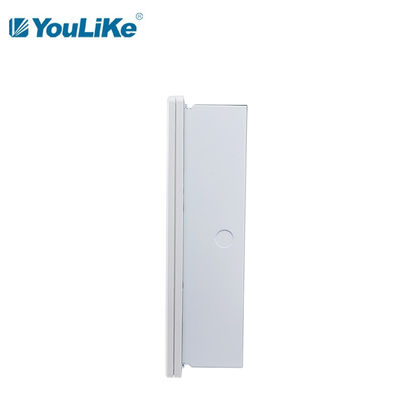

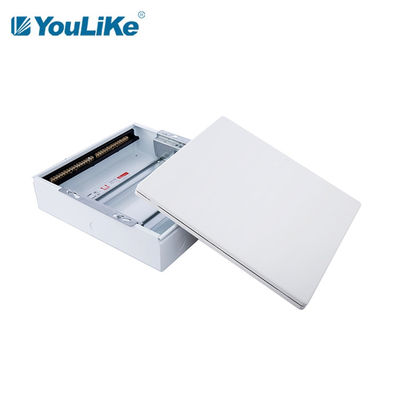

32way Single Phase Copper Bus Bar Electrical Metal Distribution Box For MCB Installation
Product Specification
1. Box to be powder coated steel, 1.0mm for 1rows, 1.2mm for 2rows.
2. Cover frame to be 1.2mm powder coated steel material.
3. Door to be 1.2mm powder coated steel.
4. All plastic parts are without specific flame retardant and qualified to pass incandescent wire test at 650℃.
5. Pastic can be customized to flame retardant (grade V1~V0 depends on material choosed).
6. The protection level reaches IP40.
Quality Assurance
1. national CCC certification standard.
2. The plate thickness meets the national standard without error.
3. All brand-new high-quality materials.
4. The protection level reaches IP40.
Attention Points
1. When the bottom box is embedded with concrete and poured on site, the bottom box needs to be supported up and down, left and right to prevent the bottom box from deformation.
2. During the installation of the upper wall of the bottom box, it is forbidden to block the threaded hole on the right plate with cement mortar.
3. The maximum bearing torque of the grounding screw on the bottom box is 20n. m.
4. It is recommended to install the support panel after the wall is puttying.
Specifications of M7 series, Flush
| Model | Way | Cover size | Box size |
Terminals |
Knockouts | ||
| L*H*T (mm) | L*W*D*T(mm) | size(mm) | PE | N | one side qty | ||
| M7-A 112 | 12way | 316*240*22.5 | 292*210*90*1.0 | 6*10 | 8 | 7 | 6 |
| M7-A 115 | 15way | 370*260*22.5 | 346*220*90*1.0 | 6*10 | 8 | 9 | 7 |
| M7-A 118 | 18way | 424*260*22.5 | 400*220*90*1.0 | 6*10 | 11 | 10 | 9 |
| M5-A 121 | 21way | 478*260*22.5 | 454*220*90*1.0 | 6*10 | 11 | 10 | 10 |
| M7-A 232 | 32way | 376*405*23.5 | 354*380*90*1.0 | 6.4*12 | 16 | 15 | 7 |
| M7-A 242 | 42way | 466*405*23.5 | 444*380*90*1.0 | 6.4*12 | 18 | 17 | 10 |
Office Overview Demonstration
Packing
| Model | Carton size | Volume/ctn | Pcs/ctn | Calculated weight(kgs/ctn) | |
| mm | m³ | net weight | gross weight | ||
| M7-A 112 | 640*345*525 | 0.1160 | 10 | 17.10 | |
| M7-A 115 | 640*285*410 | 0.0748 | 5 | 9.25 | |
| M7-A 118 | 640*285*465 | 0.0849 | 5 | 10.20 | |
| M7-A 121 | 640*285*515 | 0.0940 | 5 | 11.65 | |
| M7-A 232 | 460*150*440 | 0.0304 | 1 | 4.05 | |
| M7-A 242 | 525*150*470 | 0.0371 | 1 | 4.75 | |
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no additional charge.
