Product Details:
|
| Product Name: | Flush Mounted Power Distribution Box | Cover Frame Material: | HIPS |
|---|---|---|---|
| Window: | Opaque | Box Material: | Powder Coated Steel |
| Cover Size: | 316×240×22.5mm | Rated Currency: | 63A/80A |
| Model Number: | 18way | Protection Level: | IP40 |
| High Light: | 2 Row MCB Distribution Box,32 way MCB Distribution Box,2 Row 32 way mcb box |
||

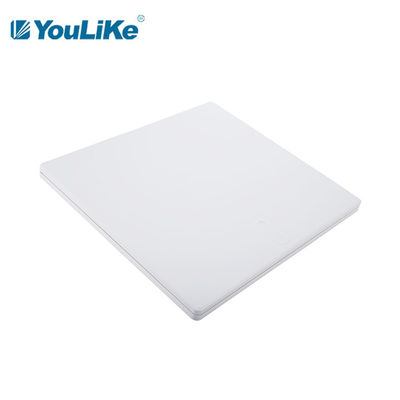

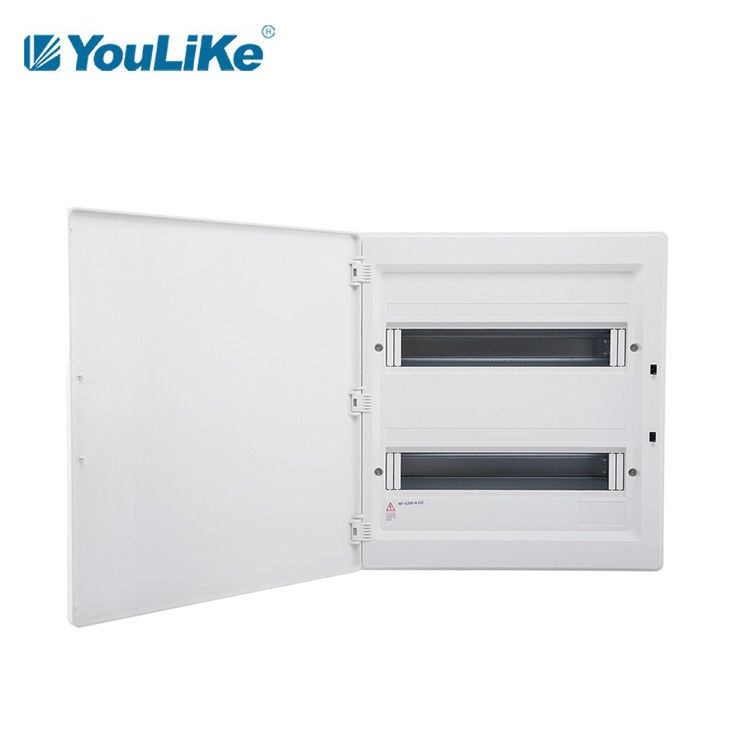

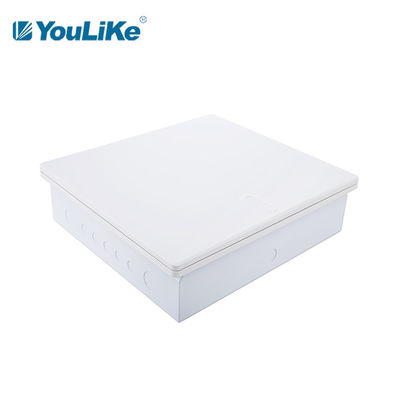

2 Row Type MCB Distribution Box With Opaque Cover Consumer Unit 32 Way Mcb Box
Product Advantage

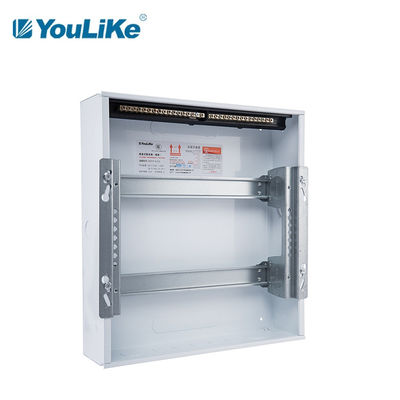

1. Select the copper bar with 57.5% content, which can not crack and slide the wire continuously, and the conductivity is smooth Add line cards to better standardize wiring.
2. The grounding screw is made of stainless steel, which is safe and reliable.
3. All panels are made of brand-new materials, durable and beautiful.
4. The new hinge structure makes users safer.
5. The box mouth adopts double bending design to facilitate cleaning and protect the safety of devices.
Product Development Orientation
1. Standardized bottom bow installation.
2. Standardized equipment factory connection.
3. Standardized construction connection.
4. Standardized telecom installation.
Specifications of M7 series, Flush
| Model | Way | Cover size | Box size |
Terminals |
Knockouts | ||
| L*H*T (mm) | L*W*D*T(mm) | size(mm) | PE | N | one side qty | ||
| M7-A 112 | 12way | 316*240*22.5 | 292*210*90*1.0 | 6*10 | 8 | 7 | 6 |
| M7-A 115 | 15way | 370*260*22.5 | 346*220*90*1.0 | 6*10 | 8 | 9 | 7 |
| M7-A 118 | 18way | 424*260*22.5 | 400*220*90*1.0 | 6*10 | 11 | 10 | 9 |
| M5-A 121 | 21way | 478*260*22.5 | 454*220*90*1.0 | 6*10 | 11 | 10 | 10 |
| M7-A 232 | 32way | 376*405*23.5 | 354*380*90*1.0 | 6.4*12 | 16 | 15 | 7 |
| M7-A 242 | 42way | 466*405*23.5 | 444*380*90*1.0 | 6.4*12 | 18 | 17 | 10 |
Office Overview Demonstration
Packing
| Model | Carton size | Volume/ctn | Pcs/ctn | Calculated weight(kgs/ctn) | |
| mm | m³ | net weight | gross weight | ||
| M7-A 112 | 640*345*525 | 0.1160 | 10 | 17.10 | |
| M7-A 115 | 640*285*410 | 0.0748 | 5 | 9.25 | |
| M7-A 118 | 640*285*465 | 0.0849 | 5 | 10.20 | |
| M7-A 121 | 640*285*515 | 0.0940 | 5 | 11.65 | |
| M7-A 232 | 460*150*440 | 0.0304 | 1 | 4.05 | |
| M7-A 242 | 525*150*470 | 0.0371 | 1 | 4.75 | |
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no additional charge.
Attention Points
1. When the bottom box is embedded with concrete and poured on site, the bottom box needs to be supported up and down, left and right to prevent the bottom box from deformation.
2. During the installation of the upper wall of the bottom box, it is forbidden to block the threaded hole on the right plate with cement mortar.
3. The maximum bearing torque of the grounding screw on the bottom box is 20n. m.
4. It is recommended to install the support panel after the wall is puttying.
