Product Details:
|
| Product Name: | MCB Distribution Box | Box Material: | HIPS/PC |
|---|---|---|---|
| Cover Frame Material: | HIPS/PC | Type: | Surface Type |
| Rated Voltage: | 400V+/-20% | Rated Current: | 55A/ 63A |
| Protection Level: | IP40 | OEM: | Approved |
| High Light: | 16 Way waterproof mcb box,IP40 waterproof mcb box,IP40 mcb box 16 way |
||

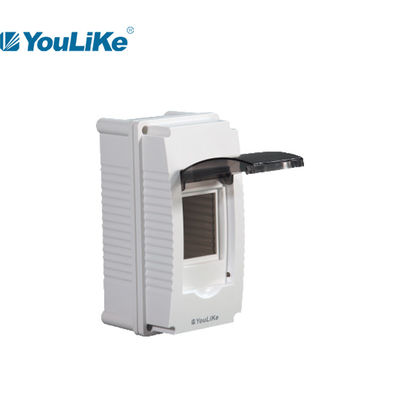

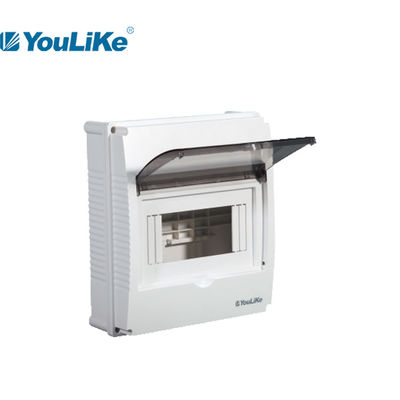

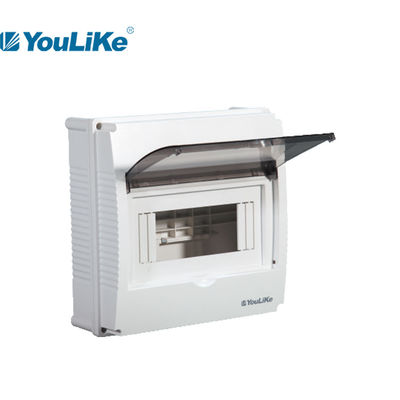

2-16 Way IP40 Water Proof Mcb Electrical Industrial Distribution Box Size Touch Switch Box
Product Characteristics
1. Box material: HIPS /PC
2. Cover frame material: HIPS / PC
3. Door material: AS /PC( transparent)
4. All plastic parts are without specific flame retardant and qualified to pass incandescent wire test at 650℃.
5. Pastic can be customized to flame retardant (grade V1~V0 depends on material choosed).
6. The surface is frosted and feels fine.
Plastic parts test result
1. Incandescent wire test at 650℃.
2. Anti-UV test (to reveal plastic anti-ageing performance) ≥250hrs.
3. Xenon arc lamp test ≥250hrs.
4. Hinge operation test ≥10,000 times no break.
5. Protection level can reach 40.
Product Details Demonstration

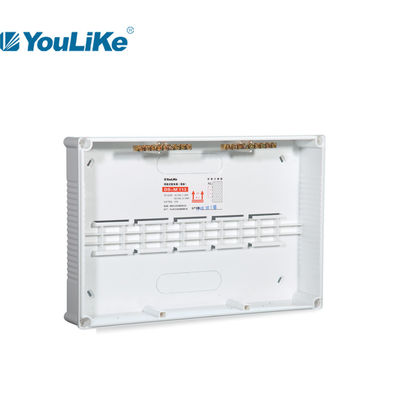

Plastic din rail Brass terminals Cover assemble
Specification
| Models | Cover size | Box size | Terminal |
Knock-outs (one side) |
||
| L*W*T(mm) | L*W*D(mm) | size(mm) | PE qty | N qty | ||
| DS-M 102 |
80*160*42.5 |
80*160*45 |
N/A | N/A | N/A |
1-Ø21 |
| DS-M 104 | 136*200*42.5 | 136*200*45 | 6*9 | 3 | 3 |
1-24*21 |
| DS-M 107 | 194*200*42.5 | 194*200*45 | 6*9 | 3 | 3 |
1-64*21 |
| DS-M 110 | 248*200*42.5 | 248*200*45 | 6*9 | 6 | 6 |
2-Ø26, 1-56*21 |
| DS-M 113 | 302*200*42.5 | 302*200*45 | 6*9 | 6 | 6 |
2-Ø26, 2-Ø21,1-64*21 |
| DS-M 116 | 356*200*42.5 | 356*200*45 | 6*9 | 8 | 8 | 2-Ø26, 2-Ø21,1-100*21 |
Application
DS series is used for indoor power distribution mainly for lighting control for residential and commercial buildings.
#1. The bottom box and the panel are matched by a stop, which is tightly assembled and has higher impact strength
#2. The corrugated structure on the left and right sides of the box has beautiful design and enhanced the overall strength
#3. The panel air switch window is provided with digit digital representation
#4. Both sides of the movable door are provided with self-locking buckles. When closed, the movable door is self locked in the most ideal position
