Product Details:
|
| Product Name: | MCB Distribution Box | Box Material: | 1.0mm Powder Coated Steel |
|---|---|---|---|
| Cover Frame Material: | 1.2mm Powder Coated Steel | Combination: | MCB |
| Rated Voltage: | 400V+/-20% | Protection Grade: | Dustproof IP40 |
| Application: | To Protect Circuit Breakers Installed In The Panel Box | Warranty: | 2 Years |
| High Light: | Low Voltage MCB Distribution Box,Electrical MCB Distribution Box,400V Electrical Distribution Box |
||

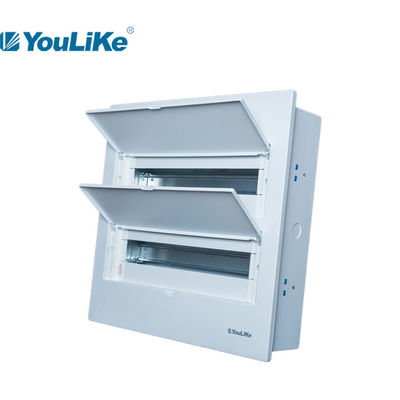

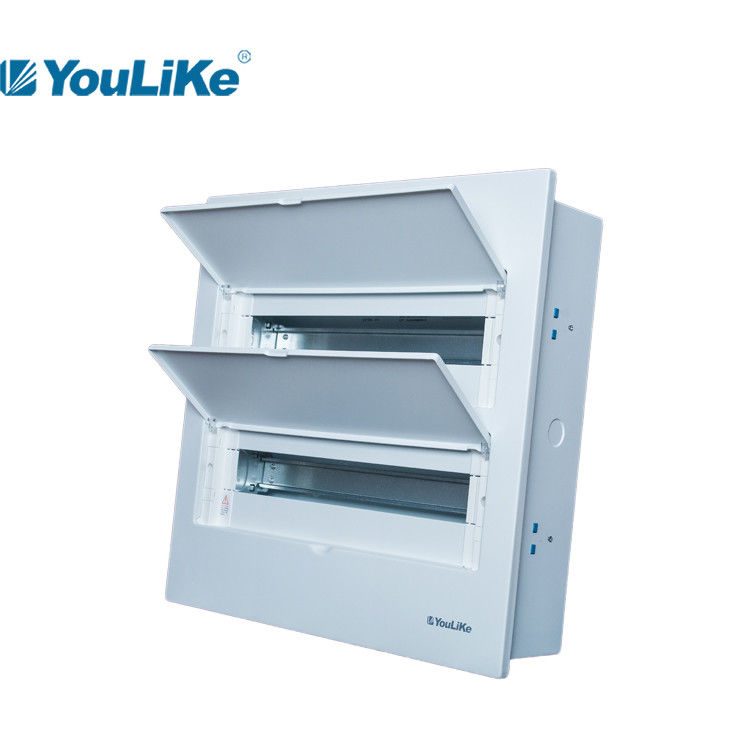

Flush Mounted 40 Way Electrical Equipment MCB Distribution Board With Full Metal
Product Specification
1. Box to be powder coated steel, 1.0mm for 1rows, 1.2mm for 2rows.

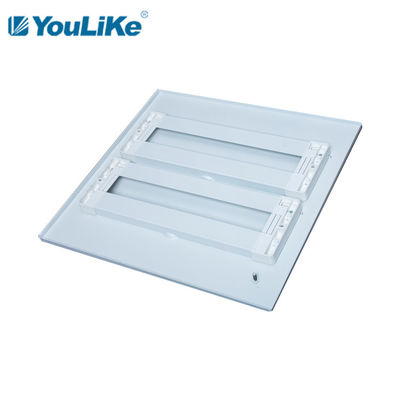

2. Cover frame to be 1.2mm powder coated steel material.
3. Door to be 1.2mm powder coated steel.
4. All plastic parts are without specific flame retardant and qualified to pass incandescent wire test at 650℃.
5. Pastic can be customized to flame retardant (grade V1~V0 depends on material choosed).
6. The protection level reaches IP40
Product Advantage

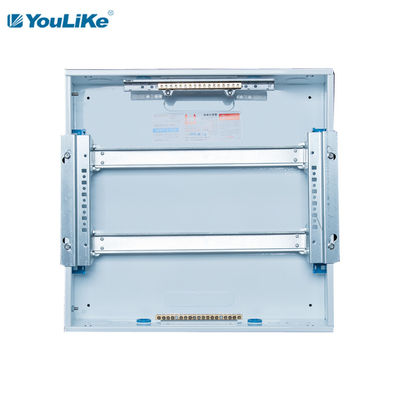

1. Select the copper bar with 60% content, which can not crack and slide the wire continuously, and the conductivity is smooth Add line cards to better standardize wiring.
2. The grounding screw is made of stainless steel, which is safe and reliable.
3. All panels are made of brand-new materials, durable and beautiful.
4. The new hinge structure makes users safer.
5. The box mouth adopts double bending design to facilitate cleaning and protect the safety of devices.
| Model | MXP-A 240 |
| Color | white |
| Material | powder coated steel + ABS/PC |
| Base Box Size | 449*420*100*1.2mm |
| Cover Size | 469*460*12(24.7)mm |
| Rated Voltage | ,AC400v(+/-20%) |
| Rated Frequency | 50-60H |
| Application | residential/commerical |
| N.W | 2 .5KG |
| Package | in color box or neutral carton |
| OEM | accept |
Product Details
Specifications of MX series, Flush
| Model | Way | Cover size | Box size |
Terminals |
Knockouts | ||
| L*H*T (mm) | L*W*D*T(mm) | size(mm) | PE | N | one side qty | ||
| MXP-A 110 | 10way | 272*240*10(24.7) | 256*210*90*1.0 | 6.4*12 | 6 | 7 | 6 |
| MXP-A 112 | 12way | 308*240*10(24.7) | 292*210*90*1.0 | 6.4*12 | 8 | 9 | 7 |
| MXP-A 114 | 14way | 344*260*10(24.7) | 328*230*90*1.0 | 6.4*12 | 8 | 9 | 8 |
| MXP-A 116 | 16way | 380*260*10(24.7) | 364*230*90*1.0 | 6.4*12 | 10 | 11 | 9 |
| MXP-A 118 | 18way | 416*260*10(24.7) | 400*230*90*1.0 | 6.4*12 | 10 | 11 | 10 |
| MXP-A 120 | 20way | 452*260*10(24.7) | 436*230*90*1.0 | 6.4*12 | 12 | 13 | 11 |
| MXP-A 224 | 24way | 325*460*12(24.7) | 305*420*100*1.2 | 8*12 | 12 | 13 | 7 |
| MXP-A 232 | 32way | 397*460*12(24.7) | 377*420*100*1.2 | 8*12 | 15 | 15 | 9 |
| MXP-A 240 | 40way | 469*460*12(24.7) | 449*420*100*1.2 | 8*12 | 17 | 17 | 11 |
About Us
1. Founded in 2005, it specializes in the production, R & D and sales of indoor distribution box, multi-media box and power cabinet.
2. The product design takes safety as the core concept, and has obtained 33 design patents, 20 utility model patents and 2 invention patents.
3. It has served 1350 leading real estate companies and 1600 panel builder.
4. In 2015, the sales revenue will exceed 100 million, and the annual box sales volume will reach 3 million pieces.
5. After 16 years of development and customer support, it has also gained a certain reputation.
