Product Details:
|
| Product Name: | MCB Distribution Box | Box Material: | 1.0mm Powder Coated Steel |
|---|---|---|---|
| Terminal Dimension: | 8x12mm | Phase: | 2 |
| Cover Frame Material: | 1.2mm Powder Coated Steel | Rated Voltage: | 400V+/-20% |
| Rated Currency: | 63A / 80A | Copper Bar Content: | 60% |
| High Light: | Standardized MCB Distribution Box,Two Phase MCB Distribution Box,Two Phase circuit breaker panel |
||

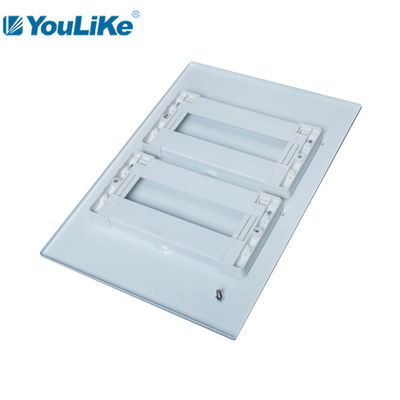

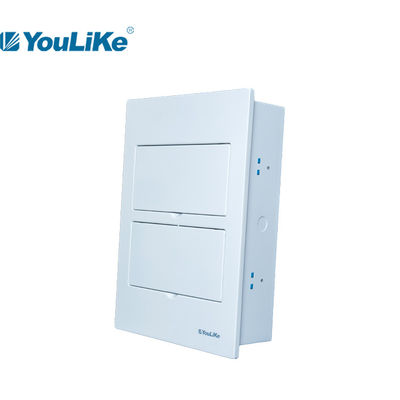

Waterproof Power Distribution Equipment 24 Way Metal Flush MCB Distribution Box
Product Development Orientation
1. Standardized bottom bow installation.
2. Standardized equipment factory connection.
3. Standardized construction connection.
4. Standardized telecom installation.
Product Advantage
1. Select the copper bar with 60% content, which can not crack and slide the wire continuously, and the conductivity is smooth Add line cards to better standardize wiring.
2. The grounding screw is made of stainless steel, which is safe and reliable.
3. All panels are made of brand-new materials, durable and beautiful.
4. The new hinge structure makes users safer.
5. The box mouth adopts double bending design to facilitate cleaning and protect the safety of devices.
Plastic parts test result
1. Incandescent wire test at 650℃.
2. Anti-UV test (to reveal plastic anti-ageing performance) ≥250hrs.
3. Xenon arc lamp test ≥250hrs.
4. Hinge operation test ≥10,000 times no break.
Specifications of MX series, Flush
| Model | Way | Cover size | Box size |
Terminals |
Knockouts | ||
| L*H*T (mm) | L*W*D*T(mm) | size(mm) | PE | N | one side qty | ||
| MXP-A 110 | 10way | 272*240*10(24.7) | 256*210*90*1.0 | 6.4*12 | 6 | 7 | 6 |
| MXP-A 112 | 12way | 308*240*10(24.7) | 292*210*90*1.0 | 6.4*12 | 8 | 9 | 7 |
| MXP-A 114 | 14way | 344*260*10(24.7) | 328*230*90*1.0 | 6.4*12 | 8 | 9 | 8 |
| MXP-A 116 | 16way | 380*260*10(24.7) | 364*230*90*1.0 | 6.4*12 | 10 | 11 | 9 |
| MXP-A 118 | 18way | 416*260*10(24.7) | 400*230*90*1.0 | 6.4*12 | 10 | 11 | 10 |
| MXP-A 120 | 20way | 452*260*10(24.7) | 436*230*90*1.0 | 6.4*12 | 12 | 13 | 11 |
| MXP-A 224 | 24way | 325*460*12(24.7) | 305*420*100*1.2 | 8*12 | 12 | 13 | 7 |
| MXP-A 232 | 32way | 397*460*12(24.7) | 377*420*100*1.2 | 8*12 | 15 | 15 | 9 |
| MXP-A 240 | 40way | 469*460*12(24.7) | 449*420*100*1.2 | 8*12 | 17 | 17 | 11 |
Workshop Details Demonstration
Packing
| Model | Carton size | Volume/ctn | Pcs/ctn | Calculated weight(kgs/ctn) | |
| mm | m³ | net weight | gross weight | ||
| MXP-A 110 | 550*260*300 | 0.0429 | 5 | 13.7 | 14.8 |
| MXP-A 112 | 550*260*340 | 0.0487 | 5 | 15.1 | 16.4 |
| MXP-A 114 | 550*280*375 | 0.0578 | 5 | 17 | 18.5 |
| MXP-A 116 | 550*280*410 | 0.0632 | 5 | 18.5 | 20 |
| MXP-A 118 | 440*280*235 | 0.0290 | 2 | 8 | 8.8 |
| MXP-A 120 | 475*280*235 | 0.0313 | 2 | 8.6 | 9.5 |
| MXP-A 224 | 520*170*390 | 0.0345 | 1 | 6 | 6.7 |
| MXP-A 232 | 520*170*460 | 0.0407 | 1 | 7.2 | 7.8 |
| MXP-A 240 | 520*170*530 | 0.0469 | 1 | 8.2 | 9 |
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no additional charge.
Company Profile
1. Founded in 2005, it specializes in the production, R & D and sales of indoor distribution box, multi-media box and power cabinet.
2. The product design takes safety as the core concept, and has obtained 33 design patents, 20 utility model patents and 2 invention patents.
3. It has served 1350 leading real estate companies and 1600 panel builder.
4. In 2015, the sales revenue will exceed 100 million, and the annual box sales volume will reach 3 million pieces.
5. After 16 years of development and customer support, it has also gained a certain reputation.
