Product Details:
|
| Box Material: | HIPS/PC | Cover Frame Material: | HIPS/PC |
|---|---|---|---|
| Door Material: | AS/PC | Application: | Indoor |
| Type: | Surface Type | Rated Voltage: | 400V+/-20% |
| Rated Current: | 55A/ 63A | Protection Level: | IP40 |
| High Light: | CCC domestic distribution box,IP40 domestic distribution box,IP40 distribution panel box |
||

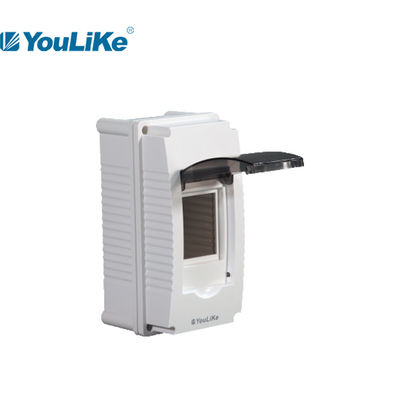

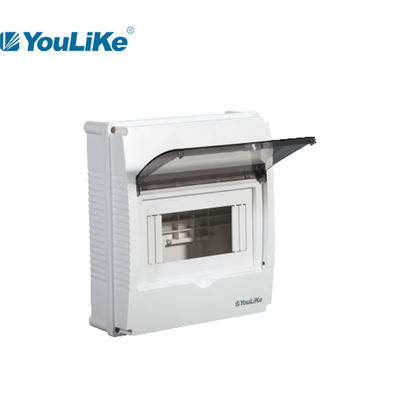

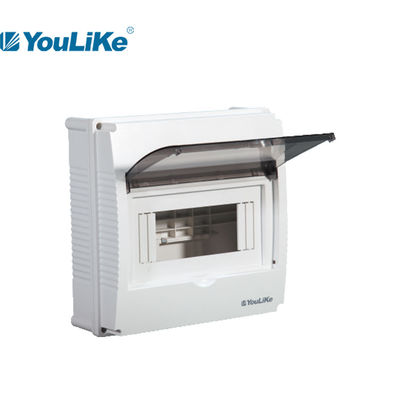

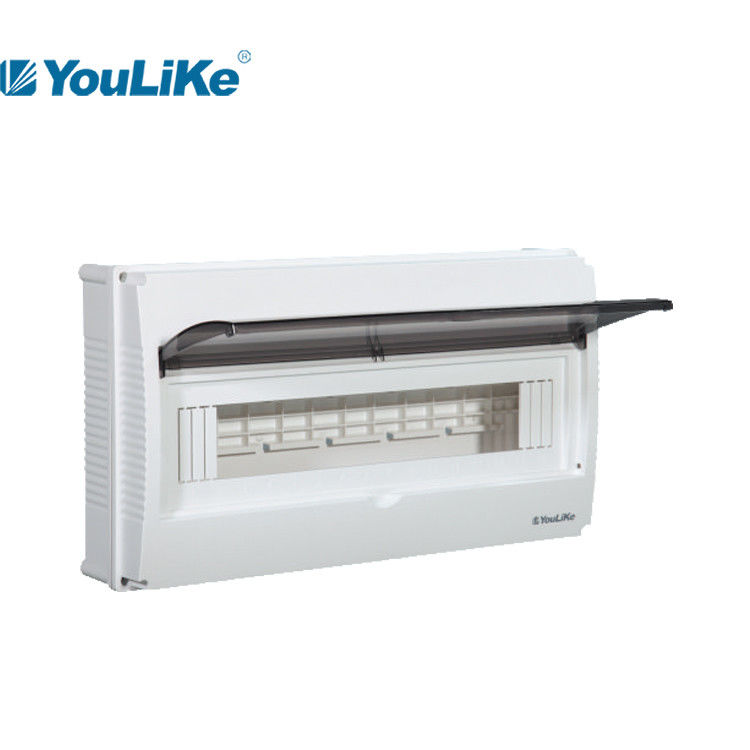

surface mount IP40 full plastic Domestic Air Switch Box MCB distribution box
Product Characteristics
1. Box to be available for both HIPS and PC material.
2. Cover frame to be available for both HIPS and PC material.
3. Door to be available for both AS and PC material, both to be transparent.
4. All plastic parts are without specific flame retardant and qualified to pass incandescent wire test at 650℃.
5. Pastic can be customized to flame retardant (grade V1~V0 depends on material choosed).
6. The surface is frosted and feels fine.
Plastic parts test result
1. Incandescent wire test at 650℃.
2. Anti-UV test (to reveal plastic anti-ageing performance) ≥250hrs.
3. Xenon arc lamp test ≥250hrs.
4. Hinge operation test ≥10,000 times no break.
Product Details Demonstration
DS series is used for indoor power distribution mainly for lighting control.
Plastic din rail Brass terminals Cover assemble
#1. The bottom box and the panel are matched by a stop, which is tightly assembled and has higher impact strength
#2. The corrugated structure on the left and right sides of the box has beautiful design and enhanced the overall strength
#3. The panel air switch window is provided with digit digital representation
#4. Both sides of the movable door are provided with self-locking buckles. When closed, the movable door is self locked in the most ideal position
Specification
| Models | Cover size | Box size | Terminal |
Knock-outs (one side) |
||
| L*W*T(mm) | L*W*D(mm) | size(mm) | PE qty | N qty | ||
| DS-M 102 |
80*160*42.5 |
80*160*45 |
N/A | N/A | N/A |
1-Ø21 |
| DS-M 104 | 136*200*42.5 | 136*200*45 | 6*9 | 3 | 3 |
1-24*21 |
| DS-M 107 | 194*200*42.5 | 194*200*45 | 6*9 | 3 | 3 |
1-64*21 |
| DS-M 110 | 248*200*42.5 | 248*200*45 | 6*9 | 6 | 6 |
2-Ø26, 1-56*21 |
| DS-M 113 | 302*200*42.5 | 302*200*45 | 6*9 | 6 | 6 |
2-Ø26, 2-Ø21,1-64*21 |
| DS-M 116 | 356*200*42.5 | 356*200*45 | 6*9 | 8 | 8 | 2-Ø26, 2-Ø21,1-100*21 |
Application
Mainly used for indoor lighting control for residential and commercial buildings.
Packing
| Model | Carton size | Volume/ctn | Pcs/ctn | Calculated weight(kgs/ctn) | |
| mm | m³ | net weight | gross weight | ||
| DS-M 102 | 480*180*360 | 0.0016 | 20 | ||
| DS-M 104 | 480*220*305 | 0.0033 | 10 | ||
| DS-M 107 | 480*220*420 | 0.0045 | 10 | ||
| DS-M 110 | 480*220*530 | 0.0056 | 10 | ||
| DS-M 113 | 480*320*430 | 0.0066 | 10 | ||
| DS-M 116 | 480*375*430 | 0.0078 | 10 | ||
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no additional charge.
