Product Details:
|
| Product Name: | 15way MCB Distribution Box | Approval: | CCC,CE |
|---|---|---|---|
| Window Type: | Transparent | Mounting Type: | Flush Mounted |
| Cover Material: | PC | Box Body Material: | ABS |
| Protection Level: | IP40 | Din Rail Contaction: | EN50022 |
| High Light: | Dustproof Plastic MCB Box,ABS Plastic MCB Box,inABS dustrial power distribution board |
||

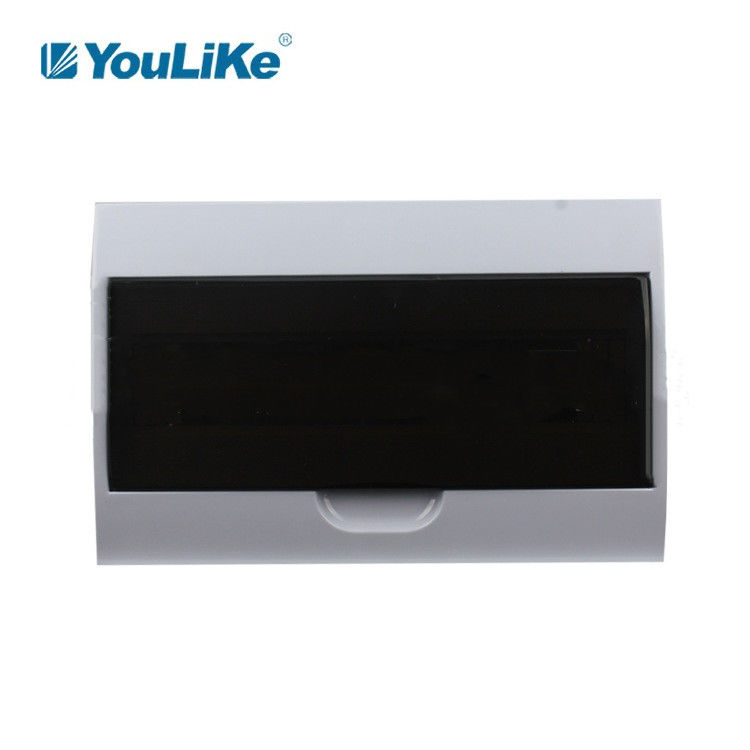

Surface Mounted Dustproof Power Distribution Equipment ABS body MCB Distribution Box
Product Feature
1. Box material: ABS
2. Cover frame material: PC
4. All plastic parts : without specific flame retardant
5. Pastic can be customized to flame retardant (grade V1~V0 depends on material choosed).
Application
TSM series is used for indoor power distribution mainly for lighting control for residential and commercial buildings.
Product Design

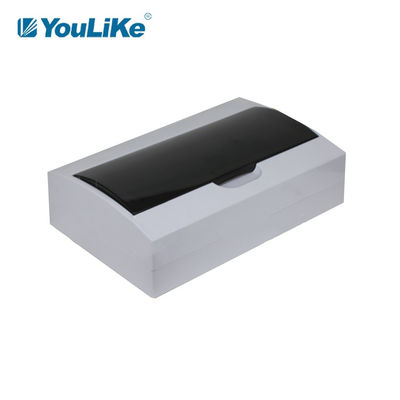

Overall design: unique corner design, with three-dimensional feeling of space.
Internal design: the guide rail for fixing the circuit breaker is installed, which is more convenient.

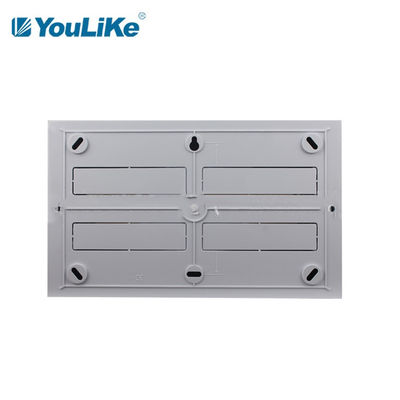

Back design: surface mounted shell, more convenient installation, smooth surface, no miscellaneous color spots.
Side design: knock off the side hole when in use and waterproof when not in use.
Specifications of TSM series, Surface/Flush
| Number | Model | Way | Box size(surface) | Box size(flush) | Cartons |
| L*H*T (mm) | L*H*T (mm) | pcs | |||
|
#1 |
TSM2-3 | 2-3way | 95*150*60 | 95*150*60 | 50 |
|
#2 |
TSM4 | 4way | 112*200*95 | 136*221*90 | 30 |
|
#3 |
TSM6 | 6way | 148*200*95 | 172*221*90 | 30 |
|
#4 |
TSM8 | 8way | 184*200*95 | 208*221*90 | 30/20 |
| #5 | TSM10 | 10way | 222*200*95 | 246*221*90 | 20 |
| #6 | TSM12 | 12way | 256*200*95 | 278*221*90 | 20 |
| #7 | TSM15 | 15way | 310*200*95 | 334*221*90 | 15 |
| #8 | TSM18 | 18way | 360*200*100 | 398*251*100 | 15/10 |
| #9 | TSM24 | 24way | 270*328*100 | 300*350*100 | 10 |
| #10 | TSM36 | 36way | 270*460*100 | 300*482*100 | 5 |
| #11 | TSM45 | 45way | 325*470*100 | 365*505*110 | 5 |
Warehouse Demonstration
Packing
| Model | Carton size | Volume/ctn | Pcs/ctn | Calculated weight(kgs/ctn) | |
| mm | m³ | net weight | gross weight | ||
| TSM2-3way | 100*155*65 | 0.0100 | 50 | ||
| TSM4way | 115*205*100 | 0.0023 | 30 | ||
| TSM6way | 150*205*100 | 0.0030 | 30 | ||
| TSM8way | 190*205*100 | 0.0038 | 30/20 | ||
| TSM10way | 227*205*100 | 0.0046 | 20 | ||
| TSM12way | 260*205*100 | 0.0053 | 20 | ||
| TSM15way | 315*205*100 | 0.0065 | 15 | ||
| TSM18way | 365*205*105 | 0.0078 | 15/10 | ||
| TSM24way | 275*333*105 | 0.0096 | 10 | ||
| TSM36way | 275*465*105 | 0.0134 | 5 | ||
| TSM45way | 330*475*105 | 0.0164 | 5 | ||
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no additional charge.
Customer Service
1. OEM/ODM (customized logo/ carton packing/ box depth/ plate thickness).
2. Order arrangement
* ≤15 days stable delivery.
* specific MOQ.
* multiple payment terms.
* order status update.
3. Additional service
* 7X24 respondence service.
* on site service.
* quality discrepancy handle.
* accessories coordination
