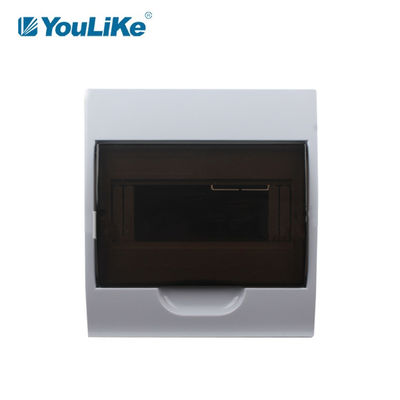

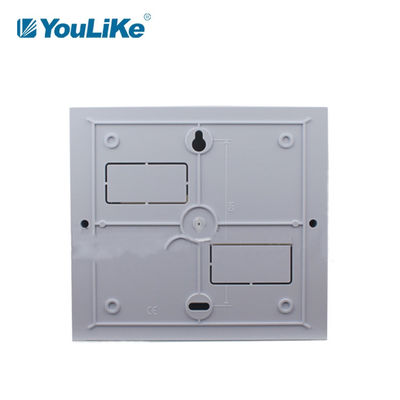

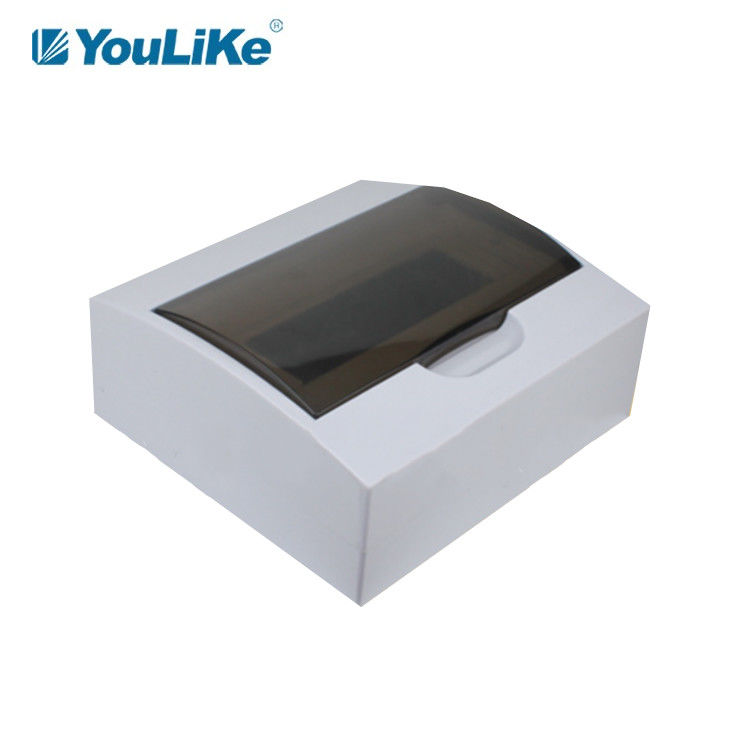

Product Details:
|
| Product Name: | 8way MCB Distribution Box | Color: | White |
|---|---|---|---|
| Mounting Type: | Flush Mounted | Size: | 208*221*90mm |
| Cover Material: | PC | Window Type: | Transparent |
| Box Body Material: | ABS | Protection Level: | IP40 |
| High Light: | ABS flush mount electrical box,8 Way flush mount electrical box,ABS Plastic 8 way db box |
||
Protection Level 40 High-Quality 8 Way Plastic Switch Box Db Box Mcb Distribution Board
Quality Control
1. Raw matreial
* steel plate from leading steel companies.
* brand new plastic.
* stable supply chain.
2. Components
* safe and secure earth system.
* 57.5% brass composition terminal.
* multi-folded boarder.
* 1,200+ times patent hinge.
* wire clamp.
3. Inspection
* material analysis.
* inspection for individual process.
* semi-final product inspection.
* final product inspection.
Quality Assurance
1. Official quality assurance,two-year warranty.
2. The plate thickness meets the national standard without error.
3. The materials used in the product are all new and high-quality materials,and there are no waste recycled materials.
4. The product has China Compulsory Product Certification number and meets the national CCC certification standard.
Product Features
1. Panel is the ABS material for engineering , high strength , never change color , the transparent materia is PC .
2. Cover push - type opening and closing
3. Face covering of the distribution box adopts the push - type opening and closing mode , the face mask can be opened by pressing lightly , the self - locking positioning hinge structure is provided when opening.
4. Wiring design of the power distribution box.
5. The guide rail support plate can be lifted to the higest movable point , it is no longer limited by the narrrow space when installing the wire . To install easily , the switch of the distribution box is set up with the wire grooves and wire pipe exitholes , whcih are easy to use for a variety of wire grooves and wire pipes.
Specifications of TSM series, Surface/Flush
| Number | Model | Way | Box size(surface) | Box size(flush) | Cartons |
| L*H*T (mm) | L*H*T (mm) | pcs | |||
|
#1 |
TSM2-3 | 2-3way | 95*150*60 | 95*150*60 | 50 |
|
#2 |
TSM4 | 4way | 112*200*95 | 136*221*90 | 30 |
|
#3 |
TSM6 | 6way | 148*200*95 | 172*221*90 | 30 |
|
#4 |
TSM8 | 8way | 184*200*95 | 208*221*90 | 30/20 |
| #5 | TSM10 | 10way | 222*200*95 | 246*221*90 | 20 |
| #6 | TSM12 | 12way | 256*200*95 | 278*221*90 | 20 |
| #7 | TSM15 | 15way | 310*200*95 | 334*221*90 | 15 |
| #8 | TSM18 | 18way | 360*200*100 | 398*251*100 | 15/10 |
| #9 | TSM24 | 24way | 270*328*100 | 300*350*100 | 10 |
| #10 | TSM36 | 36way | 270*460*100 | 300*482*100 | 5 |
| #11 | TSM45 | 45way | 325*470*100 | 365*505*110 | 5 |
Warehouse Demonstration
Packing
| Model | Carton size | Volume/ctn | Pcs/ctn | Calculated weight(kgs/ctn) | |
| mm | m³ | net weight | gross weight | ||
| TSM2-3way | 100*155*65 | 0.0100 | 50 | ||
| TSM4way | 115*205*100 | 0.0023 | 30 | ||
| TSM6way | 150*205*100 | 0.0030 | 30 | ||
| TSM8way | 190*205*100 | 0.0038 | 30/20 | ||
| TSM10way | 227*205*100 | 0.0046 | 20 | ||
| TSM12way | 260*205*100 | 0.0053 | 20 | ||
| TSM15way | 315*205*100 | 0.0065 | 15 | ||
| TSM18way | 365*205*105 | 0.0078 | 15/10 | ||
| TSM24way | 275*333*105 | 0.0096 | 10 | ||
| TSM36way | 275*465*105 | 0.0134 | 5 | ||
| TSM45way | 330*475*105 | 0.0164 | 5 | ||
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no additional charge.
Company Profile
2. The product design takes safety as the core concept, and has obtained 33 design patents, 20 utility model patents and 2 invention patents.
3. It has served 1350 leading real estate companies and 1600 panel builder.
4. In 2015, the sales revenue will exceed 100 million, and the annual box sales volume will reach 3 million pieces.
5. After 16 years of development and customer support, it has also gained a certain reputation.
