Product Details:
|
| Product Name: | 3way MCB Distribution Box | Window Type: | Transparent |
|---|---|---|---|
| Color: | White | Warranty: | 2years |
| Mounting Type: | Surface Mounted | Material: | ABS+PC |
| Protection Level: | IP40 | Rated Cuttent: | 690V |
| High Light: | 3 Way Plastic MCB Box,Electrical Plastic MCB Box,Surface Mounting mcb box 3 way |
||

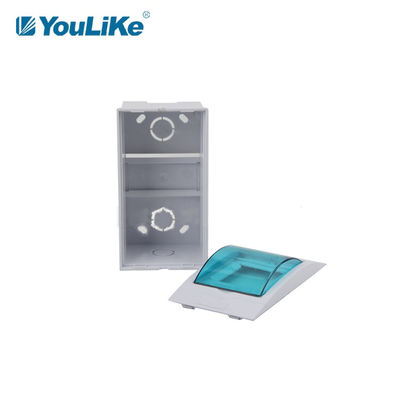

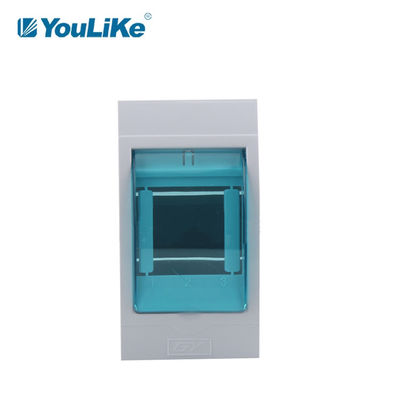

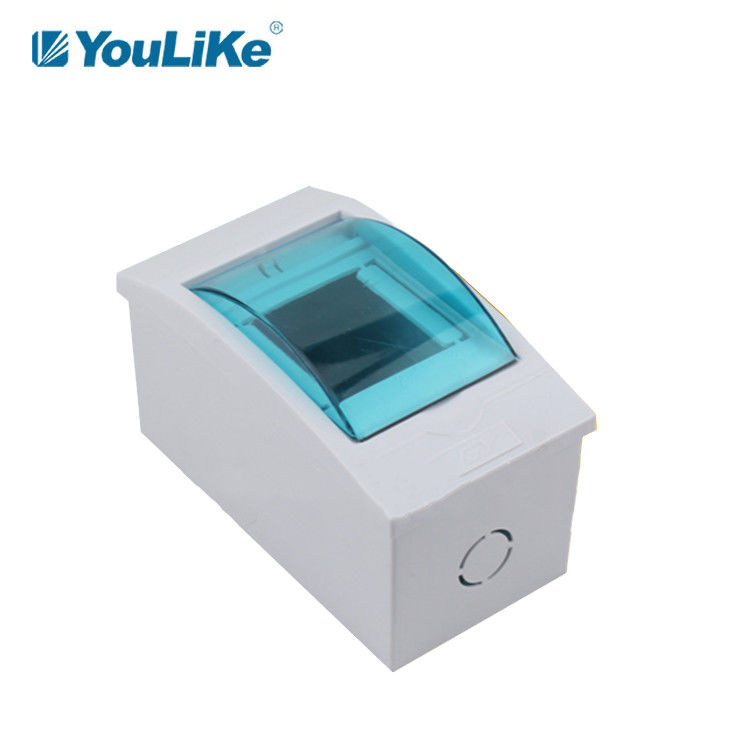

Surface Mounting Electrical Circuit Breaker Junction Box MCB 3 Way Power Distribution Box
Main Features
1.High impact resistance material:PC,ABS
2. Safe and full material copper terminals
3.Adjustable din-rail:move ascend and descend
4. Ultra-large space box for moving and easy wiring
5. Flush mounting and surface mounting available
6.Function of Distribution box:protect MCB and other devices.
Product Design
Overall design: unique corner design, with three-dimensional feeling of space.
Internal design: the guide rail for fixing the circuit breaker is installed, which is more convenient.
Back design: surface mounted shell, more convenient installation, smooth surface, no miscellaneous color spots.
Side design: knock off the side hole when in use and waterproof when not in use.
Application
TSM series is used for indoor power distribution mainly for lighting control for residential and commercial buildings.
Specifications of TSM series, Surface/Flush
| Number | Model | Way | Box size(surface) | Box size(flush) | Cartons |
| L*H*T (mm) | L*H*T (mm) | pcs | |||
|
#1 |
TSM2-3 | 2-3way | 95*150*60 | 95*150*60 | 50 |
|
#2 |
TSM4 | 4way | 112*200*95 | 136*221*90 | 30 |
|
#3 |
TSM6 | 6way | 148*200*95 | 172*221*90 | 30 |
|
#4 |
TSM8 | 8way | 184*200*95 | 208*221*90 | 30/20 |
| #5 | TSM10 | 10way | 222*200*95 | 246*221*90 | 20 |
| #6 | TSM12 | 12way | 256*200*95 | 278*221*90 | 20 |
| #7 | TSM15 | 15way | 310*200*95 | 334*221*90 | 15 |
| #8 | TSM18 | 18way | 360*200*100 | 398*251*100 | 15/10 |
| #9 | TSM24 | 24way | 270*328*100 | 300*350*100 | 10 |
| #10 | TSM36 | 36way | 270*460*100 | 300*482*100 | 5 |
| #11 | TSM45 | 45way | 325*470*100 | 365*505*110 | 5 |
Workshop Demonstration
Packing
| Model | Carton size | Volume/ctn | Pcs/ctn | Calculated weight(kgs/ctn) | |
| mm | m³ | net weight | gross weight | ||
| TSM2-3way | 100*155*65 | 0.0100 | 50 | ||
| TSM4way | 115*205*100 | 0.0023 | 30 | ||
| TSM6way | 150*205*100 | 0.0030 | 30 | ||
| TSM8way | 190*205*100 | 0.0038 | 30/20 | ||
| TSM10way | 227*205*100 | 0.0046 | 20 | ||
| TSM12way | 260*205*100 | 0.0053 | 20 | ||
| TSM15way | 315*205*100 | 0.0065 | 15 | ||
| TSM18way | 365*205*105 | 0.0078 | 15/10 | ||
| TSM24way | 275*333*105 | 0.0096 | 10 | ||
| TSM36way | 275*465*105 | 0.0134 | 5 | ||
| TSM45way | 330*475*105 | 0.0164 | 5 | ||
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no additional charge.
