Product Details:
|
| Product Name: | 24way Flush Mounted Distribution Box | Material: | Metal For Body,cover For Plastic |
|---|---|---|---|
| Way Dimension: | 18mm | Warranty: | 2 Years |
| Hinge Operation Test: | 10000times | Protection Level: | IP40 |
| Cooper Bar: | Copper Content 57.5% | Mounting Type: | Surface Mounted |
| High Light: | Flush Wall Mounted Plastic MCB Box,24 way Plastic MCB Box,IP40 mcb box 24 way |
||

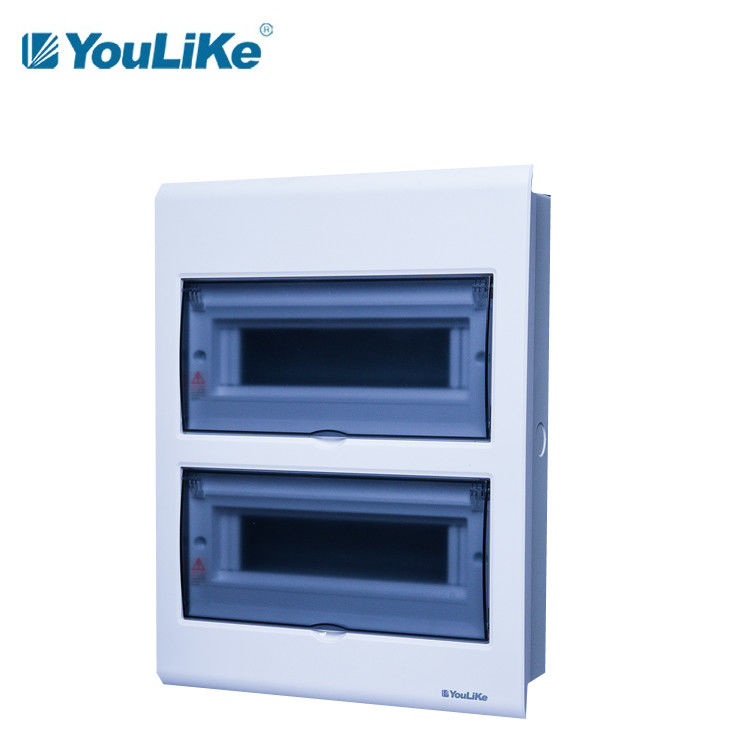

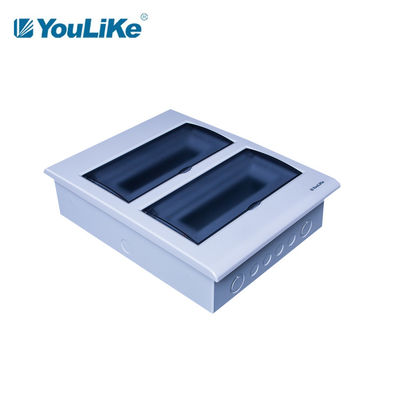

Flush Mounted Plastic MCB Box 24 Way Protection Level IP40 Distribution Board
Application
M3 series is used for indoor power distribution mainly for lighting control for residential and commercial buildings.
1. Din rail to be galvanized steel, with horizontal & vertical adjustment funtion.
2. Brass terminals (1pcs earthing & 1pcs neutral) is with 57.5% composition.
3. Stainless earthing bolts with warning label.
4. Reinforced structure design to allow higher tensile strength of plastic cover.
5. Metal metal spring plate to provide extra service life of plastic hinges.
Installation Precautions
1. When the bottom box is embedded with concrete for on-site pouring, the surrounding support shall be made inside the bottom box to prevent the bottom box from deformation.
2. The maximum bearing torque of the earthing bolt on the bottom box is 18N. M.
3. It is recommended to install the support surface after the wall is puttying.
4. The bracket is attached to the wall for installation.
5. The installation of the box must be grounded, and the box is not equipped with earthing.
| Model | M3-A 224 |
| Material | 1.0powder coated steel + ABS/PC |
| Base Box Size | 292×380×90×1.0mm |
| Cover Size | 316×415×22.3(31.3)mm |
| Rated Voltage | AC400v(+/-20%) |
| Rated Frequency | 50-60H |
| Application | residential/commerical |
| Protection Level | IP40 |
| Certification | CCC,CE |
| Package | in color box or neutral carton |
| OEM | accept |
Product Details
Specifications of M3 series, Flush
| Model | Way | Cover size | Box size |
Terminals |
Knockouts | ||
| L*H*T (mm) | L*W*D*T(mm) | size(mm) | PE | N | one side qty | ||
|
M3-A 110 |
10way | 278×240×20.0(29.0) | 256×210×90×1.0 | 6×10.4 | 8 | 9 | 5 |
|
M3-A 112 |
12way | 316×240×20.0(29.0) | 292×210×90×1.0 | 6×10.4 | 8 | 9 | 6 |
|
M3-A 114 |
14way | 352×240×20.0(29.0) | 328×210×90×1.0 | 6×10.4 | 8 | 9 | 7 |
|
M3-A 116 |
16way | 388×252×20.0(29.0) | 364×210×90×1.0 | 6×10.4 | 11 | 12 | 7 |
|
M3-A 118 |
18way | 424×252×20.0(29.0) | 400×210×90×1.0 | 6×10.4 | 11 | 12 | 10 |
|
M3-A 120 |
20way | 460×252×20.0(29.0) | 436×210×90×1.0 | 6×10.4 | 11 | 12 | 10 |
|
M3-A 224 |
24way | 316×415×22.3(31.3) | 292×380×90×1.0 | 6.4×12 | 12 | 13 | 8 |
|
M3-A 232 |
32way | 388×415×22.3(31.3) | 364×380×90×1.0 | 6.4×12 | 14 | 15 | 10 |
|
M3-A 240 |
40way | 460×415×22.3(31.3) | 436×380×90×1.0 | 6.4×12 | 17 | 18 | 12 |
