Product Details:
|
| Name: | 24way Mcb Distribution Box | Din Rail Bracket: | Special Design Patent |
|---|---|---|---|
| Earthing Bolt: | Stainless Steel | Cooper Bar: | Copper Content 57.5% |
| Mounting Type: | Surface Mounted | Box Material: | 1.0&1.2mm Powder Coated Steel |
| Window Type: | Opaque | Certificate: | CCC,CE |
| Door Material: | ABS | ||
| High Light: | 24way Plastic MCB Box,Two Phase Plastic MCB Box,24way plastic db box |
||

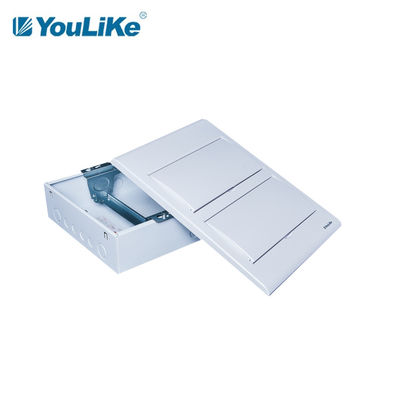

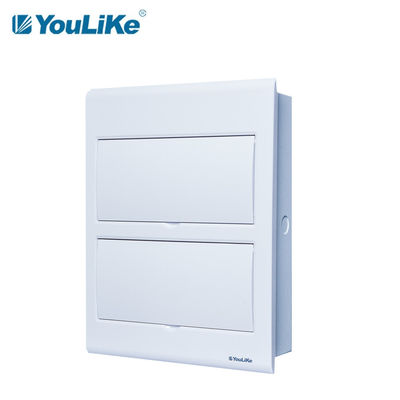

Indoors Two Phase Plastic MCB Distribution Box 24way Cooper Busbar With Din Rail
Product Feature
1.High impact resistance material:PC,ABS
2. Safe and full material copper terminals
3.Adjustable din-rail:move ascend and descend
4. Ultra-large space box for moving and easy wiring
5.Function of Distribution box:protect MCB and other devices.
6. Application: widely used in low voltage distribution networks for power supplying of consumers and commercial buildings.
Plastic Parts Test Result
1. Incandescent wire test at 650℃.
2. Anti-UV test (to reveal plastic anti-ageing performance) ≥250hrs.
3. Xenon arc lamp test ≥250hrs.
4. Hinge operation test ≥10,000 times no break.
Specification
| Model | M3-A 224 |
| Ways | 24way |
| Color | white |
| Material | metal +plastic |
| Base Box Size | 292*380*90*1.0MM |
| Cover Size | 316*415*22.3(31.3)MM |
| Approval | CE |
| Application | electric power transmission |
| Installation Type | concealed |
| Warranty | 2 years |
| Package | in color box or neutral carton |
| OEM | available |
Production Description
About Us
1. Founded in 2005, it specializes in the production, R & D and sales of indoor distribution box, multi-media box and power cabinet.
2. The product design takes safety as the core concept, and has obtained 33 design patents, 20 utility model patents and 2 invention patents.
3. It has served 1350 leading real estate companies and 1600 panel builder.
4. In 2015, the sales revenue will exceed 100 million, and the annual box sales volume will reach 3 million pieces.
5. After 16 years of development and customer support, it has also gained a certain reputation.
Our Factory
Certifications
Packing
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no additional charge.
