Product Details:
|
| Product Name: | 24way Flush Mounted Distribution Box | Phase Type: | 2 |
|---|---|---|---|
| Earthing Bolt: | Stainless Steel | Mounting Type: | Surface Mounted |
| Box Material: | 1.0&1.2mm Powder Coated Steel | Window Type: | Opaque |
| Hinge Operation Test: | 10000 Times | Certificate: | CCC,CE |
| Door Material: | ABS | ||
| High Light: | ABS Plastic home circuit breaker panel,24 way home circuit breaker panel,Two Phase mcb box 24 way |
||

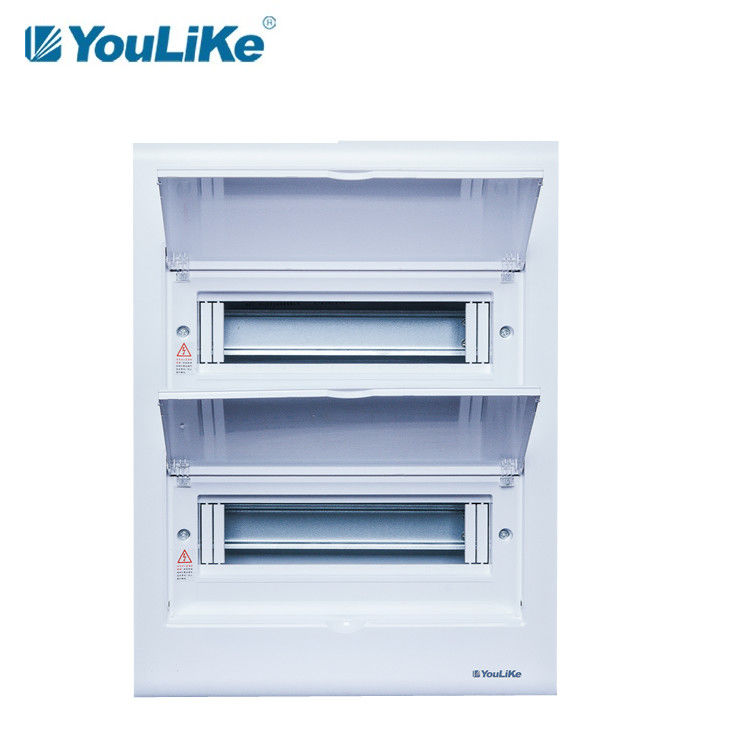

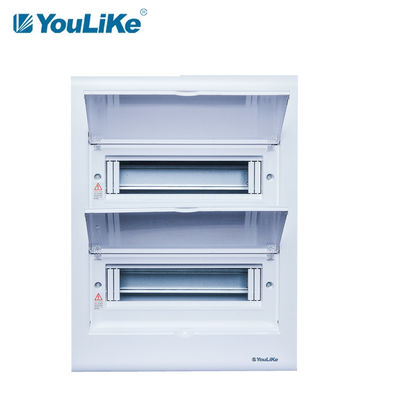

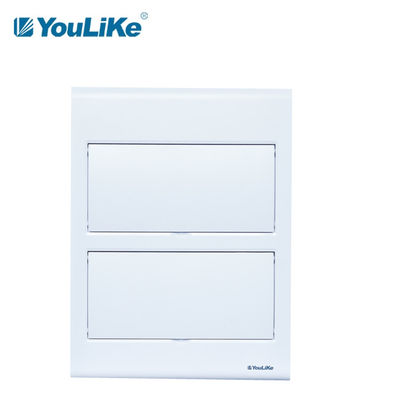

Indoor Plastic Two Phase Circuit Breaker Power Distribution Box 24way Electrical MCB Box
Product Development Orientation
1. Standardized bottom bow installation.
2. Standardized equipment factory connection.
3. Standardized construction connection.
4. Standardized telecom installation.
Application
M3 series is used for indoor power distribution mainly for lighting control for residential and commercial buildings.

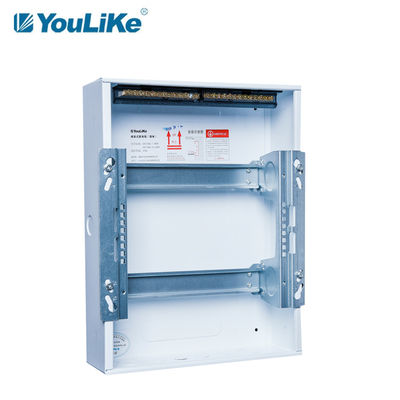

1. Din rail to be galvanized steel, with horizontal & vertical adjustment funtion.
2. Brass terminals (1pcs earthing & 1pcs neutral) is with 57.5% composition.
3. Stainless earthing bolts with warning label.

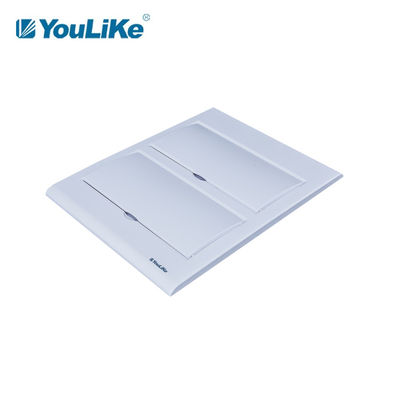

4. Reinforced structure design to allow higher tensile strength of plastic cover.
5. Metal metal spring plate to provide extra service life of plastic hinges.
Product Advantage
1. Strong box for durability.
2. Curved panel, matte process.
3. Rail btacket to prevent deformation.
4. High-quality copper bar, sturdy and durable.
5. Optimize the details to meet your needs.
Specifications of M3 series, Flush
| Model | Way | Cover size | Box size |
Terminals |
Knockouts | ||
| L*H*T (mm) | L*W*D*T(mm) | size(mm) | PE | N | one side qty | ||
|
M3-A 110 |
10way | 278×240×20.0(29.0) | 256×210×90×1.0 | 6×10.4 | 8 | 9 | 5 |
|
M3-A 112 |
12way | 316×240×20.0(29.0) | 292×210×90×1.0 | 6×10.4 | 8 | 9 | 6 |
|
M3-A 114 |
14way | 352×240×20.0(29.0) | 328×210×90×1.0 | 6×10.4 | 8 | 9 | 7 |
|
M3-A 116 |
16way | 388×252×20.0(29.0) | 364×210×90×1.0 | 6×10.4 | 11 | 12 | 7 |
|
M3-A 118 |
18way | 424×252×20.0(29.0) | 400×210×90×1.0 | 6×10.4 | 11 | 12 | 10 |
|
M3-A 120 |
20way | 460×252×20.0(29.0) | 436×210×90×1.0 | 6×10.4 | 11 | 12 | 10 |
|
M3-A 224 |
24way | 316×415×22.3(31.3) | 292×380×90×1.0 | 6.4×12 | 12 | 13 | 8 |
|
M3-A 232 |
32way | 388×415×22.3(31.3) | 364×380×90×1.0 | 6.4×12 | 14 | 15 | 10 |
|
M3-A 240 |
40way | 460×415×22.3(31.3) | 436×380×90×1.0 | 6.4×12 | 17 | 18 | 12 |
Company Demonstration
Packing
| Model | Carton size | Volume/ctn | Pcs/ctn | Calculated weight(kgs/ctn) | |
| mm | m³ | net weight | gross weight | ||
| M3-A 110 | 595×300×515 | 0.0919 | 10 | 17.10 | |
| M3-A 112 | 595×340×515 | 0.1042 | 10 | 9.25 | |
| M3-A 114 | 595×260×380 | 0.0588 | 5 | 10.20 | |
| M3-A 116 | 595×275×420 | 0.0687 | 5 | 11.65 | |
| M3-A 118 | 595×275×455 | 0.0744 | 5 | 12.40 | |
| M3-A 120 | 595×275×490 | 0.0801 | 5 | 5.40 | |
| M3-A 224 | 465×155×375 | 0.0270 | 1 | 6.70 | |
| M3-A 232 | 465×155×445 | 0.0327 | 1 | 3.60 | |
| M3-A 240 | 465×155×520 | 0.0375 | 1 | 4.05 | |
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no additional charge.
Quality Assurance
1. Official quality assurance,two-year warranty.
2. The plate thickness meets the national standard without error.
3. The materials used in the product are all new and high-quality materials,and there are no waste recycled materials.
4. The product has China Compulsory Product Certification number and meets the national CCC certification standard.
