Product Details:
|
| Product Name: | Flush Mounted Distribution Box | Application: | Residential |
|---|---|---|---|
| Cover Mounting Hole Dimension: | 202mm | Hinge: | Design Patent |
| Warranty: | 2years | Certificate: | CCC,CE |
| Box Material: | 1.0&1.2mm Powder Coated Steel | Door Material: | ABS |
| High Light: | Indoor MCB Distribution Panel,14 Way MCB Distribution Panel,14 Way plastic junction box |
||

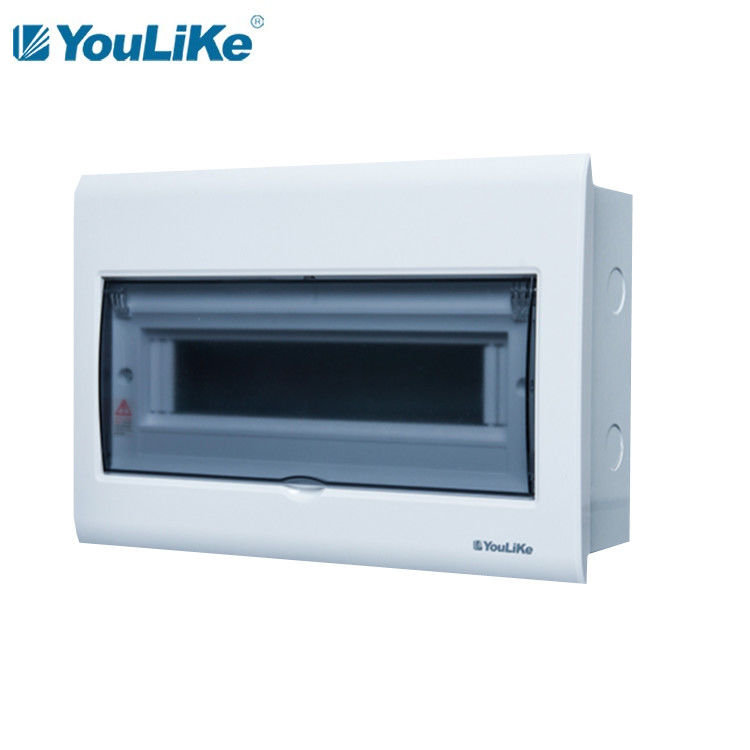

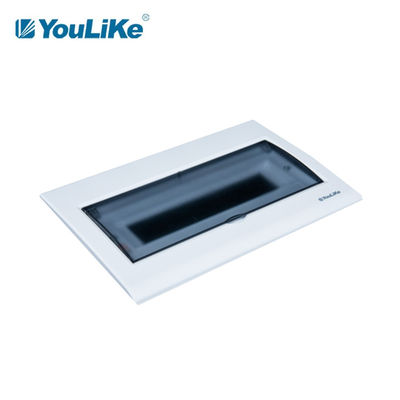

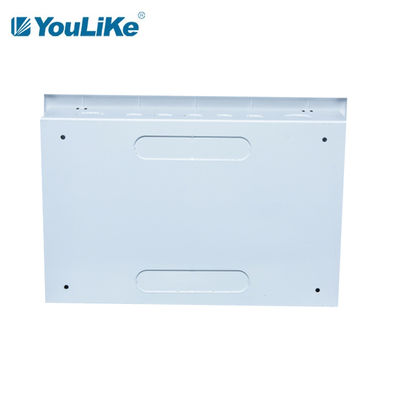

Indoor Transparent Window 14Way MCB Distribution Panel Board Distribution Box
Product Advantage
1. Strong box for durability.
2. Curved panel, matte process.
3. Rail btacket to prevent deformation.
4. High-quality copper bar, sturdy and durable.
5. Optimize the details to meet your needs.
Installation Precautions
1. When the bottom box is embedded with concrete for on-site pouring, the surrounding support shall be made inside the bottom box to prevent the bottom box from deformation.
2. The maximum bearing torque of the earthing bolt on the bottom box is 18N. M.
3. It is recommended to install the support surface after the wall is puttying.
4. The bracket is attached to the wall for installation.
5. The installation of the box must be grounded, and the box is not equipped with earthing.
Company Profile
1. Founded in 2005, it specializes in the production, R & D and sales of indoor distribution box, multi-media box and power cabinet.
2. The product design takes safety as the core concept, and has obtained 33 design patents, 20 utility model patents and 2 invention patents.
3. It has served 1350 leading real estate companies and 1600 panel builder.
4. In 2015, the sales revenue will exceed 100 million, and the annual box sales volume will reach 3 million pieces.
5. After 16 years of development and customer support, it has also gained a certain reputation.
Specifications of M3 series, Flush
| Model | Way | Cover size | Box size |
Terminals |
Knockouts | ||
| L*H*T (mm) | L*W*D*T(mm) | size(mm) | PE | N | one side qty | ||
|
M3-A 110 |
10way | 278×240×20.0(29.0) | 256×210×90×1.0 | 6×10.4 | 8 | 9 | 5 |
|
M3-A 112 |
12way | 316×240×20.0(29.0) | 292×210×90×1.0 | 6×10.4 | 8 | 9 | 6 |
|
M3-A 114 |
14way | 352×240×20.0(29.0) | 328×210×90×1.0 | 6×10.4 | 8 | 9 | 7 |
|
M3-A 116 |
16way | 388×252×20.0(29.0) | 364×210×90×1.0 | 6×10.4 | 11 | 12 | 7 |
|
M3-A 118 |
18way | 424×252×20.0(29.0) | 400×210×90×1.0 | 6×10.4 | 11 | 12 | 10 |
|
M3-A 120 |
20way | 460×252×20.0(29.0) | 436×210×90×1.0 | 6×10.4 | 11 | 12 | 10 |
|
M3-A 224 |
24way | 316×415×22.3(31.3) | 292×380×90×1.0 | 6.4×12 | 12 | 13 | 8 |
|
M3-A 232 |
32way | 388×415×22.3(31.3) | 364×380×90×1.0 | 6.4×12 | 14 | 15 | 10 |
|
M3-A 240 |
40way | 460×415×22.3(31.3) | 436×380×90×1.0 | 6.4×12 | 17 | 18 | 12 |
Warehouse Demonstration
Packing
| Model | Carton size | Volume/ctn | Pcs/ctn | Calculated weight(kgs/ctn) | |
| mm | m³ | net weight | gross weight | ||
| M3-A 110 | 595×300×515 | 0.0919 | 10 | 17.10 | |
| M3-A 112 | 595×340×515 | 0.1042 | 10 | 9.25 | |
| M3-A 114 | 595×260×380 | 0.0588 | 5 | 10.20 | |
| M3-A 116 | 595×275×420 | 0.0687 | 5 | 11.65 | |
| M3-A 118 | 595×275×455 | 0.0744 | 5 | 12.40 | |
| M3-A 120 | 595×275×490 | 0.0801 | 5 | 5.40 | |
| M3-A 224 | 465×155×375 | 0.0270 | 1 | 6.70 | |
| M3-A 232 | 465×155×445 | 0.0327 | 1 | 3.60 | |
| M3-A 240 | 465×155×520 | 0.0375 | 1 | 4.05 | |
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no additional charge.
Application
M3 series is used for indoor power distribution mainly for lighting control for residential and commercial buildings.
1. Din rail to be galvanized steel, with horizontal & vertical adjustment funtion.
2. Brass terminals (1pcs earthing & 1pcs neutral) is with 57.5% composition.
3. Stainless earthing bolts with warning label.
4. Reinforced structure design to allow higher tensile strength of plastic cover.
5. Metal metal spring plate to provide extra service life of plastic hinges.
Contact Person: Kevin Hu
Tel: +86-18080921570
