Product Details:
|
| Product Name: | Standing Electrical Distribution Panel Board | Box Material: | Powder Coated Steel |
|---|---|---|---|
| Grounding Screw: | M8×16 | Certificatie: | CCC,CE |
| Installation Type: | Floor Type | Foamed Tape: | Noise Reduction, Dust And Insect Prevention |
| Color: | RAL7035 | Protection Level: | IP43 |
| High Light: | 1600mm Outdoor Power Distribution Panel,1600mm electrical switch panel |
||

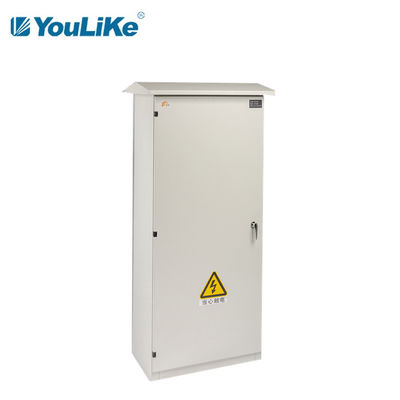

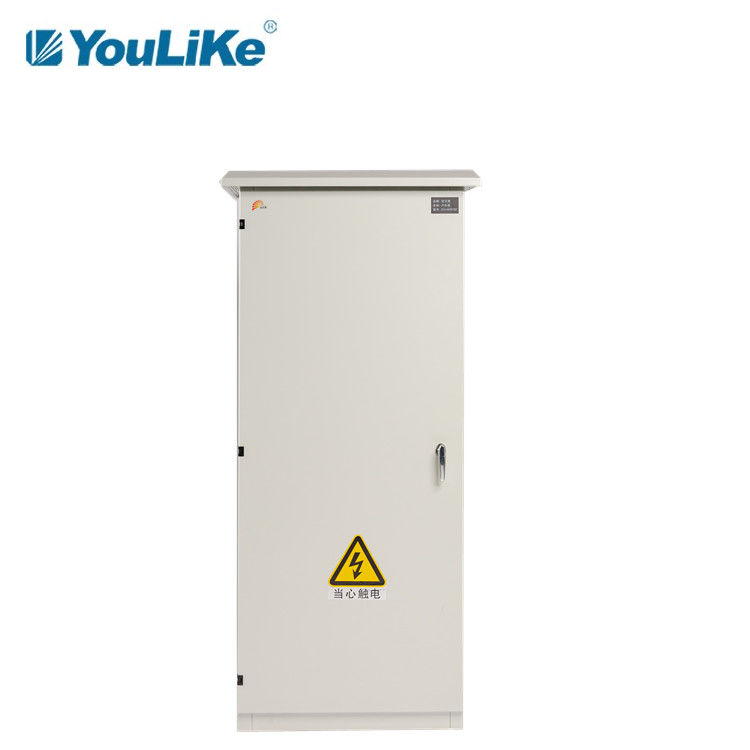

IP43 Free Standing Enclosure Sheet Steel Waterproof Outdoor Electrical Switch Panel Electric Cabinet
Product Feature
1. Box material: powder coated steel.
2. components installation strip: zinc alloy material.
3. Box body color: RAL7035.
4. Mounting type: floor type.
5. Protection level: IP43.
6. Lock: MS308-2 disc lock, silvery white, zinc alloy material.
7. Grounding screw: M8×16 grounding screw at the bottom left of the cabinet.
Box Body Configuration
1. Cabinet opening: turn out all around, rainproof edge.
2. Floor mounting hole: located at the bottom of the cabinet.

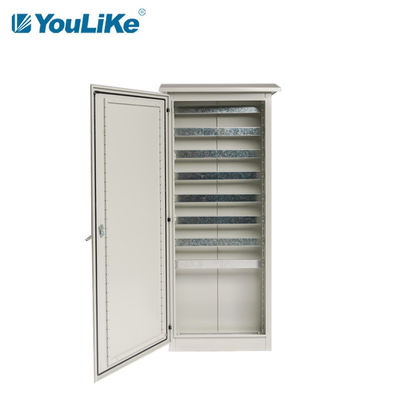

3. Component mounting strip: used to install electrical components.

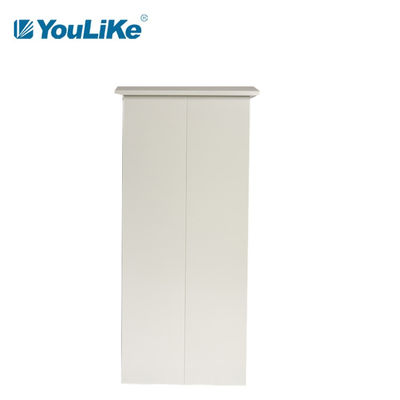

4. Back of cabinet: removable, convenient for electrical installation.
5. Grounding mode: a grounding pile is set below the left side of the cabinet.
6. Secondary terminal support: located at the middle and upper part of the left side of the cabinet, with a spacing of 400mm.
7. Cooling window: a cooling window is set at the lower end of the rainproof top cover.
Specification of RG11-HW series floor type distribution box
| ser | Model | Dimension(mm) | Plate thickness(mm) | Mounting strip dimension(mm) | Quantity | |||
| Width | Height | Depth | Box/Door/mounting plate | Width -35 | Height-60 | pcs | ||
| #1 |
RG11-HW6016037 |
600 | 1600 | 370 | 1.2/1.5/1.5 | 565 | 60 | 8 |
| #2 |
RG11-HW7017037 |
700 | 1700 | 665 | ||||
| #3 |
RG11-HW8018037 |
800 | 1800 | 765 | 9 | |||
| #4 |
RG11-HW6016042 |
600 | 1600 | 420 | 565 | 8 | ||
| #5 |
RG11-HW7017042 |
700 | 1700 | 665 | ||||
| #5 | RG11-HW8018042 | 800 | 1800 | 765 | 9 | |||
Product Detail Demonstration
Quality Assurance
1. Official quality assurance,two-year warranty.
2. The plate thickness meets the national standard without error.
3. The materials used in the product are all new and high-quality materials,and there are no waste recycled materials.
4. The product has China Compulsory Product Certification number and meets the national CCC certification standard.
