Product Details:
|
| Product Name: | Outdoor Power Distribution Cabinet | Type: | Distribution Box |
|---|---|---|---|
| Plate Thickness: | 1.5mm | Folding Style: | Folding Outwards |
| Installation Type: | Floor Type | Surface Treatment: | Powder Coating |
| Color: | RAL7035 | Ingress Protection: | IP43 |
| High Light: | 1.5mm Outdoor Power Distribution Panel,1.5mm electrical distribution panel |
||

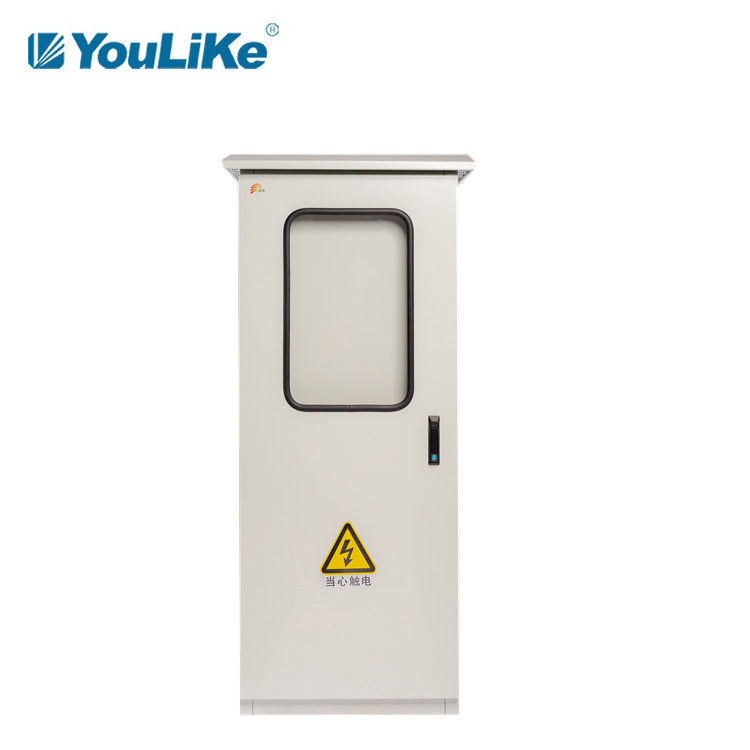

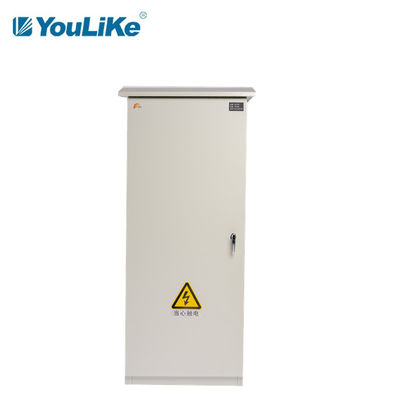

One Doors Waterproof IP43 Outdoor Control Cabinet Outdoor Metal Electrical Cabinet
Technology
1. The new hinge structure adopts metal shaft core, which is stable, reliable and durable.
2. The special stainless steel shrapnel fixes the movable door in the ideal position to ensure that the force of opening and closing the movable door is moderate, the rotation is smooth and there is no abnormal noise.
3. The internal guide rail bracket is composed of all metal parts, with lifting and rotation adjustment function and pre suspension function.
4. The grounding screw is made of stainless steel, the stud is uncoated and the grounding is more sufficient.
Product Characteristics
1. Box to be powder coated steel,
2. Folding style: folding outwards.
3. Floor mounting hole: located at bottom of box body.

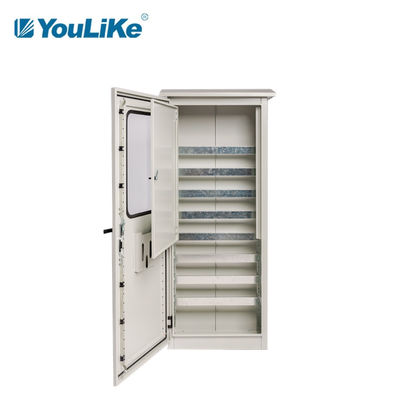

4. components installation strip: for electical components installation.

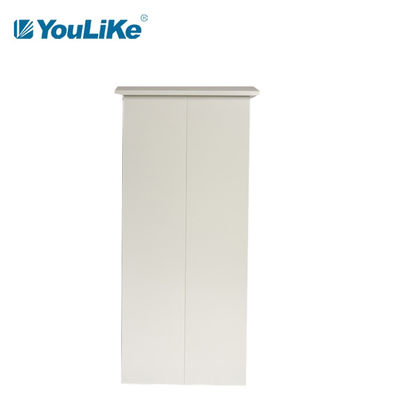

5. Back of box body: removable ,convenient for electrical installation.
6. Components mounting strip &cover: galvanized sheet.
Door Configuration
1. Folding style: dual folding.
2. Reinforcing ribs: 4 reinforcing ribs are compatible with the cable tie function.
3. Grounding screw: M8×16 grounding screw at the bottom left of the cabinet.
4. Lock : MS460color black bar type heaven and earth lock with flat lock pull rod.
5. Foamed tape: for noise reduction and dust prevention.
Specification of BG13-HW series floor type distribution box
| ser | Model | Dimension(mm) | Plate thickness(mm) | Mounting strip dimension(mm) | Quantity | |||
| Width | Height | Depth | Box/Door/mounting plate | Width -35 | Height-60 | pcs | ||
| #1 |
BG13-HW6016037 |
600 | 1600 | 375 | 1.5/1.5/1.5 |
565 | 60 | 8 |
| #2 |
BG13-HW7017037 |
700 | 1700 | 665 | ||||
| #3 |
BG13-HW8018037 |
800 | 1800 | 765 | 9 | |||
| #4 |
BG13-HW6016042 |
600 | 1600 | 425 | 565 | 8 | ||
| #5 |
BG13-HW7017042 |
700 | 1700 | 665 | ||||
| #6 |
BG13-HW8018042 |
800 | 1800 | 765 | 9 | |||
Product Detail Demonstration
Company Profile
1. Founded in 2005, it specializes in the production, R & D and sales of indoor distribution box, multi-media box and power cabinet.
2. The product design takes safety as the core concept, and has obtained 33 design patents, 20 utility model patents and 2 invention patents.
3. It has served 1350 leading real estate companies and 1600 panel builder.
4. In 2015, the sales revenue will exceed 100 million, and the annual box sales volume will reach 3 million pieces.
5. After 16 years of development and customer support, it has also gained a certain reputation.
