Product Details:
|
| Product Name: | Outdoor Power Distribution Cabinet | Door Lock: | Zinc Alloy |
|---|---|---|---|
| Hinge: | Operation Capacity 110° | Folding Style: | Folding Outwards |
| Installation Type: | Floor Type | Surface Treatment: | Powder Coating |
| Color: | RAL7035 | Ingress Protection: | IP43 |
| High Light: | RAL7035 Outdoor Power Distribution Panel,IP43 Outdoor Power Distribution Panel,IP43 distribution board cabinet |
||
Outdoor IP43 Electrical Metal Enclosure Waterproof Power Distribution Electrical Cabinet Price
Product Development Orientation
1. Standardized bottom bow installation.
2. Standardized equipment factory connection.
3. Standardized construction connection.
4. Standardized telecom installation.
Product Characteristics
1. Box to be powder coated steel,
2. Folding style: folding outwards.
3. Floor mounting hole: located at bottom of box body.
4. components installation strip: for electical components installation.
5. Back of box body: removable ,convenient for electrical installation.
6. Components mounting strip &cover: galvanized sheet.
Customer Service
1. OEM/ODM (customized logo/ carton packing/ box depth/ plate thickness)
2. Order arrangement
* ≤15 days stable delivery
* specific MOQ
* multiple payment terms
* order status update
3. Additional service
* 7X24 respondence service
* on site service
* quality discrepancy handle
* accessories coordination
Specification of BG13-21 series floor type distribution box
| ser | Model | Dimension(mm) | Plate thickness(mm) | Mounting strip dimension(mm) | Quantity | |||
| Width | Height | Depth | Box/Door/mounting plate | Width -35 | Height-60 | pcs | ||
| #1 |
BG12-HW6016037 |
600 | 1600 | 375 | 1.5/1.5/1.5 |
565 | 60 | 8 |
| #2 |
BG12-HW7017037 |
700 | 1700 | 665 | ||||
| #3 |
BG12-HW8018037 |
800 | 1800 | 765 | 9 | |||
| #4 |
BG12-HW6016042 |
600 | 1600 | 425 | 565 | 8 | ||
| #5 |
BG12-HW7017042 |
700 | 1700 | 665 | ||||
| #6 |
BG12-HW8018042 |
800 | 1800 | 765 | 9 | |||

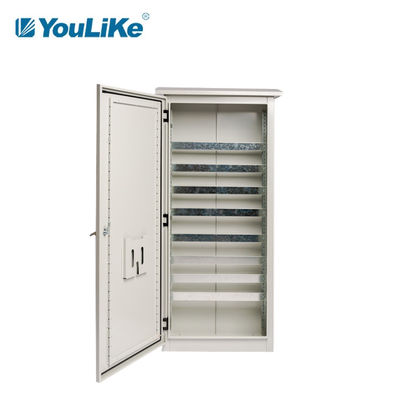

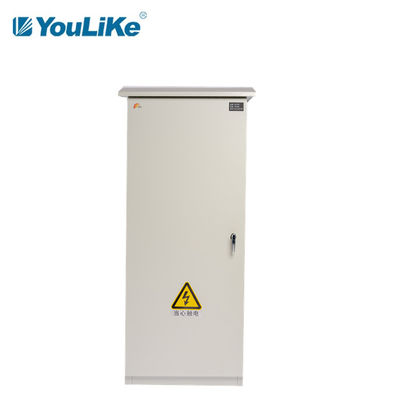

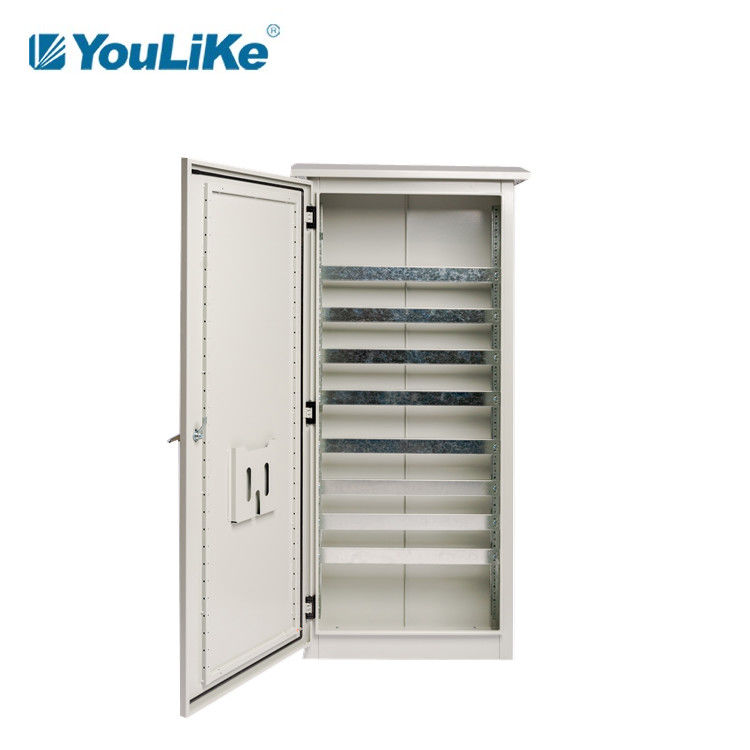

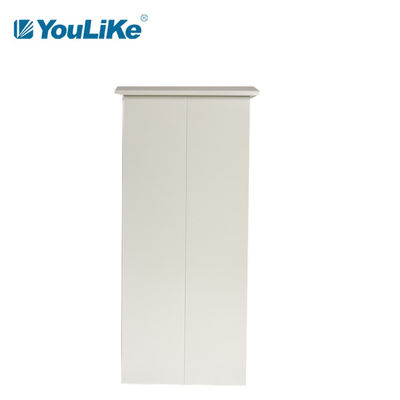

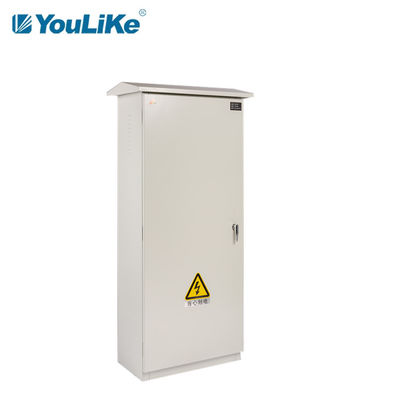

Product Detail Demonstration
Company Profile
1. Founded in 2005, it specializes in the production, R & D and sales of indoor distribution box, multi-media box and power cabinet.
2. The product design takes safety as the core concept, and has obtained 33 design patents, 20 utility model patents and 2 invention patents.
3. It has served 1350 leading real estate companies and 1600 panel builder.
4. In 2015, the sales revenue will exceed 100 million, and the annual box sales volume will reach 3 million pieces.
5. After 16 years of development and customer support, it has also gained a certain reputation.
Workshop Demonstration
Contact Person: Kevin Hu
Tel: +86-18080921570
