Product Details:
|
| Box Material: | 1.0mm Powder Coated Steel | Cover Frame Material: | 1.2mm Powder Coated Steel |
|---|---|---|---|
| Door Material: | 1.2mm Powder Coated Steel | Rated Voltage: | 400V+/-20% |
| Rated Current: | 55A/ 63A | Protection Level: | IP40 |
| High Light: | IP40 Outdoor Power Distribution Panel,400V Outdoor Power Distribution Panel,IP40 power panel board |
||
Product Characteristics
1. Box to be powder coated steel, 1.0mm for 1rows, 1.2mm for 2rows.
2. Cover frame to be 1.2mm powder coated steel material.
3. Door to be 1.2mm powder coated steel.
4. All plastic parts are without specific flame retardant and qualified to pass incandescent wire test at 650℃.
5. Pastic can be customized to flame retardant (grade V1~V0 depends on material choosed).
Plastic parts test result
1. Incandescent wire test at 650℃.
2. Anti-UV test (to reveal plastic anti-ageing performance) ≥250hrs.
3. Xenon arc lamp test ≥250hrs.
4. Hinge operation test ≥10,000 times no break.
Specifications of MX series, Flush
| Model | Way | Cover size | Box size |
Terminals |
Knockouts | ||
| L*H*T (mm) | L*W*D*T(mm) | size(mm) | PE | N | one side qty | ||
| MXP-A 110 | 10way | 272*240*10(24.7) | 256*210*90*1.0 | 6.4*12 | 6 | 7 | 6 |
| MXP-A 112 | 12way | 308*240*10(24.7) | 292*210*90*1.0 | 6.4*12 | 8 | 9 | 7 |
| MXP-A 114 | 14way | 344*260*10(24.7) | 328*230*90*1.0 | 6.4*12 | 8 | 9 | 8 |
| MXP-A 116 | 16way | 380*260*10(24.7) | 364*230*90*1.0 | 6.4*12 | 10 | 11 | 9 |
| MXP-A 118 | 18way | 416*260*10(24.7) | 400*230*90*1.0 | 6.4*12 | 10 | 11 | 10 |
| MXP-A 120 | 20way | 452*260*10(24.7) | 436*230*90*1.0 | 6.4*12 | 12 | 13 | 11 |
| MXP-A 224 | 24way | 325*460*12(24.7) | 305*420*100*1.2 | 8*12 | 12 | 13 | 7 |
| MXP-A 232 | 32way | 397*460*12(24.7) | 377*420*100*1.2 | 8*12 | 15 | 15 | 9 |
| MXP-A 240 | 40way | 469*460*12(24.7) | 449*420*100*1.2 | 8*12 | 17 | 17 | 11 |
Product Details Demonstration

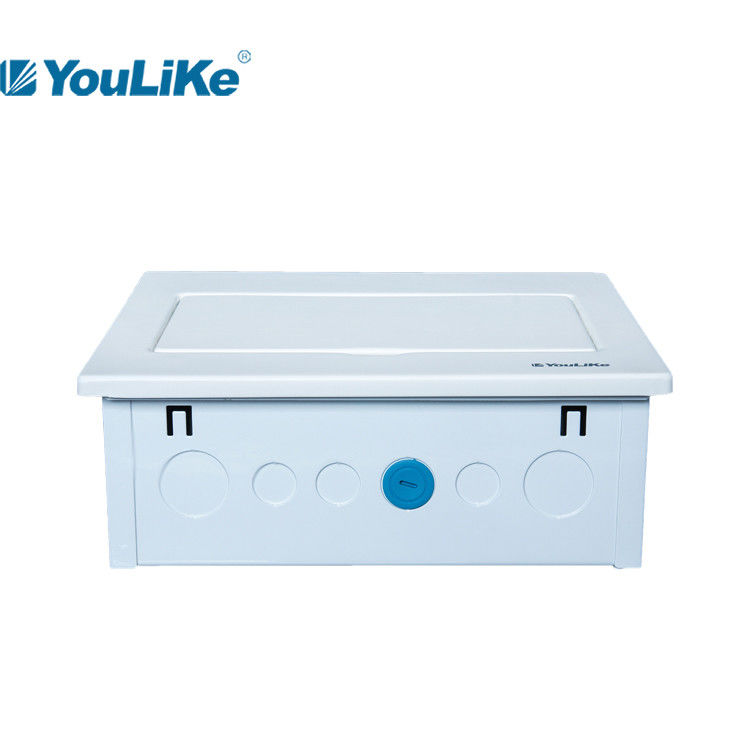

MX series is used for indoor power distribution mainly for lighting control.
#1. Din rail to be galvanized steel, with horizontal & vertical adjustment funtion.
#2. Copper terminals (1pcs earthing & 1pcs neutral) is with 60% composition.
#3. Stainless earthing bolts with warning label, metal cover also equiped with earthing bolt.
#4. Full metal cover manufactured by integral stretching formation, with extreme high tensile strength.
#5. Box equiped with plastic knockouts as well as plastic wire clamps.
Application
Mainly used for indoor lighting control for residential and commercial buildings.
Packing
| Model | Carton size | Volume/ctn | Pcs/ctn | Calculated weight(kgs/ctn) | |
| mm | m³ | net weight | gross weight | ||
| MXP-A 110 | 550*260*300 | 0.0429 | 5 | 13.7 | 14.8 |
| MXP-A 112 | 550*260*340 | 0.0487 | 5 | 15.1 | 16.4 |
| MXP-A 114 | 550*280*375 | 0.0578 | 5 | 17 | 18.5 |
| MXP-A 116 | 550*280*410 | 0.0632 | 5 | 18.5 | 20 |
| MXP-A 118 | 440*280*235 | 0.0290 | 2 | 8 | 8.8 |
| MXP-A 120 | 475*280*235 | 0.0313 | 2 | 8.6 | 9.5 |
| MXP-A 224 | 520*170*390 | 0.0345 | 1 | 6 | 6.7 |
| MXP-A 232 | 520*170*460 | 0.0407 | 1 | 7.2 | 7.8 |
| MXP-A 240 | 520*170*530 | 0.0469 | 1 | 8.2 | 9 |
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no additional charge.
