Product Details:
|
| Product Name: | Surface Mounted Power Distribution Cabinet | Hinge: | Zinc Alloy |
|---|---|---|---|
| Certificate: | CCC,CE | Plate Thickness: | 1.5mm |
| Folding Style: | Folding Outwards | Surface Treatment: | Powder Coating |
| Color: | RAL7035 | Ingress Protection: | IP42 |
| High Light: | RAL7035 surface mount db board,IP42 surface mount db board,IP42 Power Control Cabinet |
||

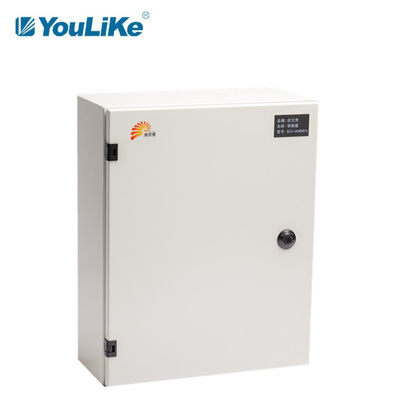

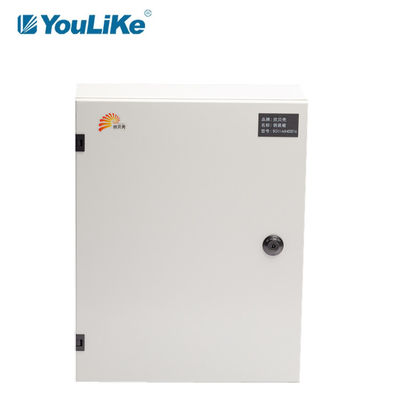

Surface mounted IP 42 Power Control Cabinet Box Electrical Metal Enclosure Electrical Distribution Cabinet

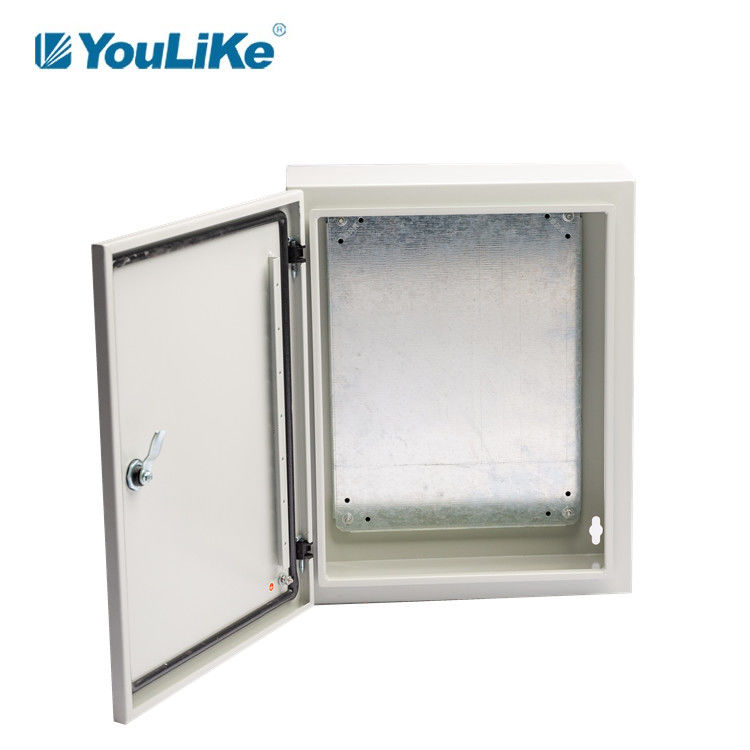

Box Body Configuration
1. Box mouth: flanging all around.
2. Component board: 1pcs per each box, which is used to install electrical components.
3. Wire passing rack: it is located at the top and bottom of the left side of the bottom box and is used for wire binding of electrical parts.
4. Grounding screw: there is a grounding screw M6×14 under the left side of the bottom box.
5. Wall hanging holes: there are 4 wall hanging holes on the back of the bottom box, which are used to install the box.
Door Feature
Folding style:dual folding.
Lock: MS401 disc lock, color black, zinc alloy material.
Cushion: for RX-MX-10 ONLY.
Foamed tape: For RX-MX-11 ONLY.
Hinge: HL003, color black, zinc alloy material, surface mounted, operation capacity 180°.
Quality Assurance
1. Official quality assurance,two-year warranty.
2. The plate thickness meets the national standard without error.
3. The materials used in the product are all new and high-quality materials,and there are no waste recycled materials.
4. The product has China Compulsory Product Certification number and meets the national CCC certification standard.
Specification of BX11-MX series floor type distribution box
| ser | Model | Dimension(mm) | Plate thickness(mm) | Component board dimension(mm) | Quantity | |||
| Width | Height | Depth | Box/Door/mounting plate | Width -90 | Height-90 | pcs | ||
| #1 |
BX11-MX304016 |
300 | 400 | 160 | 1.2/1.2/1.5 |
210 | 310 | 1 |
| #2 |
BX11-MX405016 |
400 | 500 | 310 | 410 | |||
| #3 |
BX11-MX506016 |
500 | 600 | 410 | 510 | |||
| #4 |
BX11-MX507016 |
500 | 700 | 1.2/1.5/1.5 | 410 | 610 | ||
| #5 |
BX11-MX607016 |
6007 | 700 | 510 | 610 | |||
| #6 |
BX11-MX608016 |
600 | 800 | 510 | 710 | |||
| #7 | BX11-MX709016 | 700 | 900 | 610 | 810 | 2 | ||
| #8 | BX11-MX405020 | 400 | 500 | 200 | 1.2/1.2/1.5 | 310 | 410 | 1 |
| #9 | BX11-MX506020 | 500 | 600 | 410 | 510 | |||
| #10 | BX11-MX507020 | 500 | 700 | 1.2/1.5/1.5 | 410 | 610 | ||
| #11 | BX11-MX607020 | 600 | 700 | 510 | 610 | |||
| #12 | BX11-MX608020 | 600 | 800 | 510 | 710 | |||
| #13 | BX11-MX709020 | 700 | 900 | 610 | 810 | 2 | ||
| #14 | BX11-MX7010020 | 700 | 1000 | 610 | 910 | |||
| #15 | BX11-MX405024 | 400 | 500 | 240 | 1.2/1.2/1.5 | 310 | 410 | 1 |
| #16 | BX11-MX506024 | 500 | 600 | 410 | 510 | |||
| #17 | BX11-MX507024 | 500 | 700 | 1.2/1.5/1.5 | 410 | 610 | ||
| #18 | BX11-MX607024 | 600 | 700 | 510 | 610 | |||
| #19 | BX11-MX608024 | 600 | 800 | 510 | 710 | |||
| #20 | BX11-MX709024 | 700 | 900 | 610 | 810 | 2 | ||
| #21 | BX11-MX7010024 | 700 | 1000 | 610 | 910 | |||
Product Detail Demonstration
