Product Details:
|
| Product Name: | Wall Mounted Power Distribution Cabinet | Function: | Waterproof |
|---|---|---|---|
| Certificate: | CCC,CE | Plate Thickness: | 1.5mm |
| Folding Style: | Folding Outwards | Surface Treatment: | Powder Coating |
| Color: | RAL7035 | Ingress Protection: | IP42 |
| High Light: | 1.5mm Wall Mount Distribution Box,IP42 Wall Mount Distribution Box,IP42 circuit breaker distribution box |
||
Waterproof IP42 Box Metal Distribution Boards Metal Electric Distribution Cabinet
Box Body Configuration
Folding style: folding outwards.
Removable plate: located at bottom&top of box body, material to be galvanized sheet without powder coating.
Wiring bracket: at left side of box.
Mounting plate: 1pcs per each box, for electical components installation.
Door Configuration
Folding style:dual folding.
Lock: MS401 disc lock, color black, zinc alloy material.
Cushion: for RX-MX-10 ONLY.
Foamed tape: For RX-MX-11 ONLY.
Hinge: HL003, color black, zinc alloy material, surface mounted, operation capacity 180°.
Customer Service
1. OEM/ODM (customized logo/ carton packing/ box depth/ plate thickness).
2. Order arrangement.
* ≤15 days stable delivery.
* specific MOQ.
* multiple payment terms.
* order status update.
3. Additional service.
* 7X24 respondence service.
* on site service.
* quality discrepancy handle.
* accessories coordination.
Specification of BX11-AX series floor type distribution box
| ser | Model | Dimension(mm) | Plate thickness(mm) | Component board dimension(mm) | Quantity | |||
| Width | Height | Depth | Box/Door/mounting plate | Width -90 | Height-90 | pcs | ||
| #1 | BX11-AX304016 | 300 | 400 | 160 | 1.2/1.2/1.5 | 210 | 310 | 1 |
| #2 | BX11-AX405016 | 400 | 500 | 310 | 410 | |||
| #3 | BX11-AX506016 | 500 | 600 | 410 | 510 | |||
| #4 | BX11-AX507016 | 500 | 700 | 1.2/1.5/1.5 | 410 | 610 | ||
| #5 | BX11-AX607016 | 6007 | 700 | 510 | 610 | |||
| #6 | BX11-AX608016 | 600 | 800 | 510 | 710 | |||
| #7 | BX11-AX709016 | 700 | 900 | 610 | 810 | 2 | ||
| #8 | BX11-AX405020 | 400 | 500 | 200 | 1.2/1.2/1.5 | 310 | 410 | 1 |
| #9 | BX11-AX506020 | 500 | 600 | 410 | 510 | |||
| #10 | BX11-AX507020 | 500 | 700 | 1.2/1.5/1.5 | 410 | 610 | ||
| #11 | BX11-AX607020 | 600 | 700 | 510 | 610 | |||
| #12 | BX11-AX608020 | 600 | 800 | 510 | 710 | |||
| #13 | BX11-AX709020 | 700 | 900 | 610 | 810 | 2 | ||
| #14 | BX11-MX7010020 | 700 | 1000 | 610 | 910 | |||
| #15 | BX11-AX405024 | 400 | 500 | 240 | 1.2/1.2/1.5 | 310 | 410 | 1 |
| #16 | BX11-AX506024 | 500 | 600 | 410 | 510 | |||
| #17 | BX11-AX507024 | 500 | 700 | 1.2/1.5/1.5 | 410 | 610 | ||
| #18 | BX11-AX607024 | 600 | 700 | 510 | 610 | |||
| #19 | BX11-AX608024 | 600 | 800 | 510 | 710 | |||
| #20 | BX11-AX709024 | 700 | 900 | 610 | 810 | 2 | ||
| #21 | BX11-AX7010024 | 700 | 1000 | 610 | 910 | |||

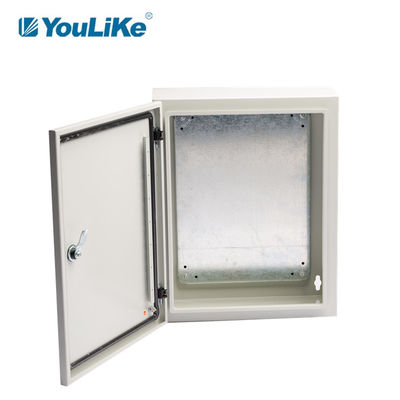

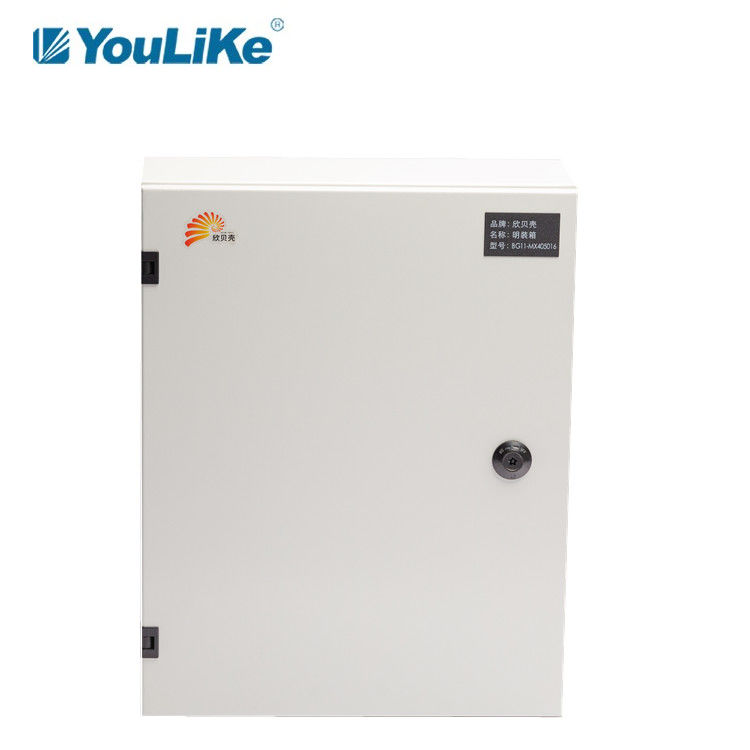

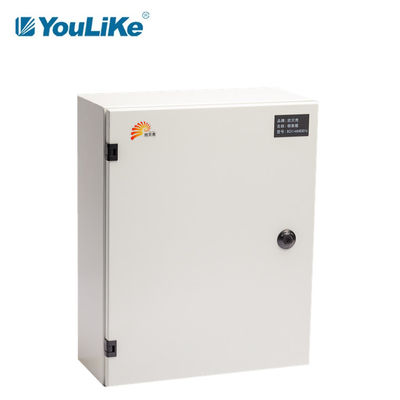

Product Detail Demonstration
Company Profile
1. Founded in 2005, it specializes in the production, R & D and sales of indoor distribution box, multi-media box and power cabinet.
2. The product design takes safety as the core concept, and has obtained 33 design patents, 20 utility model patents and 2 invention patents.
3. It has served 1350 leading real estate companies and 1600 panel builder.
4. In 2015, the sales revenue will exceed 100 million, and the annual box sales volume will reach 3 million pieces.
5. After 16 years of development and customer support, it has also gained a certain reputation.
