Product Details:
|
| Product Name: | Circuit Breaker Distribution Box | Door Material: | HIPS/PC |
|---|---|---|---|
| Function: | Power Charging | Box Material: | 0.8&1.0mm Powder Coated Steel |
| Rated Current: | 55A/ 63A | Protection Level: | IP40 |
| Rated Voltage: | 400V+/-20% | Panel Material: | Plastic |
| High Light: | 18 Way home mcb box,Electrical home mcb box,55A MCB Box 18 Way |
||

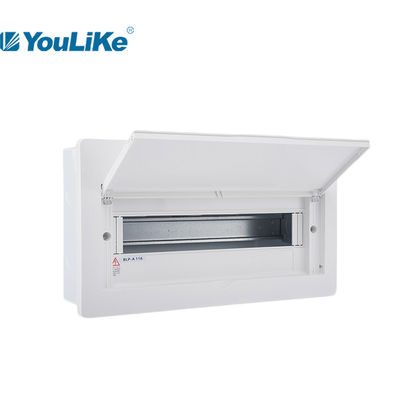

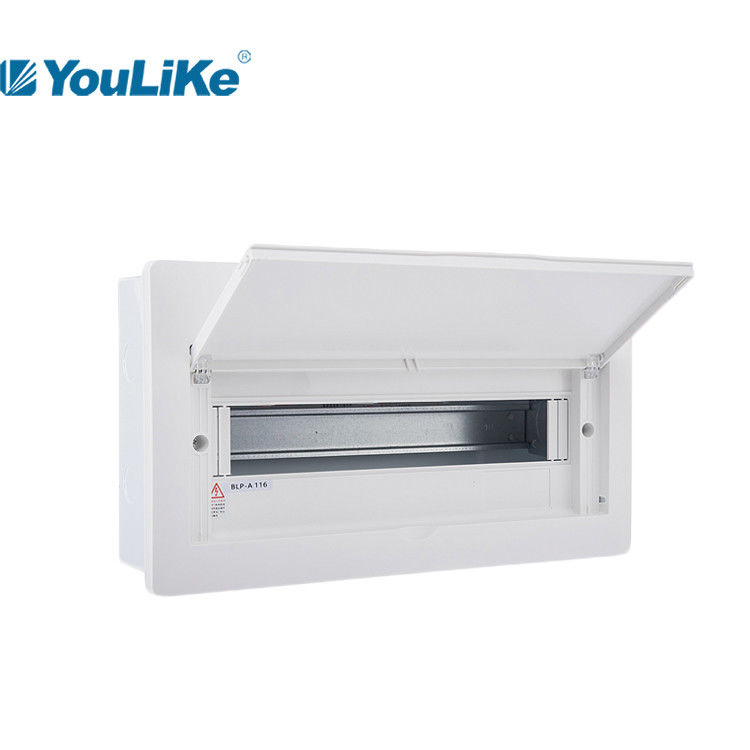

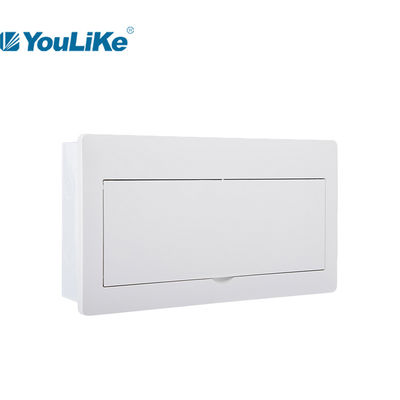

A Series White Distribution Box Surface Mounting Switchboard 18 Way Electrical Enclosure Mcb Box
Quality Assurance
1. national CCC certification standard.
2. The plate thickness meets the national standard without error.
3. All brand-new high-quality materials.
4. The protection level reaches IP40.
Product Advantage
1. Select the copper bar with 60% content, which can not crack and slide the wire continuously, and the conductivity is smooth Add line cards to better standardize wiring.
2. The grounding screw is made of stainless steel, which is safe and reliable.
3. All panels are made of brand-new materials, durable and beautiful.
4. The new hinge structure makes users safer.
5. The box mouth adopts double bending design to facilitate cleaning and protect the safety of devices.
Company profile
1. Founded in 2005, it specializes in the production, R & D and sales of indoor distribution box, multi-media box and power cabinet.
2. The product design takes safety as the core concept, and has obtained 33 design patents, 20 utility model patents and 2 invention patents.
3. It has served 1350 leading real estate companies and 1600 panel builder.
4. In 2015, the sales revenue will exceed 100 million, and the annual box sales volume will reach 3 million pieces.
5. After 16 years of development and customer support, it has also gained a certain reputation.
Specifications of BL series, Flush
| Model | Way | Cover size | Box size |
Terminals |
Knockouts | ||
| L*H*T (mm) | L*W*D*T(mm) | size(mm) | PE | N | one side qty | ||
| BLP-A 110 | 10way | 268*210*17.5(26) | 246*192*80*0.8 | 6*10.4 | 6 | 5 | 5 |
| BLP-A 113 | 13way | 322*210*17.5(26) | 300*192*80*0.8 | 6*10.4 | 6 | 5 | 6 |
| BLP-A 116 | 16way | 376*210*17.5(26) | 354*192*80*0.8 | 6*10.4 | 8 | 7 | 7 |
| BLP-A 118 | 18way | 412*210*17.5(26) | 390*192*80*0.8 | 6*10.4 | 11 | 10 | 8 |
| BLP-A 121 | 21way | 466*210*17.5(26) | 444*192*80*0.8 | 6*10.4 | 11 | 10 | 10 |
| BLP-A 124 | 24way | 520*250*17.5(26.5) | 498*230*90*1.0 | 6*10.4 | 11 | 10 | 8 |
| BLP-A 226 | 26way | 322*405*17.5(28.3) | 300*380*90*1.0 | 6*10.4 | 13 | 12 | 6 |
| BLP-A 232 | 32way | 375*405*17.5(28.3) | 354*380*90*1.0 | 6*10.4 | 13 | 12 | 7 |
| BLP-A 242 | 42way | 466*405*17.5(28.3) | 444*380*90*1.0 | 6*10.4 | 18 | 15 | 10 |

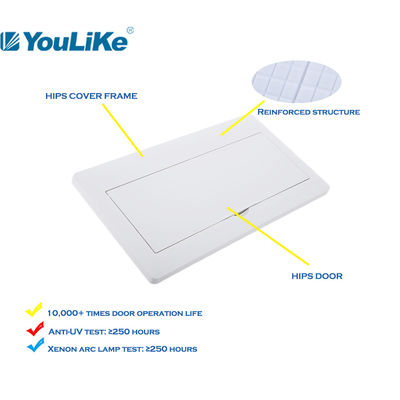

Product Details Demonstration
Packing
| Model | Carton size | Volume/ctn | Pcs/ctn | Calculated weight(kgs/ctn) | |
| mm | m³ | net weight | gross weight | ||
| BLP-A 110 | 525*290*455 | 0.0693 | 10 | 14.66 | |
| BLP-A 113 | 525*345*455 | 0.0825 | 10 | 17.10 | |
| BLP-A 116 | 525*235*405 | 0.0450 | 5 | 9.25 | |
| BLP-A 118 | 525*235*440 | 0.0543 | 5 | 10.20 | |
| BLP-A 121 | 525*235*495 | 0.0611 | 5 | 11.65 | |
| BLP-A 124 | 545*240*280 | 0.0367 | 2 | 6.70 | |
| BLP-A 226 | 460*135*385 | 0.0239 | 1 | 3.60 | |
| BLP-A 232 | 455*160*425 | 0.0310 | 1 | 4.05 | |
| BLP-A 242 | 510*160*460 | 0.0376 | 1 | 4.75 | |
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no additional charge.
Customer Service
1. OEM/ODM (customized logo/ carton packing/ box depth/ plate thickness)
2. Order arrangement
* ≤15 days stable delivery
* specific MOQ
* multiple payment terms
* order status update
3. Additional service
* 7X24 respondence service
* on site service
* quality discrepancy handle
* accessories coordination
