Product Details:
|
| Product Name: | Surface Distribution Box | Anti Discoloration: | Level 4 |
|---|---|---|---|
| Cover Material: | HIPS/HIPS+PC | Structure: | Safety |
| Hinges: | Special Design Patent | Rated Currency: | 63A/80A |
| Mounting Type: | Surface Mounted | Protection Level: | IP40 |
| High Light: | 32 Way Plastic MCB Box,HIPS Plastic MCB Box,HIPS mcb box 32 way |
||

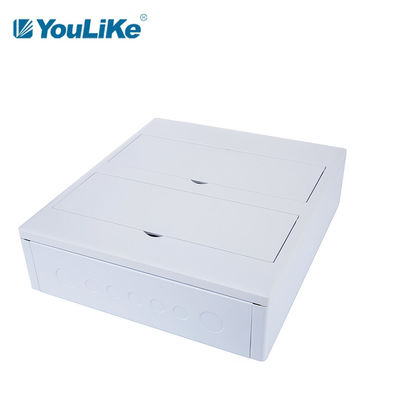

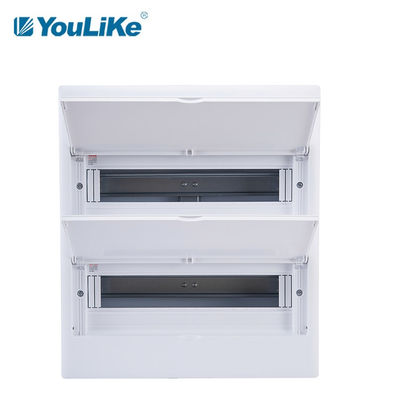

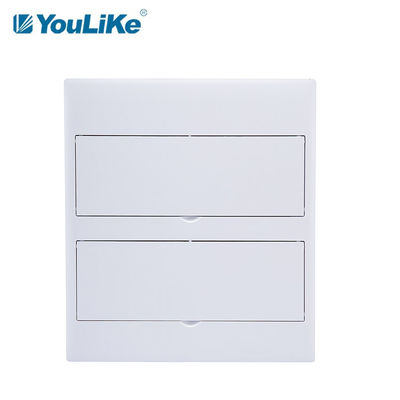

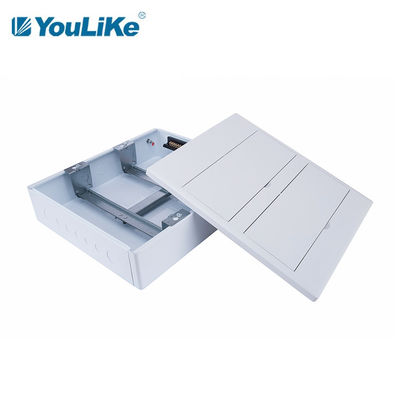

32 Ways Indoor HIPS Plastic Shell Combiner Box Junction Box Power Distribution Box
Safety Qualification Elements
1. Copper bar:smooth conduction, safe and reliable.
2. Wiring :wiring specification, standard safety.
3. Grounding:stainless steel, safe and reliable.
4. Raw materials:brand new plastic, durable and beautiful.
Plastic Parts Test Result
1. Incandescent wire test at 650℃.
2. Anti-UV test (to reveal plastic anti-ageing performance) ≥250hrs.
3. Xenon arc lamp test ≥250hrs.
4. Hinge operation test ≥10,000 times no break.
Attention Points
1. When the bottom box is embedded with concrete and poured on site, the bottom box needs to be supported up and down, left and right to prevent the bottom box from deformation.
2. During the installation of the upper wall of the bottom box, it is forbidden to block the threaded hole on the right plate with cement mortar.
3. The maximum bearing torque of the grounding screw on the bottom box is 20n. m.
4. It is recommended to install the support panel after the wall is puttying.
Specifications of JX series, Surface
| Model | Way | Cover size | Box size |
Terminals |
Knockouts | ||
| L*H*T (mm) | L*W*D*T(mm) | size(mm) | PE | N | one side qty | ||
| JXP-M 106 | 6way | 178*210*17.5(26) | 177*209*75*0.8 | 6*9 | 4 | 3 | 2 |
| JXP-M 110 | 10way | 250*210*17.5(26) | 249*209*75*0.8 | 6*9 | 6 | 5 | 5 |
| JXP-M 113 | 13way | 304*210*17.5(26) | 303*209*75*0.8 | 6*9 | 6 | 5 | 6 |
| JXP-M 116 | 16way | 358*210*17.5(26) | 357*209*75*0.8 | 6*9 | 8 | 7 | 7 |
| JXP-M118 | 18way | 394*210*17.5(26) | 393*209*75*0.8 | 6*9 | 11 | 10 | 8 |
| JXP-M 121 | 21way | 448*210*17.5(26) | 477*209*75*0.8 | 6*9 | 11 | 10 | 10 |
| JXP-M 232 | 32way | 358*405*17.5(26) | 357*404*75*0.8 | 6*9 | 13 | 12 | 7 |
| JXP-M 242 | 42way | 448*405*17.5(26) | 447*404*75*0.8 | 6*9 | 16 | 15 | 10 |
Workshop Demonstration
Packing
| Model | Carton size | Volume/ctn | Pcs/ctn | Calculated weight(kgs/ctn) | |
| mm | m³ | net weight | gross weight | ||
| JXP-M 106 | 505*200*455 | 0.0460 | 10 | ||
| JXP-M 110 | 505*275*455 | 0.0632 | 10 | 14.66 | |
| JXP-M 113 | 505*325*455 | 0.0747 | 10 | 17.10 | |
| JXP-M 116 | 505*230*385 | 0.0448 | 5 | 9.25 | |
| JXP-M 118 | 505*230*425 | 0.0494 | 5 | 10.20 | |
| JXP-M 121 | 505*230*475 | 0.0552 | 5 | 11.65 | |
| JXP-M 232 | 460*135*420 | 0.0261 | 1 | 4.05 | |
| JXP-M 242 | 505*135*465 | 0.0317 | 1 | 4.75 | |
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no additional charge.
