Product Details:
|
| Product Name: | Surface Distribution Box | Structure: | Safety |
|---|---|---|---|
| Cover Material: | HIPS/HIPS+PC | Hinges: | Special Design Patent |
| Terminal Dimension: | 6x9mm | Anti Discoloration: | Level 4 |
| Application: | Residential | Protection Level: | IP40 |
| High Light: | HIPS Indoor Electrical Panel,Two Phase DB Indoor Electrical Panel,HIPS Interior Electrical Panel |
||
Electrical Control Power Distribution Box Plastic Indoor Cabinet Enclosure Box Two Phase Db Box
Product Feature

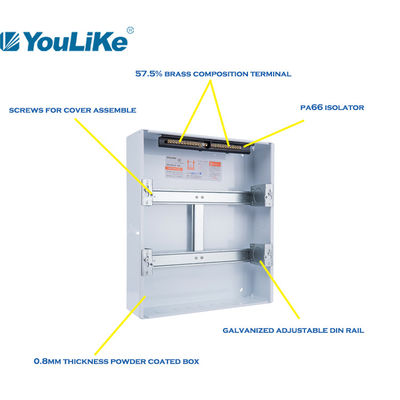

1. Box material: powder coated steel
2. Cover frame material:HIPS
3. Door material: HIPS/PC (transparent door and white door )
4. All plastic parts : without specific flame retardant
5. Pastic can be customized to flame retardant (grade V1~V0 depends on material choosed).

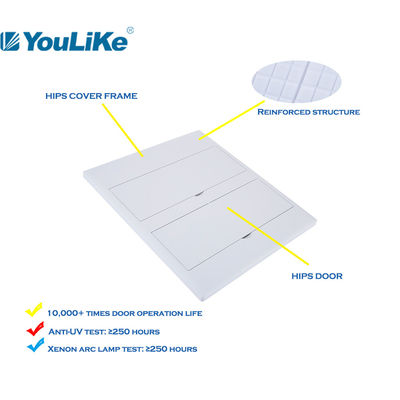

Plastic Parts Test Result
1. Incandescent wire test at 650℃.
2. Anti-UV test (to reveal plastic anti-ageing performance) ≥250hrs.
3. Xenon arc lamp test ≥250hrs.
4. Hinge operation test ≥10,000 times no break.
Attention Points
1. When the bottom box is embedded with concrete and poured on site, the bottom box needs to be supported up and down, left and right to prevent the bottom box from deformation.
2. During the installation of the upper wall of the bottom box, it is forbidden to block the threaded hole on the right plate with cement mortar.
3. The maximum bearing torque of the grounding screw on the bottom box is 20n. m.
4. It is recommended to install the support panel after the wall is puttying.
Specifications of JX series, Surface
| Model | Way | Cover size | Box size |
Terminals |
Knockouts | ||
| L*H*T (mm) | L*W*D*T(mm) | size(mm) | PE | N | one side qty | ||
| JXP-M 106 | 6way | 178*210*17.5(26) | 177*209*75*0.8 | 6*9 | 4 | 3 | 2 |
| JXP-M 110 | 10way | 250*210*17.5(26) | 249*209*75*0.8 | 6*9 | 6 | 5 | 5 |
| JXP-M 113 | 13way | 304*210*17.5(26) | 303*209*75*0.8 | 6*9 | 6 | 5 | 6 |
| JXP-M 116 | 16way | 358*210*17.5(26) | 357*209*75*0.8 | 6*9 | 8 | 7 | 7 |
| JXP-M118 | 18way | 394*210*17.5(26) | 393*209*75*0.8 | 6*9 | 11 | 10 | 8 |
| JXP-M 121 | 21way | 448*210*17.5(26) | 477*209*75*0.8 | 6*9 | 11 | 10 | 10 |
| JXP-M 232 | 32way | 358*405*17.5(26) | 357*404*75*0.8 | 6*9 | 13 | 12 | 7 |
| JXP-M 242 | 42way | 448*405*17.5(26) | 447*404*75*0.8 | 6*9 | 16 | 15 | 10 |
Workshop Demonstration
Packing
| Model | Carton size | Volume/ctn | Pcs/ctn | Calculated weight(kgs/ctn) | |
| mm | m³ | net weight | gross weight | ||
| JXP-M 106 | 505*200*455 | 0.0460 | 10 | ||
| JXP-M 110 | 505*275*455 | 0.0632 | 10 | 14.66 | |
| JXP-M 113 | 505*325*455 | 0.0747 | 10 | 17.10 | |
| JXP-M 116 | 505*230*385 | 0.0448 | 5 | 9.25 | |
| JXP-M 118 | 505*230*425 | 0.0494 | 5 | 10.20 | |
| JXP-M 121 | 505*230*475 | 0.0552 | 5 | 11.65 | |
| JXP-M 232 | 460*135*420 | 0.0261 | 1 | 4.05 | |
| JXP-M 242 | 505*135*465 | 0.0317 | 1 | 4.75 | |
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no additional charge.
