Product Details:
|
| Product Name: | Electrical Distribution Box | Cover Frame Material: | PC |
|---|---|---|---|
| Surface Treatment: | Powder Coating Spray | Color: | White |
| Way Dimension: | 18mm | Open Degree: | 180° From Right To Left |
| Installation Type: | Wall-mounted(flush Mounted) | MOQ: | 100pcs |
| High Light: | 3 Row 3 phase mcb box,45 Way 3 phase distribution box,45 Way three phase distribution board |
||

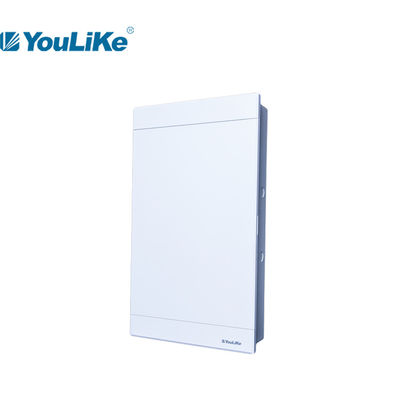

45 Way 3 Row Metal 3 Phase White Power Distribution Box Control Panel Box Distribution Board
Application
M5 series is used for indoor power distribution mainly for lighting control for residential and commercial buildings.
1. Din rail to be galvanized steel, with horizontal & vertical adjustment funtion.
2. Copper terminals (1pcs earthing & 1pcs neutral) is with 6% composition.
3. Stainless earthing bolts with warning label.
4. Reinforced structure design to allow higher tensile strength of plastic cover.
5. Plastic wire clamps is equiped below the din rail.
Safety Qualification Elements
1. Copper bar:smooth conduction, safe and reliable
2. Wiring :wiring specification, standard safety
3. Grounding:stainless steel, safe and reliable
4. Raw materials:brand new plastic, durable and beautiful
Attention Points
1. When the bottom box is embedded with concrete and poured on site, the bottom box needs to be supported up and down, left and right to prevent the bottom box from deformation.
2. During the installation of the upper wall of the bottom box, it is forbidden to block the threaded hole on the right plate with cement mortar.
3. The maximum bearing torque of the grounding screw on the bottom box is 20n. m.
4. It is recommended to install the support panel after the wall is puttying.
Specifications of M5 series, Flush
| Model | Way | Cover size | Box size |
Terminals |
Knockouts | ||
| L*H*T (mm) | L*W*D*T(mm) | size(mm) | PE | N | one side qty | ||
| M5-A 107 | 7way | 224*240*15.5(27.5) | 202*210*90*1.0 | 6.4*12 | 5 | 6 | 6 |
| M5-A 110 | 10way | 278*240*15.5(27.5) | 256*210*90*1.0 | 6.4*12 | 7 | 8 | 7 |
| M5-A 112 | 12way | 316*240*15.5(27.5) | 292*210*90*1.0 | 6.4*12 | 7 | 8 | 8 |
| M5-A 115 | 15way | 370*260*15.5(27.5) | 346*210*90*1.0 | 6.4*12 | 9 | 10 | 9 |
| M5-A 118 | 18way | 424*260*15.5(27.5) | 400*210*90*1.0 | 6.4*12 | 12 | 13 | 10 |
| M5-A 121 | 21way | 478*260*15.5(27.5) | 454*210*90*1.0 | 6.4*12 | 12 | 13 | 12 |
| M5-A 224 | 24way | 335*460*19(31) | 305*420*100*1.2 | 8*12 | 12 | 13 | 9 |
| M5-A 230 | 30way | 375*480*18(30) | 345*450*100*1.2 | 8*12 | 2*9 | 2*10 | 10 |
| M5-A 345 | 45way | 375*650*18(30) | 345*620*100*1.2 | 8*12 | 2*12 | 2*13 | 10 |

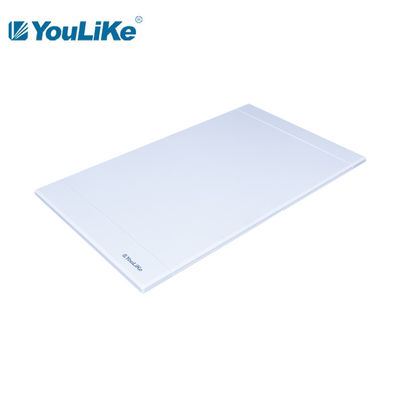

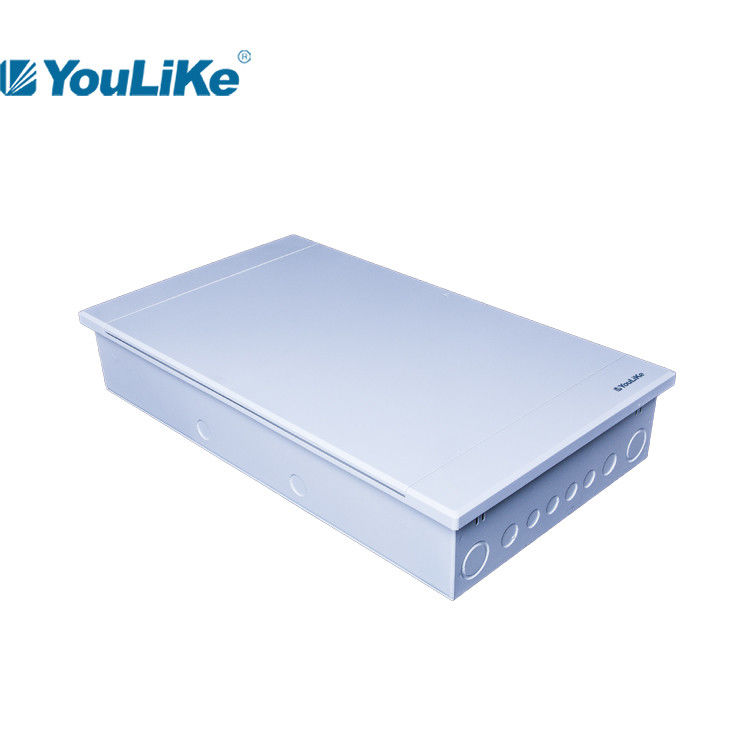

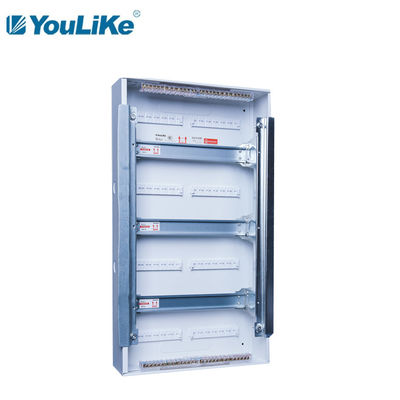

Product Details Demonstration
Packing
| Model | Carton size | Volume/ctn | Pcs/ctn | Calculated weight(kgs/ctn) | |
| mm | m³ | net weight | gross weight | ||
| M5-A 107 | 580*245*515 | 0.0732 | 10 | 9.58 | |
| M5-A 110 | 580*300*515 | 0.0896 | 10 | 14.66 | |
| M5-A 112 | 580*340*515 | 0.1016 | 10 | 17.10 | |
| M5-A 115 | 580*280*400 | 0.0650 | 5 | 9.25 | |
| M5-A 118 | 580*280*455 | 0.0739 | 5 | 10.20 | |
| M5-A 121 | 580*280*505 | 0.0821 | 5 | 11.65 | |
| M5-A 224 | 505*165*390 | 0.0325 | 1 | 6.70 | |
| M5-A 230 | 525*160*425 | 0.0357 | 1 | 3.60 | |
| M5-A 345 | 695*160*425 | 0.0473 | 1 | 4.05 | |
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no additional charge.
