Product Details:
|
| Product Name: | 30 Way Electrical Mcb Box | Material: | Metal+plastic |
|---|---|---|---|
| Certificate: | CCC | Plate Thickness: | 0.8mm/1mm/1.2mm |
| Protection Degree: | IP40 | Function Of Distribution Box: | Protect MCB And Other Devices |
| Mounting Type: | Flush Mounting | Copper Terminals: | Safe And Full Material |
| High Light: | PC Plastic MCB Box,30 way Plastic MCB Box,PC Plastic 30 way mcb box |
||

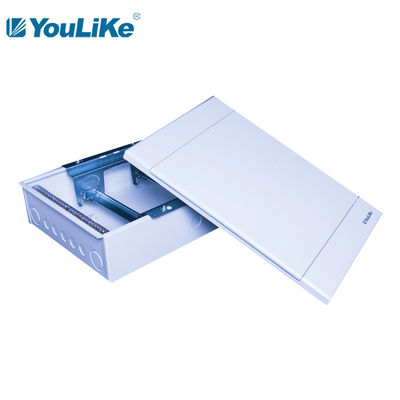

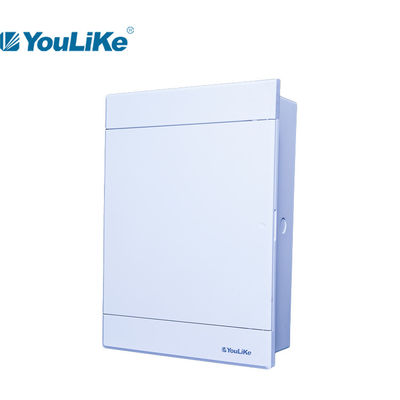

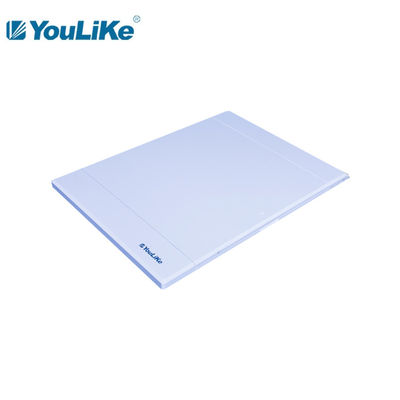

Indoor 30 Way Plastic Circuit Breaker Box Electrical Distribution Board White Door
Feature
Flush type and surface distribution boxes/distribution boards are mainly used in the circuit Of AC 50Hz, rated voltage 220V/380V, and acted to install the modular combination equipment. It is widely used in the family, high building, house, station, port, airport, commercial house, hospital,cinema, enterprises and so on occasion.
Attention Points
1. When the bottom box is embedded with concrete and poured on site, the bottom box needs to be supported up and down, left and right to prevent the bottom box from deformation.
2. During the installation of the upper wall of the bottom box, it is forbidden to block the threaded hole on the right plate with cement mortar.
3. The maximum bearing torque of the grounding screw on the bottom box is 20n. m.
4. It is recommended to install the support panel after the wall is puttying.
| Model Number | M5-A 230 |
| Color | white |
| Material | metal for body, cover for PC |
| Base Box Size | 345*450*100*1.2mm |
| Cover Size | 375*480*18(30)mm |
| Rated Voltage | AC400v(+/-20%) |
| Rated Frequency | 50-60H |
| Application | consumers and commercial buildings |
| Warranty | 2 years |
| Package | in color box or neutral carton |
| OEM | accept |
Specifications of M5 series, Flush
| Model | Way | Cover size | Box size |
Terminals |
Knockouts | ||
| L*H*T (mm) | L*W*D*T(mm) | size(mm) | PE | N | one side qty | ||
| M5-A 107 | 7way | 224*240*15.5(27.5) | 202*210*90*1.0 | 6.4*12 | 5 | 6 | 6 |
| M5-A 110 | 10way | 278*240*15.5(27.5) | 256*210*90*1.0 | 6.4*12 | 7 | 8 | 7 |
| M5-A 112 | 12way | 316*240*15.5(27.5) | 292*210*90*1.0 | 6.4*12 | 7 | 8 | 8 |
| M5-A 115 | 15way | 370*260*15.5(27.5) | 346*210*90*1.0 | 6.4*12 | 9 | 10 | 9 |
| M5-A 118 | 18way | 424*260*15.5(27.5) | 400*210*90*1.0 | 6.4*12 | 12 | 13 | 10 |
| M5-A 121 | 21way | 478*260*15.5(27.5) | 454*210*90*1.0 | 6.4*12 | 12 | 13 | 12 |
| M5-A 224 | 24way | 335*460*19(31) | 305*420*100*1.2 | 8*12 | 12 | 13 | 9 |
| M5-A 230 | 30way | 375*480*18(30) | 345*450*100*1.2 | 8*12 | 2*9 | 2*10 | 10 |
| M5-A 345 | 45way | 375*650*18(30) | 345*620*100*1.2 | 8*12 | 2*12 | 2*13 | 10 |
Product Detail Demonstration
