Product Details:
|
| Box Material: | 1.2mm Powder Coated Steel | Cover Frame Material: | 1.2mm Powder Coated Steel |
|---|---|---|---|
| Door Material: | 1.2mm Powder Coated Steel | Rated Voltage: | 400V+/-20% |
| Rated Current: | 55A/ 63A | Protection Level: | IP40 |
| Product Name: | Electrical Distribution Box | Lock: | Available On Request |
| High Light: | MCCB Wall Mount Distribution Box,IP40 Wall Mount Distribution Box,IP40 mccb distribution board |
||

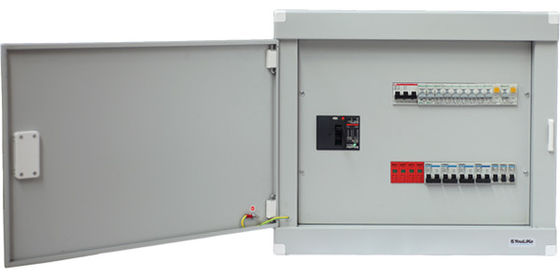

IP40 Electrical Power Distribution Box MCCB MCB Panel Board Wall Mount Steel Sheet Cabinet
Product Characteristics
1. Product to be full metal, both cover and box to be 1.2mm thickness powder coated steel.
2. Cover is equiped with lock.
3. Both MCB/MCCB isolator are workable and din rail arrangement will be customized accordingly.
4. All plastic parts are without specific flame retardant and qualified to pass incandescent wire test at 650℃.
5. Pastic can be customized to flame retardant (grade V1~V0 depends on material choosed).
6. Both surface mount and flush mount available.
Quality Assurance
1. national CCC certification standard
2. The plate thickness meets the national standard without error
3. All brand-new high-quality materials
4. The protection level reaches IP40
Plastic parts test result
1. Incandescent wire test at 650℃.
2. Anti-UV test (to reveal plastic anti-ageing performance) ≥250hrs.
3. Xenon arc lamp test ≥250hrs.
4. Hinge operation test ≥10,000 times no break.
Specifications of M9 series, Flush
| Model | Way | Cover size | Box size |
Terminals |
Knockouts | ||
| L*H*T (mm) | L*W*D*T(mm) | size(mm) | PE | N | one side qty | ||

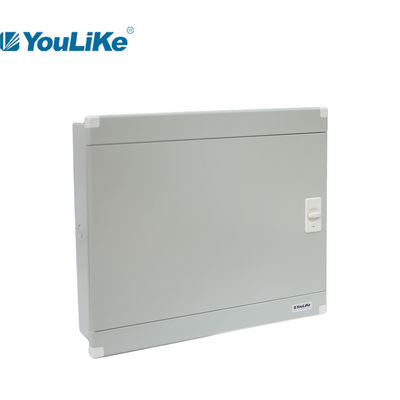

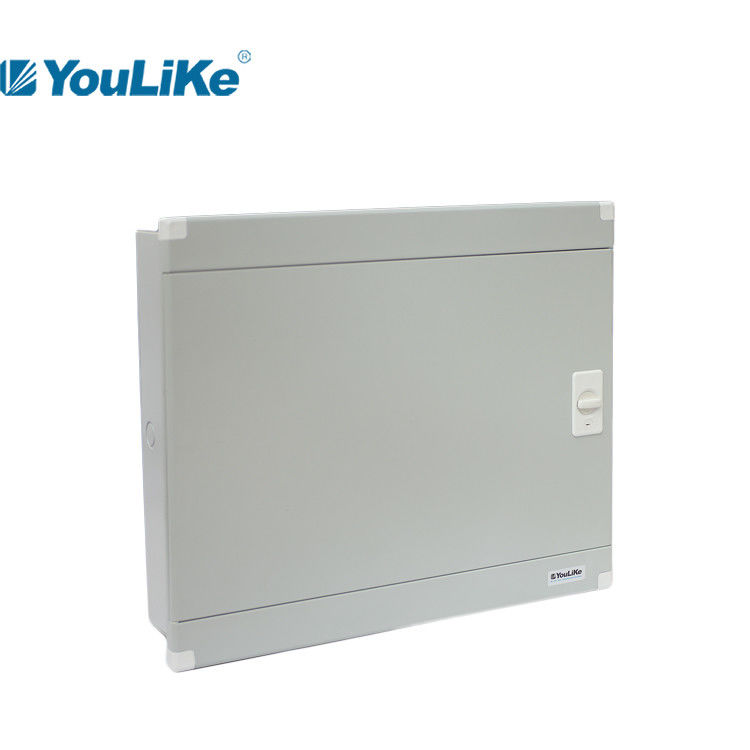

| M9-A 236 | 36way | 492*520*23(45) | 452*490*140*1.2 | 5*15 | 17 | 19 | 18 |
| M9-A 248 | 48way | 600*520*23(45) | 560*490*140*1.2 | 5*15 | 23 | 31 | 24 |
| M9-A 354 | 54way | 492*690*23(45) | 452*660*140*1.2 | 5*15 | 23 | 19 | 18 |
| M9-A 372 | 72way | 600*690*23(45) | 560*660*140*1.2 | 5*15 | 23 | 31 | 24 |
Specifications of M9 series, Surface
| Model | Way | Cover size | Box size | Terminals | Knockouts | ||
| L*H*T (mm) | L*W*D*T(mm) | size(mm) | PE | N | one side qty | ||

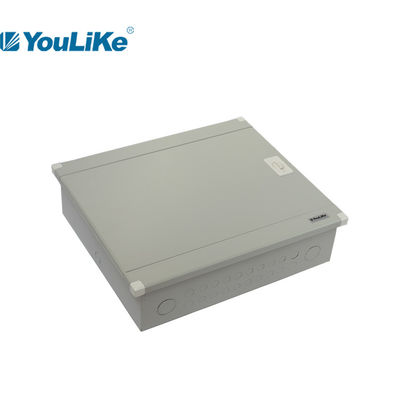

| M9-M 236 | 36way | 492*520*23(45) | 492*520*149*1.2 | 5*15 | 17 | 19 | 18 |
| M9-M 248 | 48way | 600*520*23(45) | 600*520*149*1.2 | 5*15 | 23 | 31 | 24 |
| M9-M 354 | 54way | 492*690*23(45) | 492*690*149*1.2 | 5*15 | 23 | 19 | 18 |
| M9-M 372 | 72way | 600*690*23(45) | 600*690*149*1.2 | 5*15 | 23 | 31 | 24 |
Product Details Demonstration

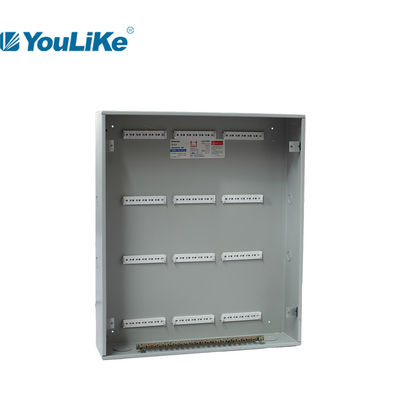

#1. Din rail to be galvanized steel, with horizontal & vertical adjustment funtion.
#2. Brass terminals (1pcs earthing & 1pcs neutral) is with 57.5% composition.
#3. Stainless earthing bolts with warning label.
#4. Din rail will be change accordingly depends on MCB or MCCB isolator.
Application
M9 series is used for indoor power distribution mainly for commercial buildings like shopping mall, villa and etc.
1. Din rail to be galvanized steel, with horizontal & vertical adjustment funtion.
2. Brass terminals (1pcs earthing & 1pcs neutral) is with 57.5% composition.
3. Stainless earthing bolts with warning label.
4. Din rail will be change accordingly depends on MCB or MCCB isolator.
Packing
| Model | Carton size | Volume/ctn | Pcs/ctn | Calculated weight(kgs/ctn) | |
| mm | m³ | net weight | gross weight | ||
| M9-236 | 595*565*245 | 0.0824 | 1 | 9.58 | |
| M9-248 | 595*675*245 | 0.0984 | 1 | 14.66 | |
| M9-354 | 765*565*245 | 0.1059 | 1 | 17.10 | |
| M9-372 | 765*675*245 | 0.1266 | 1 | 9.25 | |
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no additional charge.
