Product Details:
|
| Item Name: | 32 Way MCB Distribution Box | Material: | Powder Coated Steel For Body ,HIPS For Cover |
|---|---|---|---|
| Way Dimension: | 18mm | Protection Level: | IP40 |
| Rated Frequency: | 50-60HZ | Terminal Dimension: | 6x10.4mm |
| Certificates: | CE,CCC | Application: | Indoor /outdoor |
| High Light: | 2 Phase Waterproof MCB Box,IP40 waterproof mcb box,IP40 mcb box for home |
||

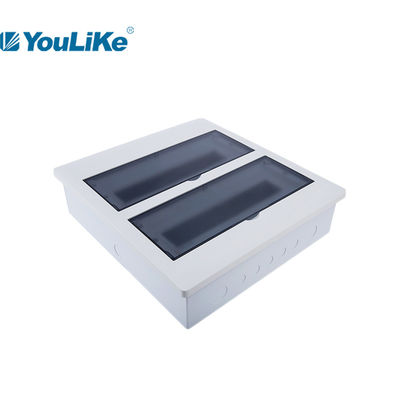

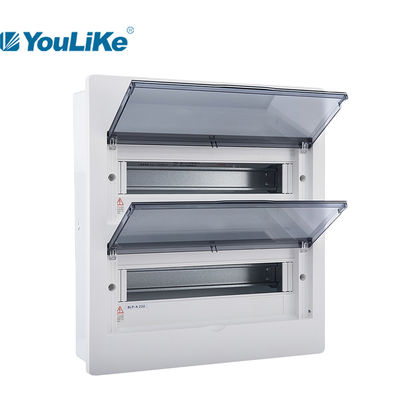

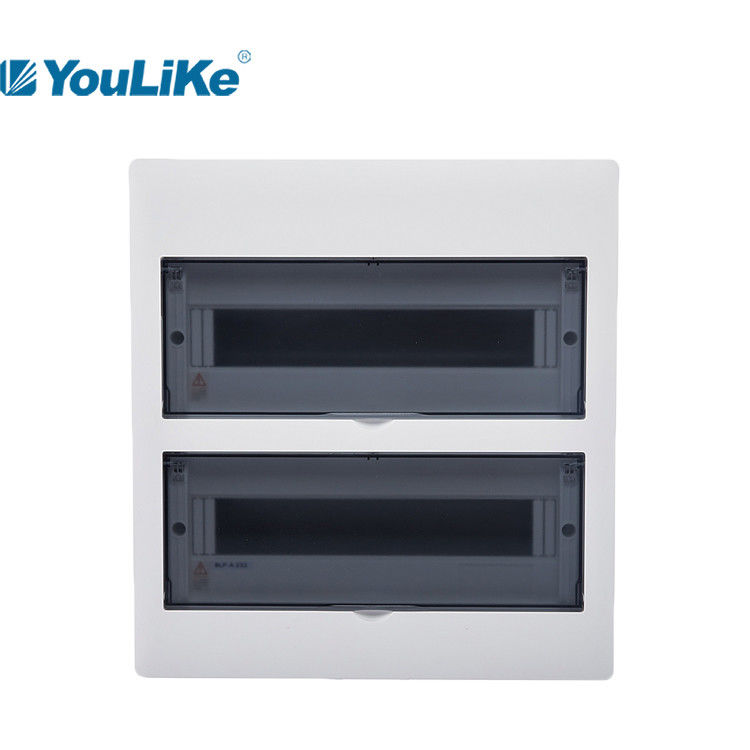

Single Phase Db Box 32 Way Electrical Distribution Box Circuit Breaker Indoor
Product Specification
1. Base box to be powder coated steel, 0.8mm for 1rows, 1.0mm for 2rows.
2. Cover frame to be HIPS material.
4. All plastic parts are without specific flame retardant and qualified to pass incandescent wire test at 650℃.
5. Pastic can be customized to flame retardant (grade V1~V0 depends on material choosed).
6. The protection level reaches IP40
Plastic Parts Test Result
1. Incandescent wire test at 650℃.
2. Anti-UV test (to reveal plastic anti-ageing performance) ≥250hrs.
3. Xenon arc lamp test ≥250hrs.
4. Hinge operation test ≥10,000 times no break.
| Series | BLP-A-232 |
| Color | white |
| Base Box Size | 354*380*90*1.0mm |
| Cover Size | 375*405*17.5(28.3)mm |
| Accessories | bolt, din rail, terminal |
| Application | electrical distribution box |
| OEM | offered |
| Package | in color box or neutral carton |
| Certificate | CCC.CE |
Specifications of BL series, Flush
| Model | Way | Cover size | Box size |
Terminals |
Knockouts | ||
| L*H*T (mm) | L*W*D*T(mm) | size(mm) | PE | N | one side qty | ||
| BLP-A 110 | 10way | 268*210*17.5(26) | 246*192*80*0.8 | 6*10.4 | 6 | 5 | 5 |
| BLP-A 113 | 13way | 322*210*17.5(26) | 300*192*80*0.8 | 6*10.4 | 6 | 5 | 6 |
| BLP-A 116 | 16way | 376*210*17.5(26) | 354*192*80*0.8 | 6*10.4 | 8 | 7 | 7 |
| BLP-A 118 | 18way | 412*210*17.5(26) | 390*192*80*0.8 | 6*10.4 | 11 | 10 | 8 |
| BLP-A 121 | 21way | 466*210*17.5(26) | 444*192*80*0.8 | 6*10.4 | 11 | 10 | 10 |
| BLP-A 124 | 24way | 520*250*17.5(26.5) | 498*230*90*1.0 | 6*10.4 | 11 | 10 | 8 |
| BLP-A 226 | 26way | 322*405*17.5(28.3) | 300*380*90*1.0 | 6*10.4 | 13 | 12 | 6 |
| BLP-A 232 | 32way | 375*405*17.5(28.3) | 354*380*90*1.0 | 6*10.4 | 13 | 12 | 7 |
| BLP-A 242 | 42way | 466*405*17.5(28.3) | 444*380*90*1.0 | 6*10.4 | 18 | 15 | 10 |
