Product Details:
|
| Product Name: | Multimedia Junction Box | Cover Material: | HIPS |
|---|---|---|---|
| Rated Voltage: | 220V+/-20% | Rated Current: | 55A/ 63A |
| Protection Level: | IP30 | Mounting Type: | Flush |
| Working Temperatute: | -20~60℃ | Door Open Angle: | 180° |
| High Light: | IP30 electrical junction box,220v electrical junction box,220v power distribution box |
||
Fiber Optical Metal Multimedia Terminal Box MCB Distribution Board Price List Junction Box
Product description
1. The upgraded version of embedded installation type, with heat dissipation design cover, and can be provided in 4 different sizes. The box is powder coated steel and the cover is HIPS.
2. Optional accessories include TV splitter, telephone splitter, Internet splitter, router, modem and power adapter.
Product Advantage
1. Select the copper bar with 60% content, which can not crack and slide the wire continuously, and the conductivity is smooth Add line cards to better standardize wiring.
2. The grounding screw is made of stainless steel, which is safe and reliable.
3. All panels are made of brand-new materials, durable and beautiful.
4. The new hinge structure makes users safer.
5. The box mouth adopts double bending design to facilitate cleaning and protect the safety of devices.
Company profile
1. Founded in 2005, it specializes in the production, R & D and sales of indoor distribution box, multi-media box and power cabinet
2. The product design takes safety as the core concept, and has obtained 33 design patents, 20 utility model patents and 2 invention patents
3. It has served 1350 leading real estate companies and 1600 panel builder
4. In 2015, the sales revenue will exceed 100 million, and the annual box sales volume will reach 3 million pieces
5. After 16 years of development and customer support, it has also gained a certain reputation
Specification
| Models | Cover size | Box size | Knock-outs arrangement | Modules quantity |
| (mm) | (mm) | |||
| DMT-RE |
325*420*15.5(21.5) |
300*200*100*0.8 |
2-φ26,12-φ21 |
3U |
| DMT-RA | 345*270*17.5(23.5) | 320*250*100*0.8 | 4-φ26,14-φ21 |
4U |
| DMT-RB | 375*320*17.5(23.5) | 350*300*100*0.8 | 4-φ26,16-φ21 |
4U |
| DMT-RC | 425*320*20.0(28.0) | 400*300*100*0.8 | 4-φ26,20-φ21 |
4U |
Application
Used for apartment network distribution, can be assembled with routers, modem, TV spliter, telephone spliter, to distribut signal to different rooms. Wireless devices can be applicable also.

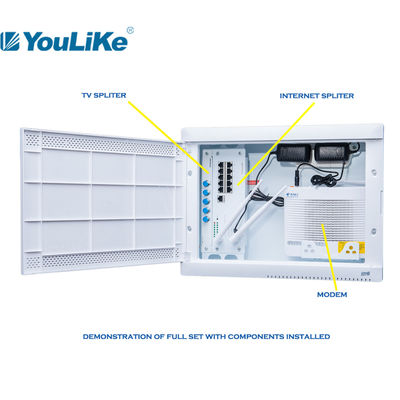

Product demonstration
Packing
| Model | Carton size | Volume/ctn | Pcs/ctn | Calculated weight(kgs/ctn) | |
| mm | m³ | net weight | gross weight | ||
| DMT-RE | 385*150*290 | 0.017 | 1 | ||
| DMT-RA | 405*170*340 | 0.024 | 1 | ||
| DMT-RB | 440*170*390 | 0.030 | 1 | ||
| DMT-RC | 485*170*390 | 0.033 | 1 | ||
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no additional charge.
