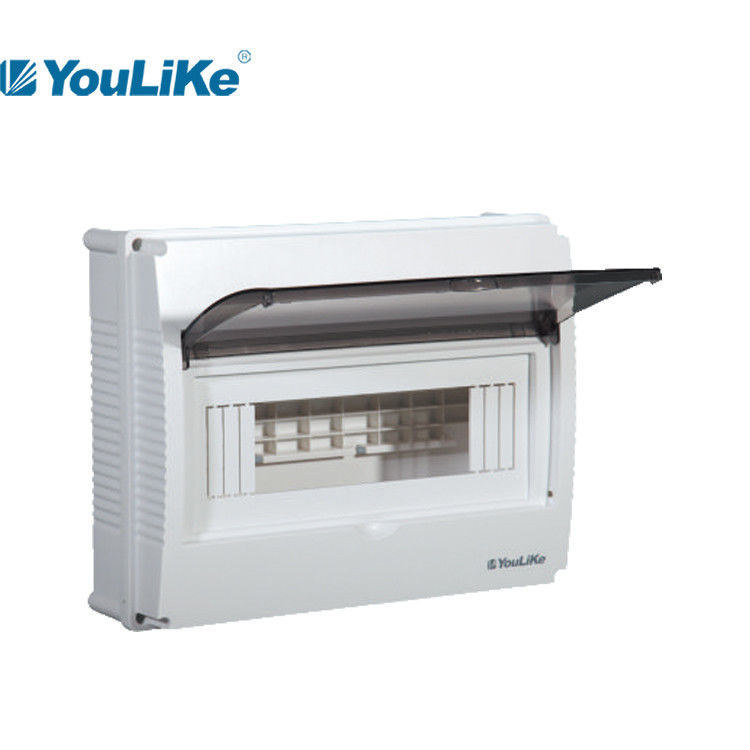

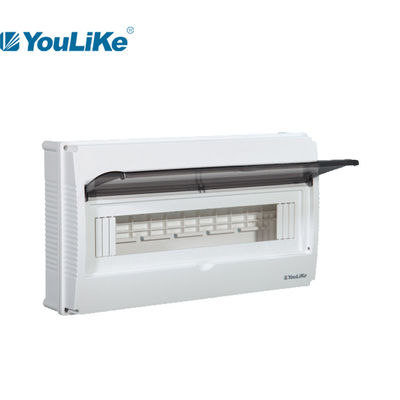

Product Details:
|
| Product Name: | 10 Way Power Distribution Box | Box Material: | HIPS/PC |
|---|---|---|---|
| Cover Frame Material: | HIPS/PC | Door Material: | AS/PC |
| Rated Voltage: | 400V+/-20% | Rated Current: | 55A/ 63A |
| Protection Level: | IP40 | Way Dimension: | 18mm |
| Mounting: | Surface | ||
| High Light: | Surface Mount MCB Distribution Box,IP40 MCB Distribution Box,IP40 plastic distribution box |
||
Product Characteristics
1. Box to be available for both HIPS and PC material.
2. Cover frame to be available for both HIPS and PC material.
3. Door to be available for both AS and PC material, both to be transparent.
4. All plastic parts are without specific flame retardant and qualified to pass incandescent wire test at 650℃.
5. Pastic can be customized to flame retardant (grade V1~V0 depends on material choosed).
Plastic parts test result
1. Incandescent wire test at 650℃.
2. Anti-UV test (to reveal plastic anti-ageing performance) ≥250hrs.
3. Xenon arc lamp test ≥250hrs.
4. Hinge operation test ≥10,000 times no break.
Product Details Demonstration
Plastic din rail Brass terminals Cover assemble
Specification
| Models | Cover size | Box size | Terminal |
Knock-outs (one side) |
||
| L*W*T(mm) | L*W*D(mm) | size(mm) | PE qty | N qty | ||
| DS-M 110 | 248*200*42.5 | 248*200*45 | 6*9 | 6 | 6 |
2-Ø26, 1-56*21 |
| DS-M 113 | 302*200*42.5 | 302*200*45 | 6*9 | 6 | 6 |
2-Ø26, 2-Ø21,1-64*21 |
| DS-M 116 | 356*200*42.5 | 356*200*45 | 6*9 | 8 | 8 | 2-Ø26, 2-Ø21,1-100*21 |
Packing
| Model | Carton size | Volume/ctn | Pcs/ctn | Calculated weight(kgs/ctn) | |
| mm | m³ | net weight | gross weight | ||
| DS-M 110 | 480*220*530 | 0.0056 | 10 | ||
| DS-M 113 | 480*320*430 | 0.0066 | 10 | ||
| DS-M 116 | 480*375*430 | 0.0078 | 10 | ||
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no additional charge.
